Trim section and switch-panel trim, removing

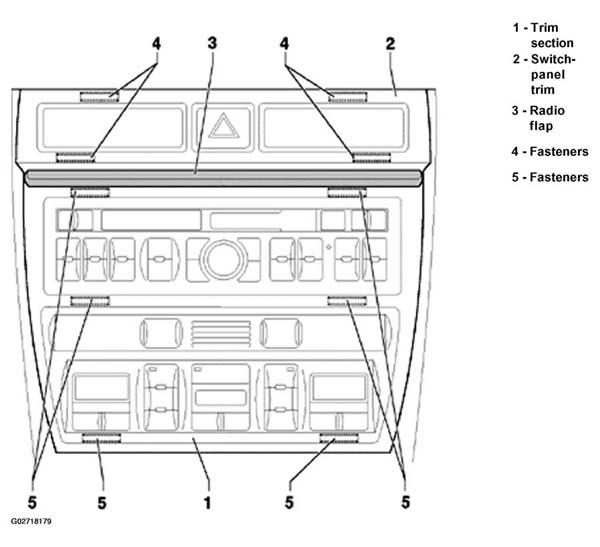

The following list pertains to Fig 1 .
- Trim section
- Open radio flap -3-.
- Open front ashtray.
- Starting at bottom, carefully unclip trim section -1-at fasteners -5- (6x).
- Switch- panel trim
- Starting at bottom, carefully unclip switch-panel trim -2- at fasteners -4- (4x)
- Radio flap
- Fasteners
- Fasteners
