A - Changing adaptation value using sliding bar:

Display on VAS 5051:

Fig 1: VAS 5051 Tester Display - Changing Adaptation Value Using Sliding Bar (Instrument Cluster) (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

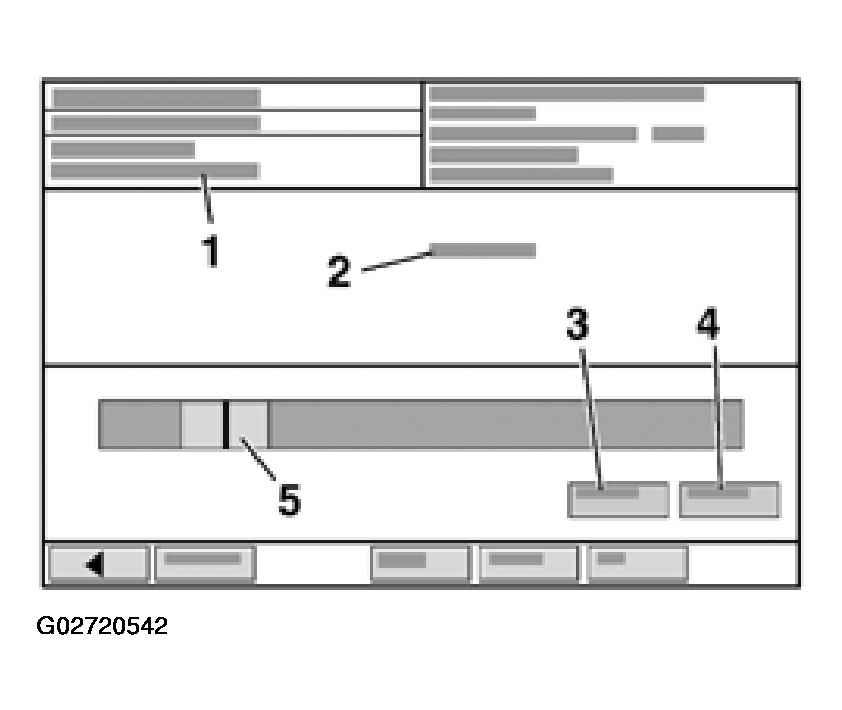

Move sliding bar -5- into desired direction or press on the surface beside the sliding bar, to move it in the desired direction.
Press "Save" button -4-.

NOTE: If the "Save" button is not indicated on display, only a direct input via the keypad is possible. See B - Change adaptation value via direct input: .

Display on VAS 5051:

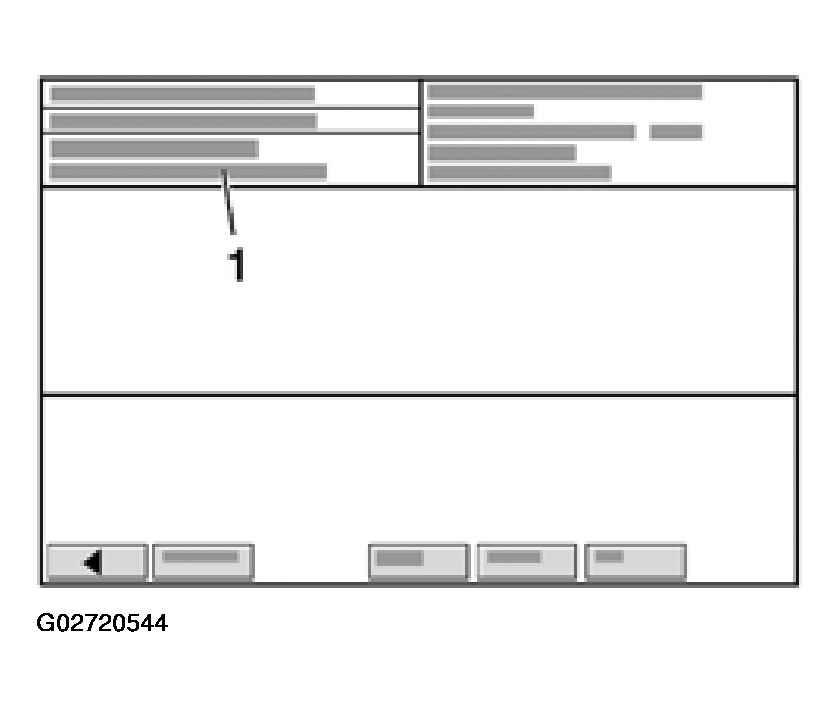

Fig 2: VAS 5051 Tester Display - Changing Adaptation Value Using Sliding Bar (Instrument Cluster) (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1 - Channel X save
2 - Text display of selected channel or No indication
4 - original value X new value X

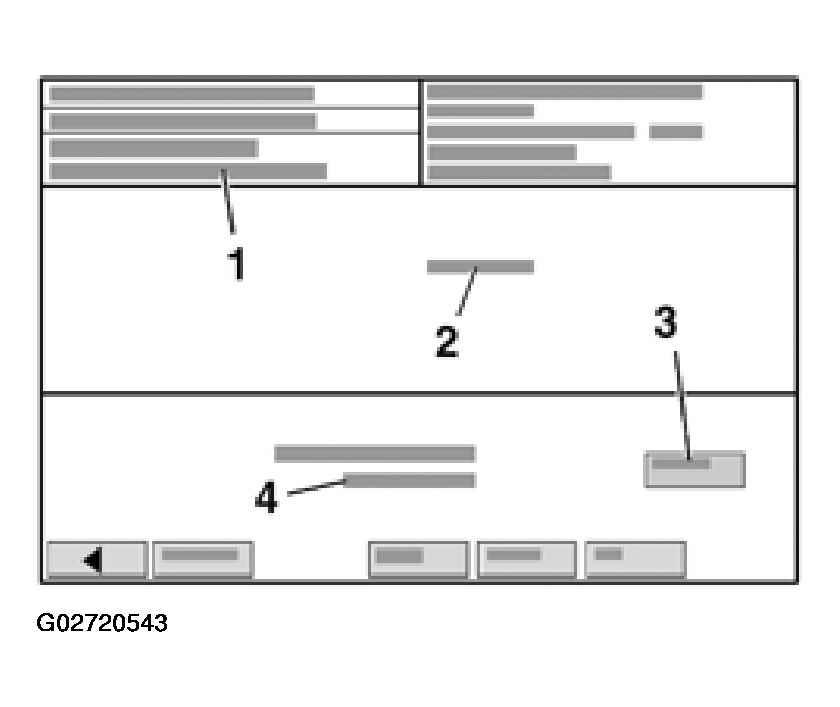

Confirm new adaptation value by pressing the "take over" button -3-.

Display on VAS 5051:

Fig 3: VAS 5051 Tester Display - Changing Adaptation Value Using Sliding Bar (Instrument Cluster) (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Channel X Value X stored

End function "10 - Adaptation" by pressing <-- button.
