DTC table for tire pressure monitoring system

NOTE:

All the possible errors which can be detected and printed-out on the VAG1551 are listed below by their 5-digit malfunction code.
The malfunction code appears only on the print-out.
Before replacing components indicated as malfunctioning, firstly check the leads and connectors for these components and the connections to Ground (GND), using the circuit diagram.
After completion of repair and function checking of the system, the DTC memory must always be checked again and cleared using scan tool VAG1551.
All static and sporadic malfunctions are stored in the DTC memory. A malfunction is classified as static if it occurs for not less than 2 seconds. If the malfunction is then no longer present, it is stored as a "sporadic" malfunction. "ISP" appears on the display.
All malfunctions present are set to "sporadic" when the ignition is switched on and only stored as "static malfunctions" if they are still present after the check.
A sporadic malfunction is erased if it no longer occurs after 50 driving cycles (ignition on for not less than 5 minutes, speed > 30 km/h).

Fig 1: Tire Pressure Monitoring System DTC Diagnostic Chart (00668 & 01312)

Courtesy of AUDI OF AMERICA, INC.

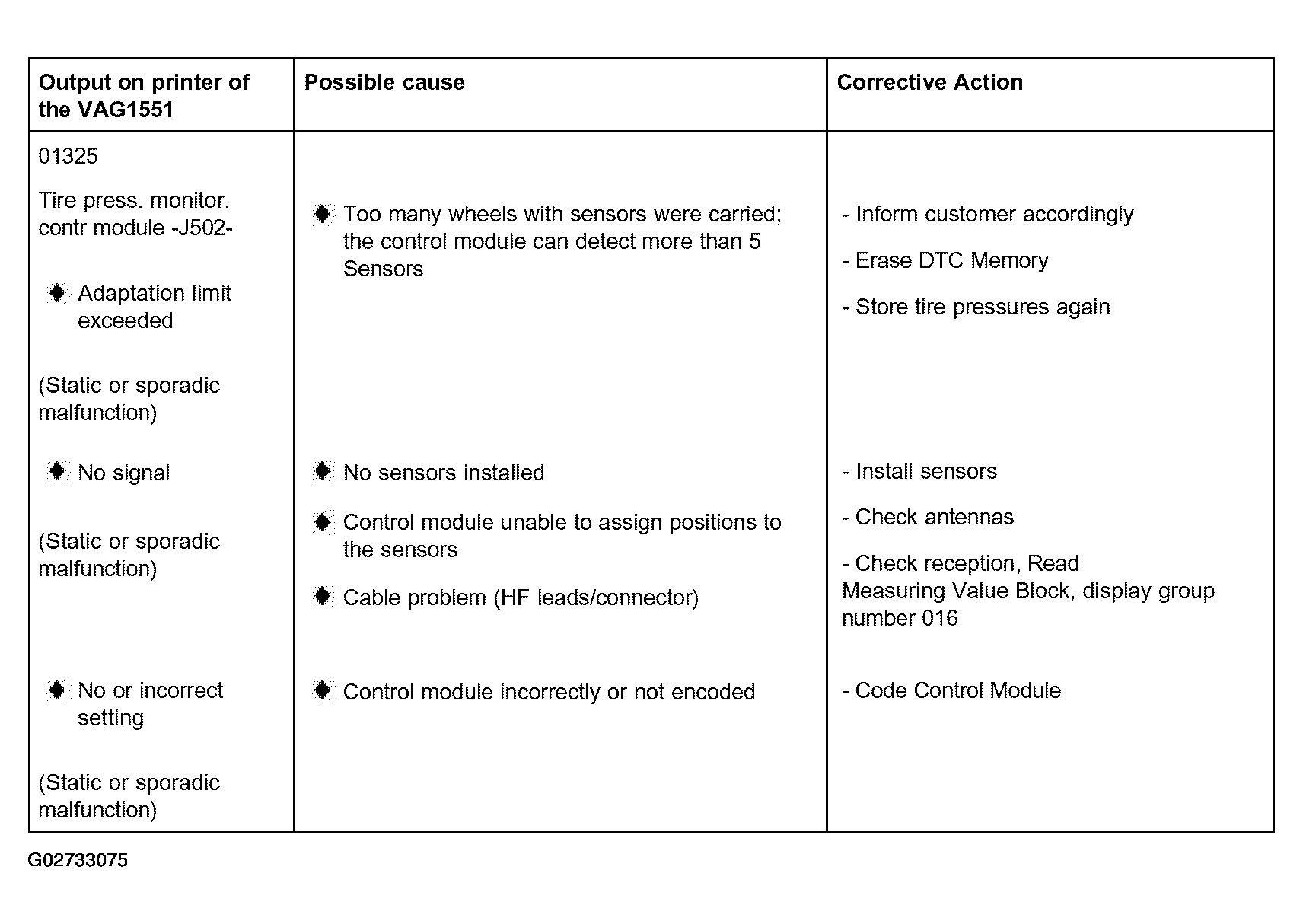

Fig 2: Tire Pressure Monitoring System DTC Diagnostic Chart (01325)

Courtesy of AUDI OF AMERICA, INC.

To check reception, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 016.
To code control module, see CODE CONTROL MODULE (FUNCTION 07) .

Fig 3: Tire Pressure Monitoring System DTC Diagnostic Chart (01330 & 01336)

Courtesy of AUDI OF AMERICA, INC.

Fig 4: Tire Pressure Monitoring System DTC Diagnostic Chart (01467)

Courtesy of AUDI OF AMERICA, INC.

To check sensor transmission, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 001 or 016.
To replace sensor, see TIRE PRESSURE CONTROL SYSTEM .

Fig 5: Tire Pressure Monitoring System DTC Diagnostic Chart (01468)

Courtesy of AUDI OF AMERICA, INC.

To check sensor transmission, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 004 or 016.
To replace sensor, see TIRE PRESSURE CONTROL SYSTEM .

Fig 6: Tire Pressure Monitoring System DTC Diagnostic Chart (01469)

Courtesy of AUDI OF AMERICA, INC.

To check sensor transmission, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 007 or 016.
To replace sensor, see TIRE PRESSURE CONTROL SYSTEM .

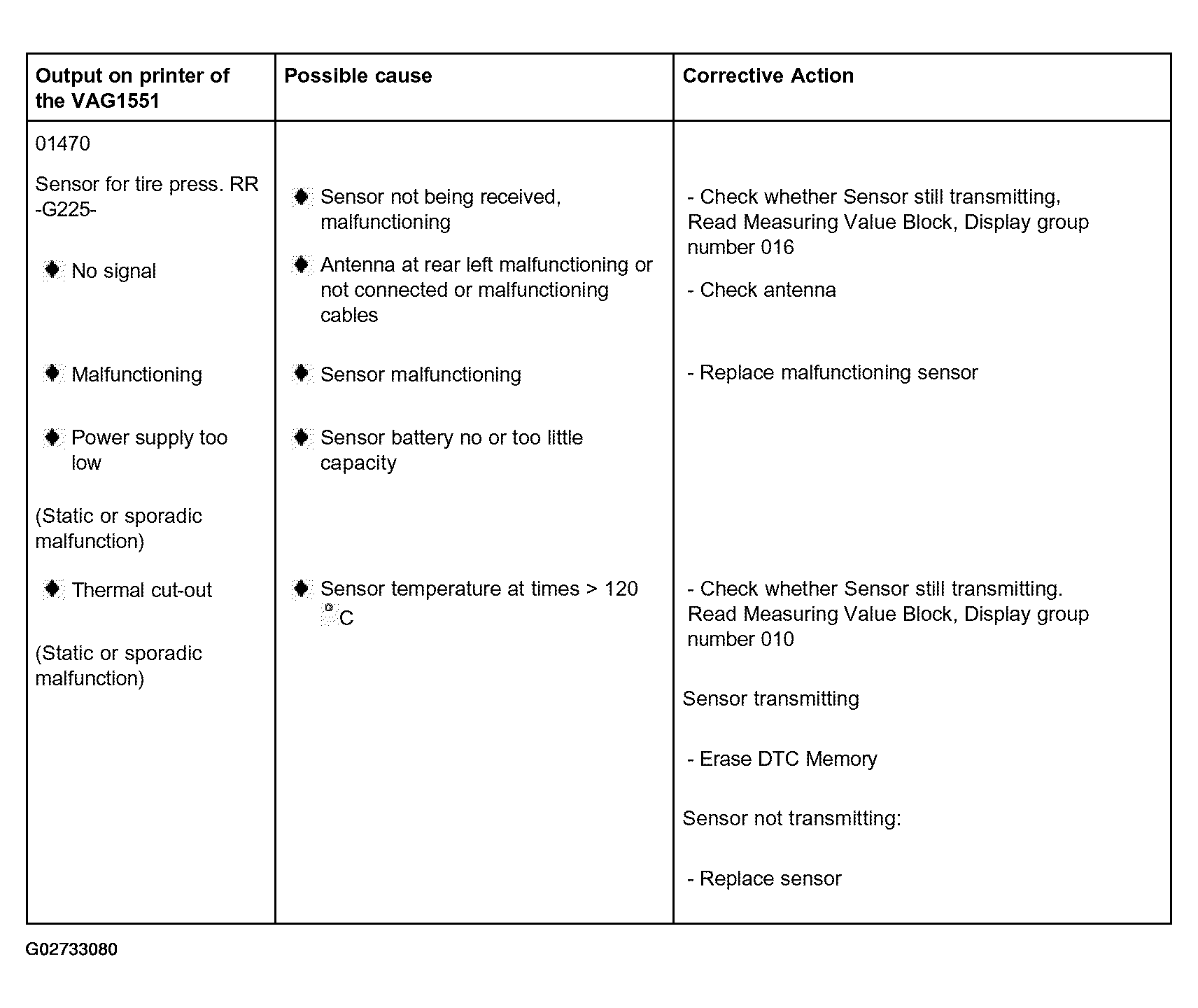

Fig 7: Tire Pressure Monitoring System DTC Diagnostic Chart (01470)

Courtesy of AUDI OF AMERICA, INC.

To check sensor transmission, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 010 or 016.
To replace sensor, see TIRE PRESSURE CONTROL SYSTEM .

Fig 8: Tire Pressure Monitoring System DTC Diagnostic Chart (01472, 01473 & 01474)

Courtesy of AUDI OF AMERICA, INC.

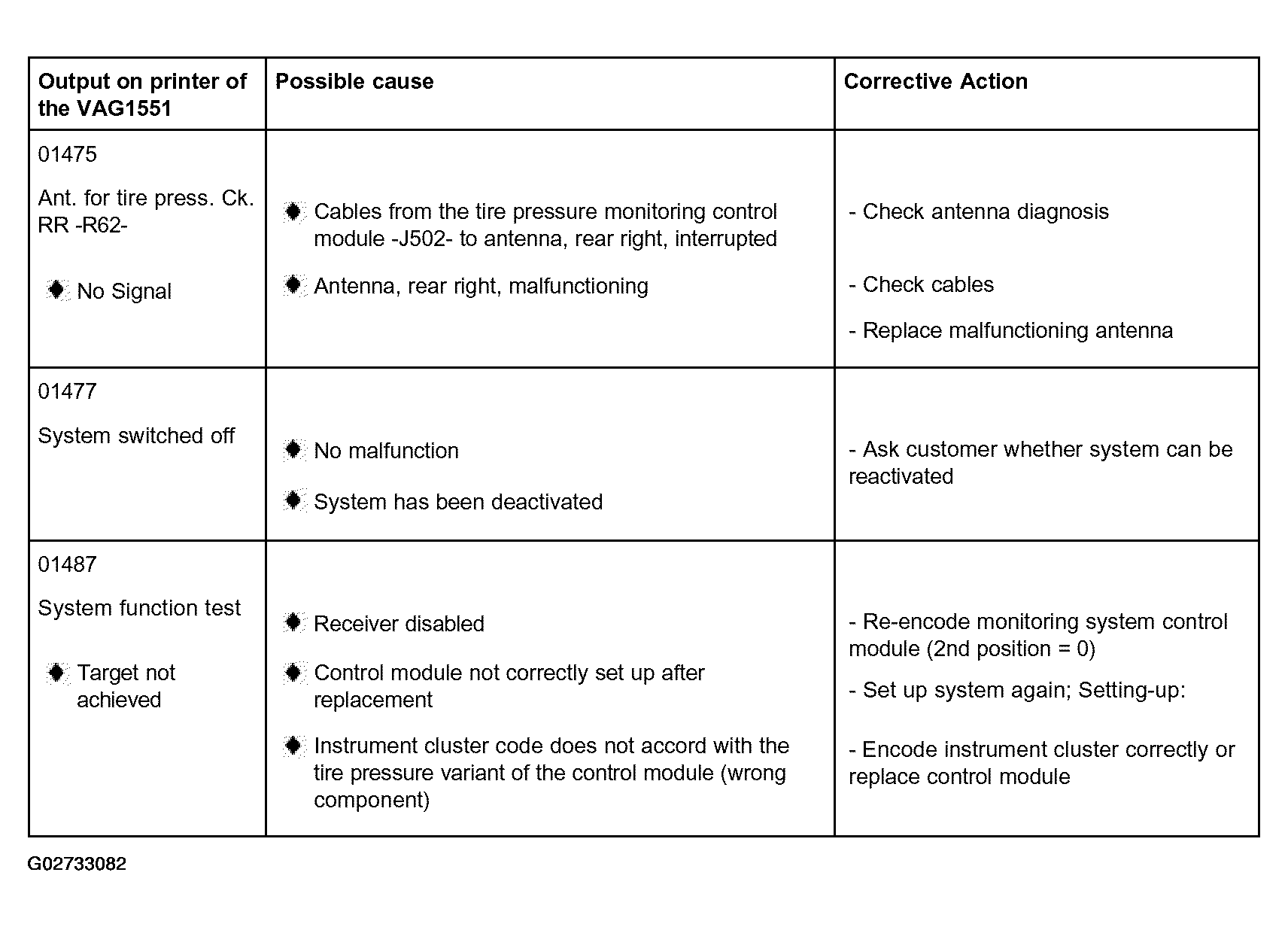

Fig 9: Tire Pressure Monitoring System DTC Diagnostic Chart (01475)

Courtesy of AUDI OF AMERICA, INC.

To diagnose antenna, see MEASURED VALUE BLOCK 021 .
To replace antenna, see TIRE PRESSURE CONTROL SYSTEM .
To encode control module, see CODE CONTROL MODULE (FUNCTION 07) .
To set up tire pressure monitoring system, see TIRE PRESSURE MONITORING SYSTEM, SETTING UP .

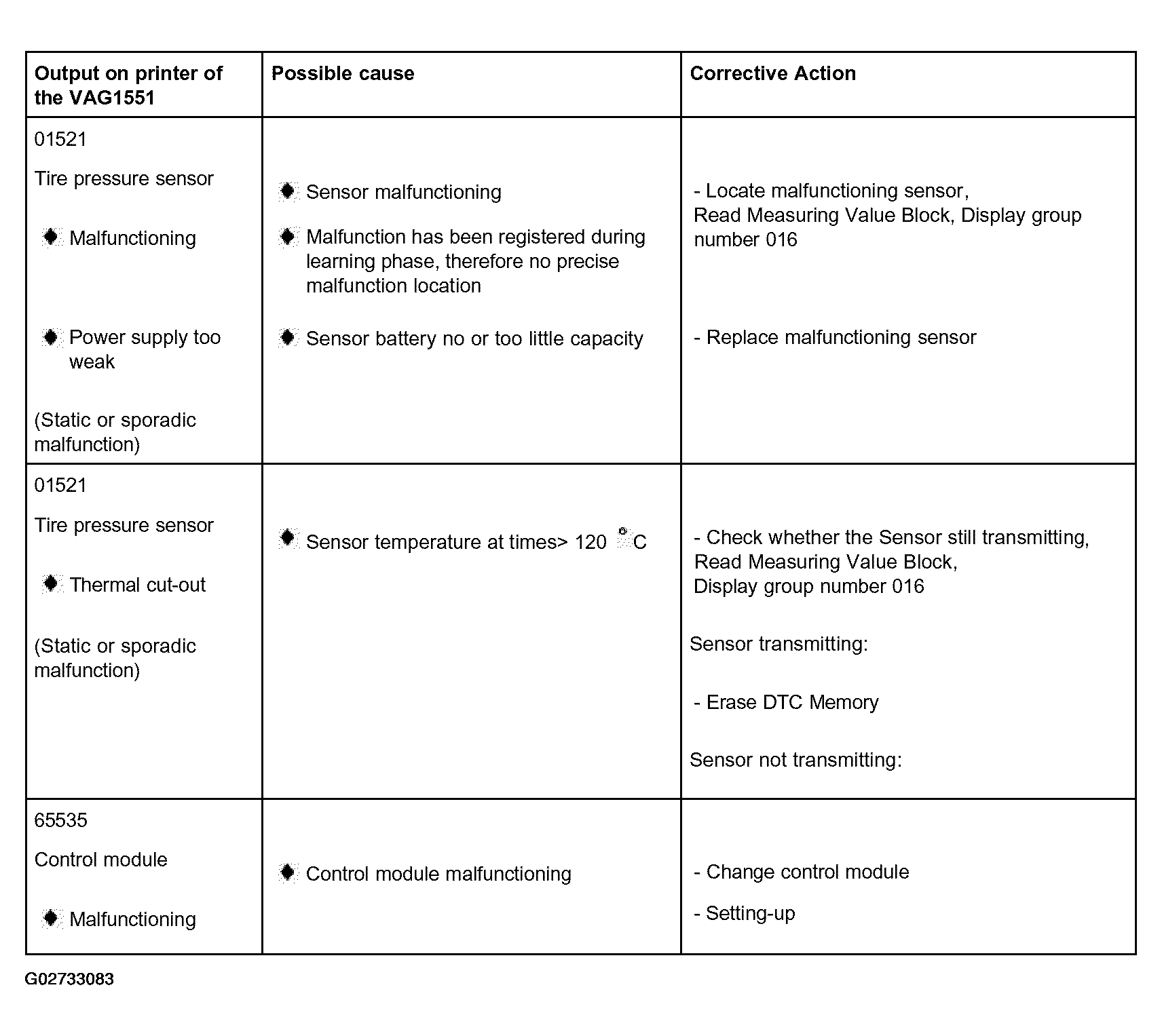

Fig 10: Tire Pressure Monitoring System DTC Diagnostic Chart (01521 & 65535)

Courtesy of AUDI OF AMERICA, INC.

To check sensor transmission, see PERFORM "READ MEASURING VALUE BLOCK" , display group number 016.
To replace sensor, see TIRE PRESSURE CONTROL SYSTEM .
To set up tire pressure monitoring system, see TIRE PRESSURE MONITORING SYSTEM, SETTING UP .
