Torsen housing, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

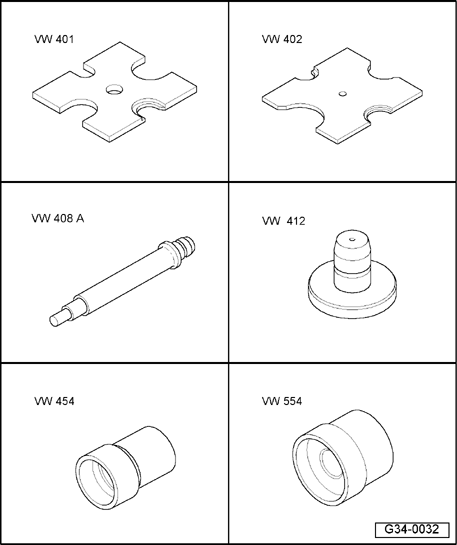

Special tools, testers and auxiliary items required
- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 408 A
- Punch VW 412
- Thrust plate VW 454
- Thrust plate VW 554
Special tools, testers and auxiliary items required
- Punch 2005
- Thrust plate 2050
- Seal driver-frt wheel bearing 30 - 100
- Torque wrench V.A.G 1331
- Pulling hook T20143
- Thrust plate T40106
- Adjustment shim 016 311 391 A
- Thread locking compound AMV 185 101 A1
- Sealing grease G 052 128 A1

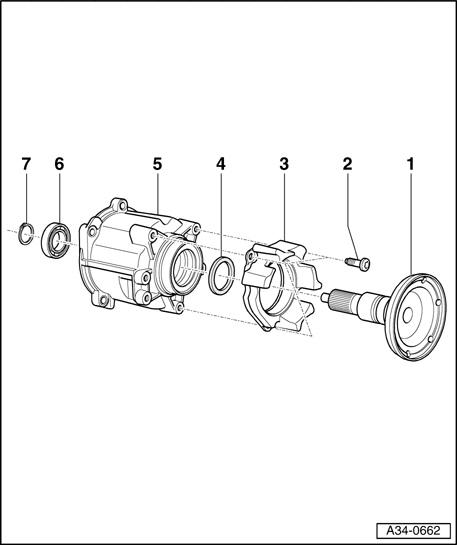

1 - Flange shaft
- Press off Press off flange shaft (torsen housing with vibration dampener) or Press off flange shaft (torsen housing without vibration dampener)
- Pressing in Pressing in flange shaft
- Change: as of serial number 42987 with groove → As of serial number 42987 - Flange shaft with nut and sealing ring with additional dust lip
2 - Screw - 20 Nm plus an additional 90°
- For vibration dampener
- Qty. 3
- Self-locking
- Replace
3 - Vibration dampener
- Not present on all versions
4 - Seal
- Removing Pry off sealing ring
- Installing up to serial number 42986 Sealing ring - up to serial number 42986 - installing
- Change: as of serial number with additional dust lip Differentiation of sealing rings
- Installing as of serial number 42987 Sealing ring - as of serial number 42987 - with additional dust lip, installing
5 - Torsen housing
- Removing and installing with transmission removed → Torsen housing and torsen differential, removing and installing - assembly overview
- Removing and installing with transmission installed → 34 CONTROLS, HOUSING
6 - Ball bearing
- For flange shaft
- Pressing out Pressing out ball bearing for flange shaft
- Pressing in Pressing in ball bearing for flange shaft
7 - Circlip
