Front parking aid warning buzzer -H22- (8-channel parking aid), removing and installing: Removing
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

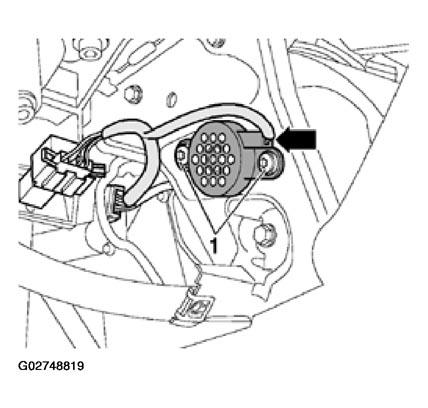

The front parking aid warning buzzer is secured to support for instrument panel in driver's side footwell.
- Remove driver's storage compartment:
See DRIVER-SIDE STORAGE COMPARTMENT (WITH AND WITHOUT KNEE BOLSTER), ASSEMBLY OVERVIEW .
- Unplug connector -arrow-.
- Unscrew bolts -1-.
- Detach warning buzzer.
