Driver-side storage compartment (with and without knee bolster), assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

Side cover
Bolt
- Tightening torque: 9 Nm.
Bolt
- Tightening torque: 9 Nm.
Left support
- Only for vehicles with knee bolster
Bolts (2x)
- Tightening torque: 9 Nm.
Bolt
- Tightening torque: 9 Nm.
Right support
- Only for vehicles with knee bolster
Bolts (2x)
- Tightening torque: 9 Nm.
Driver-side storage compartment
- Removing
  - Remove side cover -2-, see PULLING OFF RIGHT COVER ON INSTRUMENT PANEL .
  - Remove bolts -2- and -8-.
  - Push upper storage compartment on instrument panel to the rear and remove.
  - Unclip diagnostic connector.
  - Remove electrical harness connector at footwell illumination and, if necessary, remove additional loudspeaker.
- Installing
  - First engage driver-side storage compartment on bottom edge into the guides, then clip it to instrument panel above.

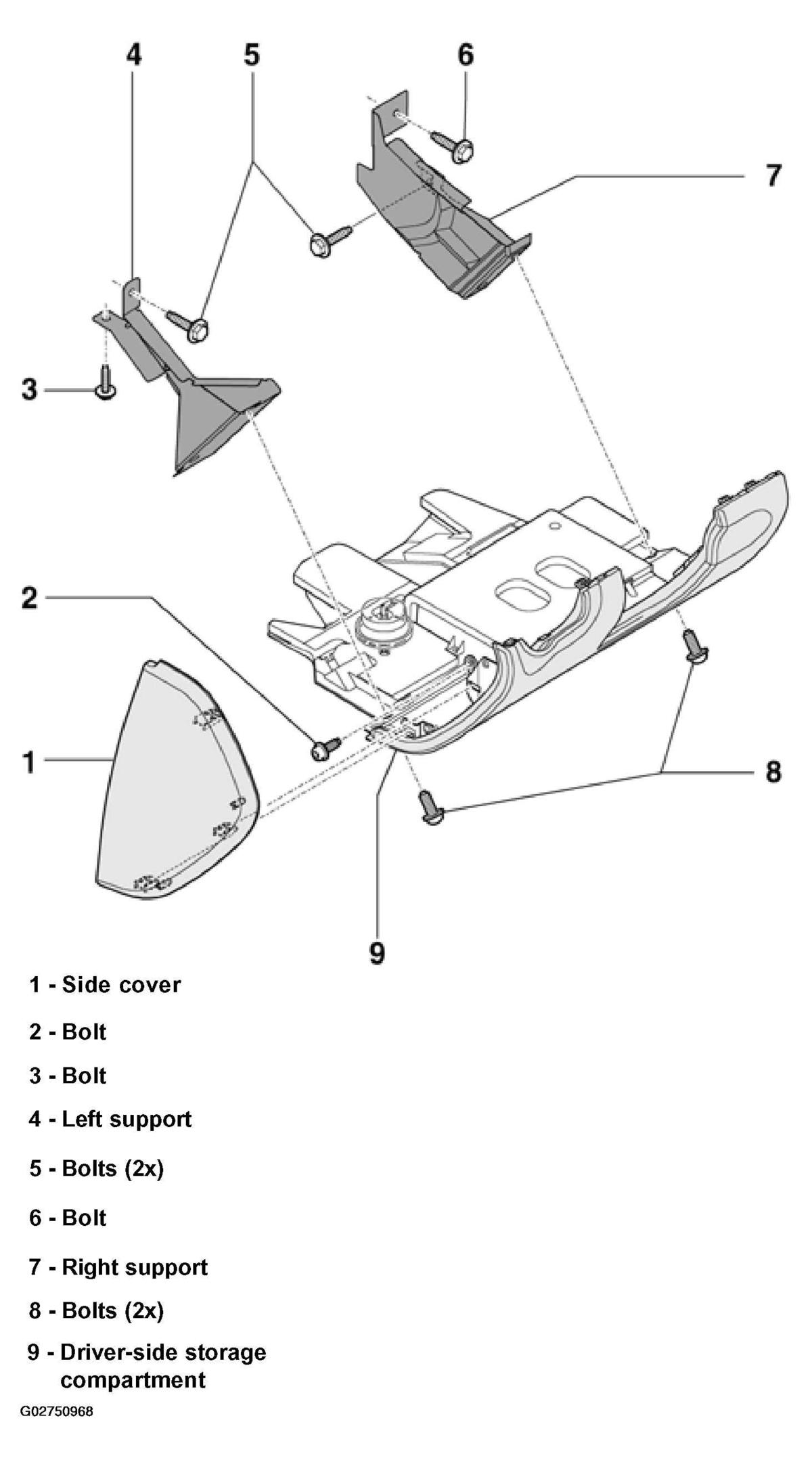

Fig 1: Identifying Driver-Side Storage Compartment Assembly Overview

Courtesy of AUDI OF AMERICA, INC.

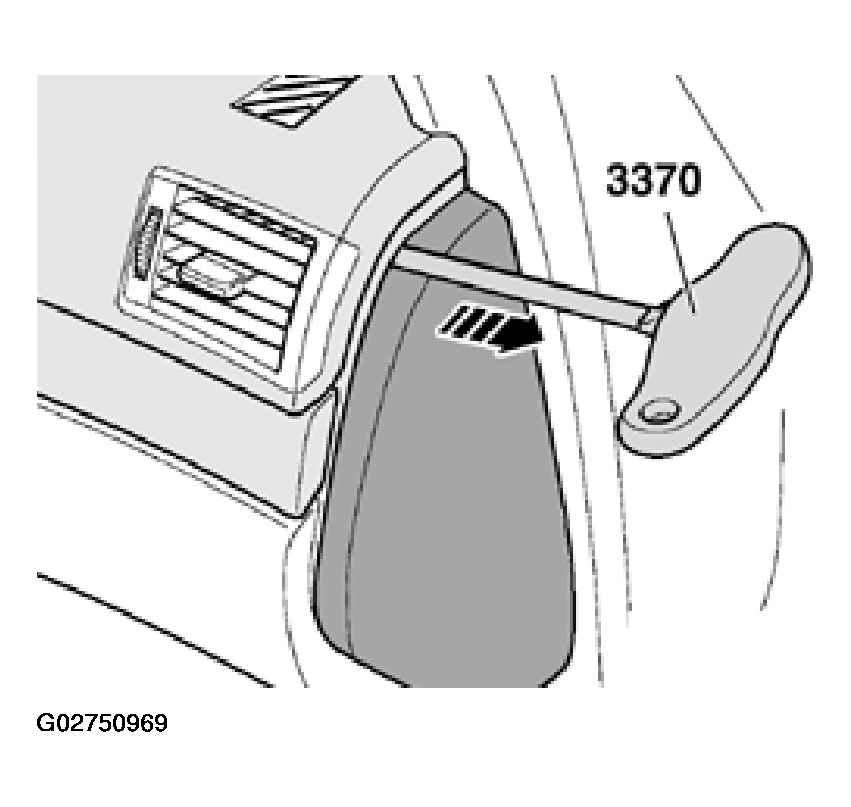

Pull off right cover on instrument panel -arrow- using special tool 3370.

Fig 2: Pulling Off Right Cover On Instrument Panel -Arrow- Using Special Tool 3370

Courtesy of AUDI OF AMERICA, INC.

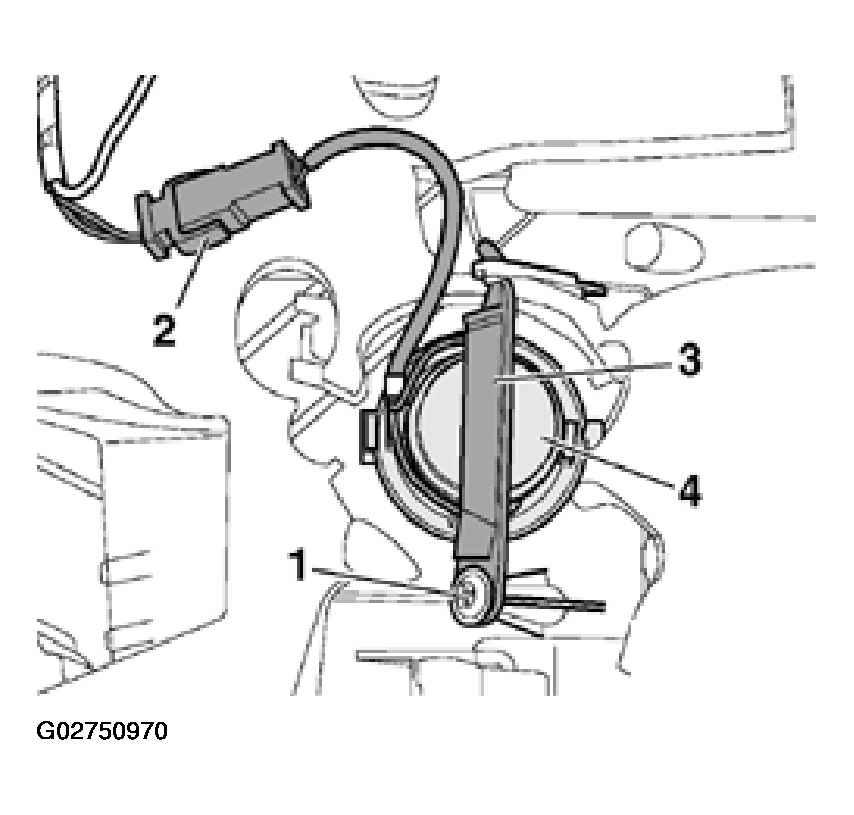

Disconnect electrical harness connector -2-.
Remove bolt -1- and remove angle bracket -3- and additional speaker -4-.

Fig 3: Removing Bolt And Angle Bracket And Additional Speaker

Courtesy of AUDI OF AMERICA, INC.
