Control module for parking aid -J446-, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Location: At rear left of luggage compartment rear panel, below rear light.

Remove left luggage compartment side trim.
See LUGGAGE COMPARTMENT SIDE TRIM, ASSEMBLY OVERVIEW or SIDE LUGGAGE COMPARTMENT TRIM, ASSEMBLY OVERVIEW (Avant).
Unplug connectors -1 to 3-.
Remove bolts -arrows-.

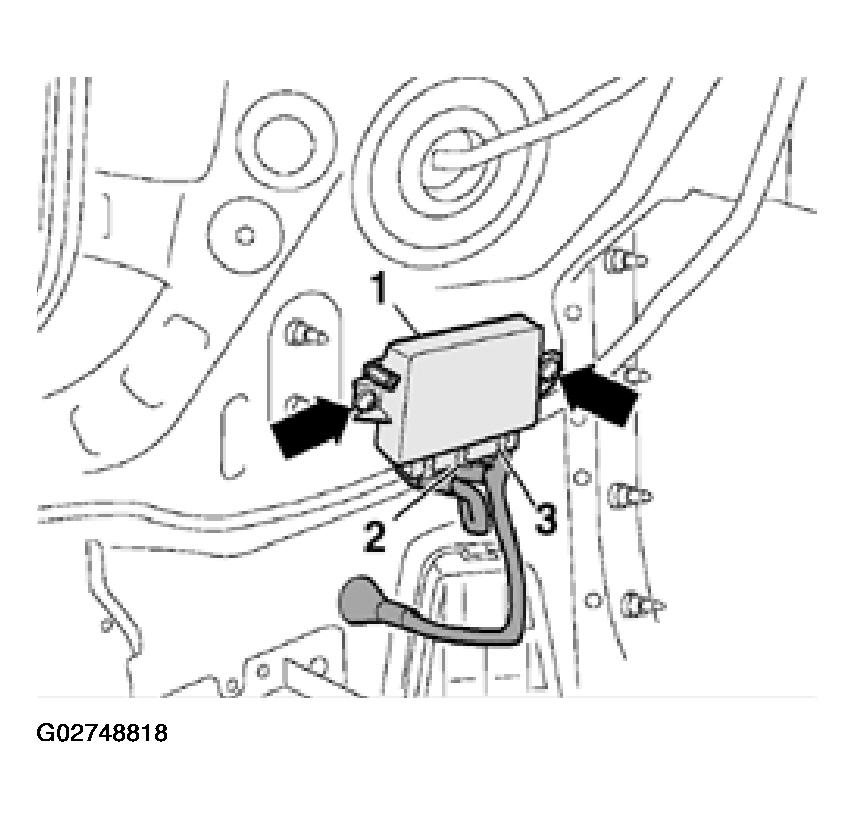

Fig 1: Unplugging Connectors & Removing Parking Aid Control Module Bolts

Courtesy of AUDI OF AMERICA, INC.

Detach Control module for parking aid.
