Dirt tray, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Dirt tray (optional)
- Removal
  - Release dirt tray -1- from lock -4-.
  - Unclip two clips -2- between dirt tray -1- and rear panel sill -3-.
  - Remove dirt tray -1- upward.
Clips (2x)
Rear panel sill
Dirt tray lock
- Removal
  - Remove bolt -5- on dirt tray handle -6-.
  - Remove securing clip -7- of handle.
  - Remove handle -6-.
  - Remove two expanding nuts -9-.
  - Unclip four clips -8-.
  - Remove dirt tray lock -4-.
Bolt
Handle
Handle securing clip
Clips (4x)
Expanding nuts (2x)

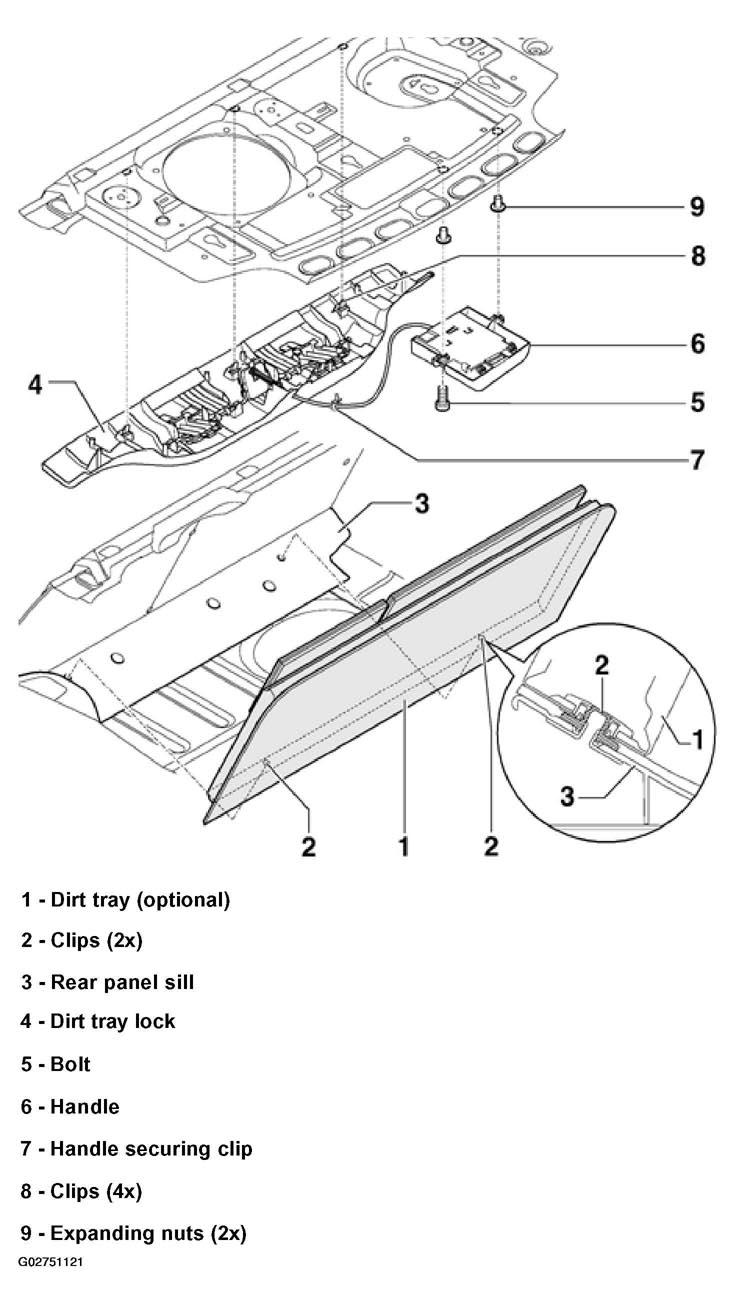

Fig 1: Identifying Dirt Tray, Assembly Overview

Courtesy of AUDI OF AMERICA, INC.
