Front wheel housing liner, assembly overview
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

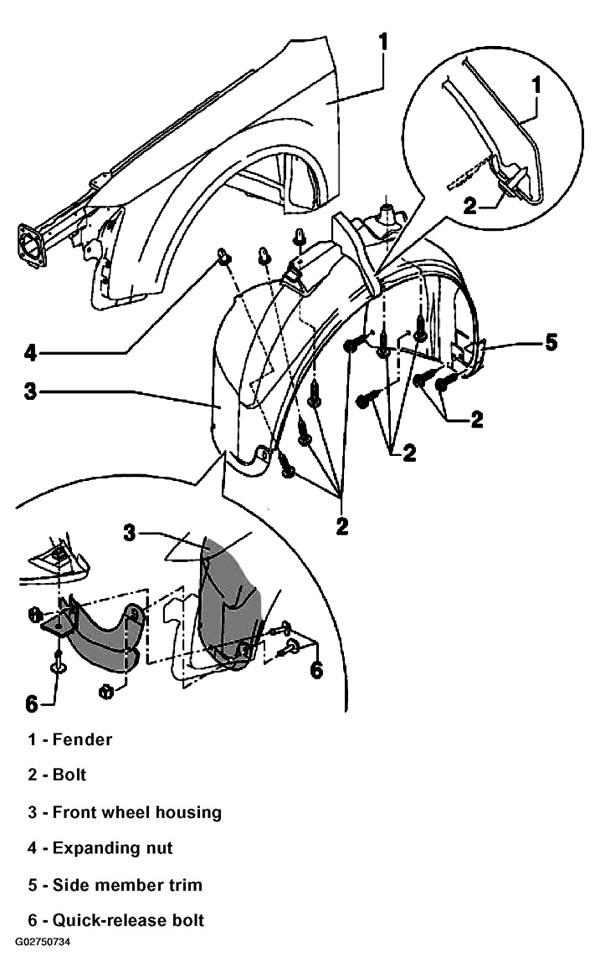

The following list pertains to Fig 1 .
- Fender
- Bolt
- 2.3 Nm
- Front wheel housing liner
- Take off front wheel before removal.
- To remove, unfasten quick-release bolts -6-.
- Remove bolts -2-.
- Disengage wheel housing liner from fender and rotate downward to remove.
- Expanding nut
- Side member trim
- Quick-release bolt
