Tightening torques
TIGHTENING TORQUES: UPPER AND LOWER SECTIONS OF OIL PAN
| Component | Nm |
|---|---|
| Upper section of oil pan to cylinder block - M6 | 10 |
| Upper section of oil pan to cylinder block - M8 | 20 |
| Lower section of oil pan to upper section of oil pan | 10 |
| Oil pan to transmission - M8 | 25 |
| Oil pan to transmission-M10 | 45 |
| Coolant line to oil pan | 10 |
| Oil drain plug in lower section of oil pan | 30 |
| Dipstick guide tube to cylinder head | 25 |
| Oil pump to cylinder block | 25 |
| Oil pump supply lines to upper section of oil pan | 10 |
| Front sealing flange-M6 | 10 |
| Collar bolt-M8 | 30 |
| Bracket for coolant lines to oil pan | 10 |
| Coolant drain screw on engine | 20 |
| Stop for torque reaction support to bracket on engine | 25 |
| Engine mounting to subframe | 25 |
| Torque reaction support to front of oil pan | 25 |
| Engine mounting to engine support | 25 |
| Chain sprocket to oil pump | 25 |
WARNING:

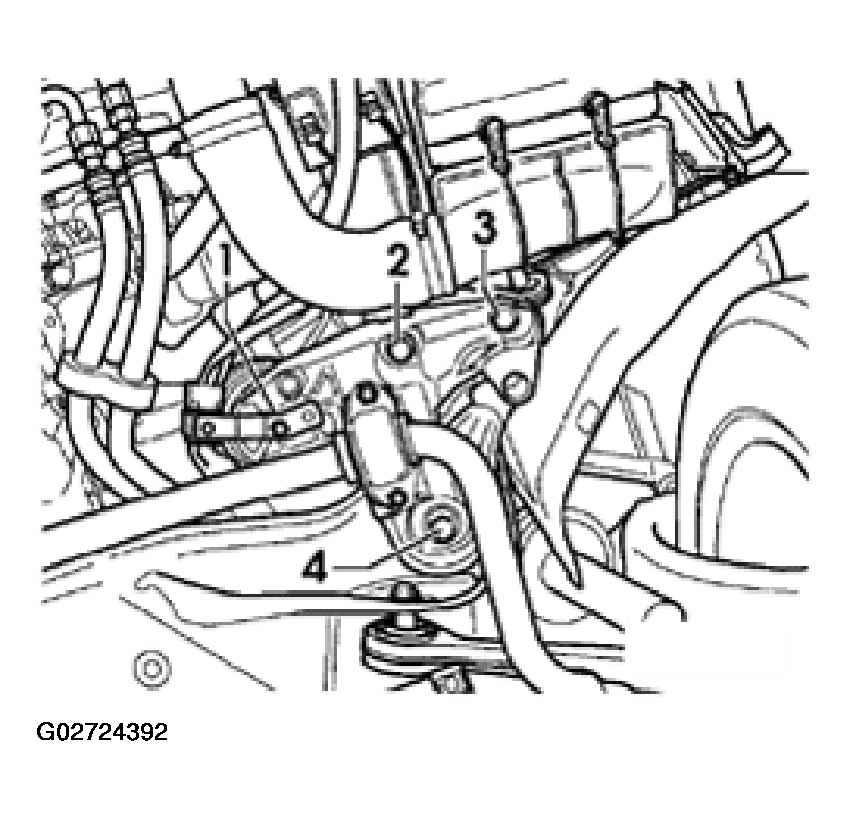

Combi bolt -4- MUST BE REPLACED after removing. See Fig 1.
