Upper and lower sections of oil pan, removing and installing: Removing
See Caution before beginning repairs on the electrical system under LUBRICATION SYSTEM COMPONENTS, REMOVING AND INSTALLING .
- With ignition switched off, disconnect battery Ground strap.
- Pull out dipstick.
- Unbolt dipstick guide tube at front of cylinder head (right side), and pull out of oil pan from the top.

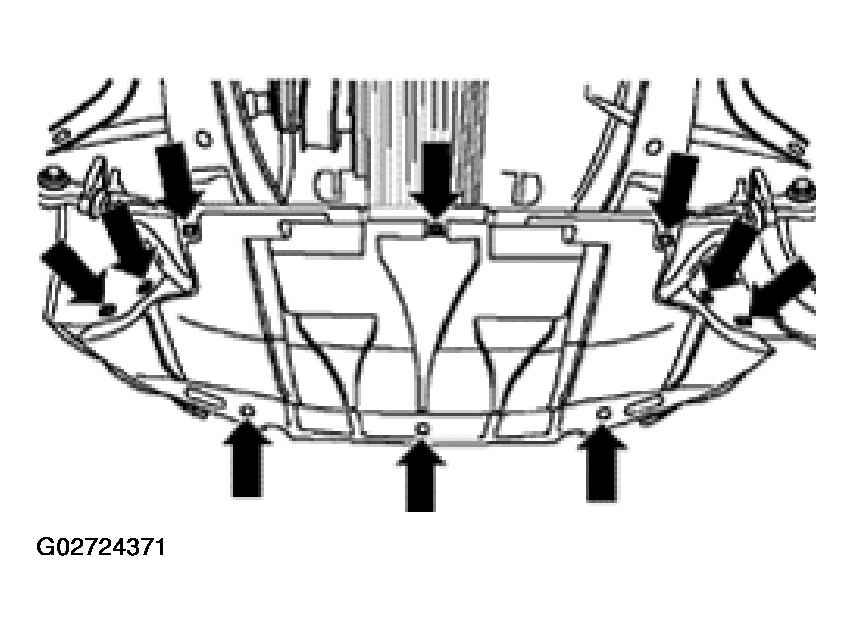

- Remove noise insulation panel -arrows-.
- Remove bumper.
See FRONT BUMPER .
- Move lock carrier to service position.
See LOCK CARRIER, SERVICE POSITION .
WARNING: Hot steam can escape from the expansion tank when the filler cap is opened. Cover the filler cap with a cloth and remove it carefully. - Remove cap on coolant expansion tank.
- Place drip tray VAG 1306 below engine.

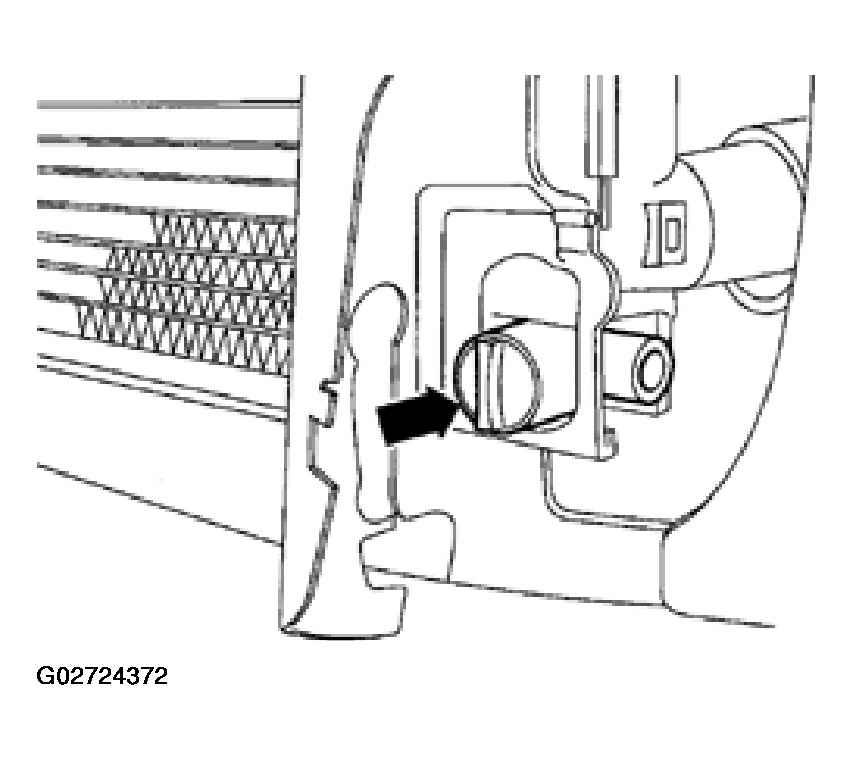

- Turn drain screw -arrow- on radiator counter-clockwise, if necessary install drain hose to connection.

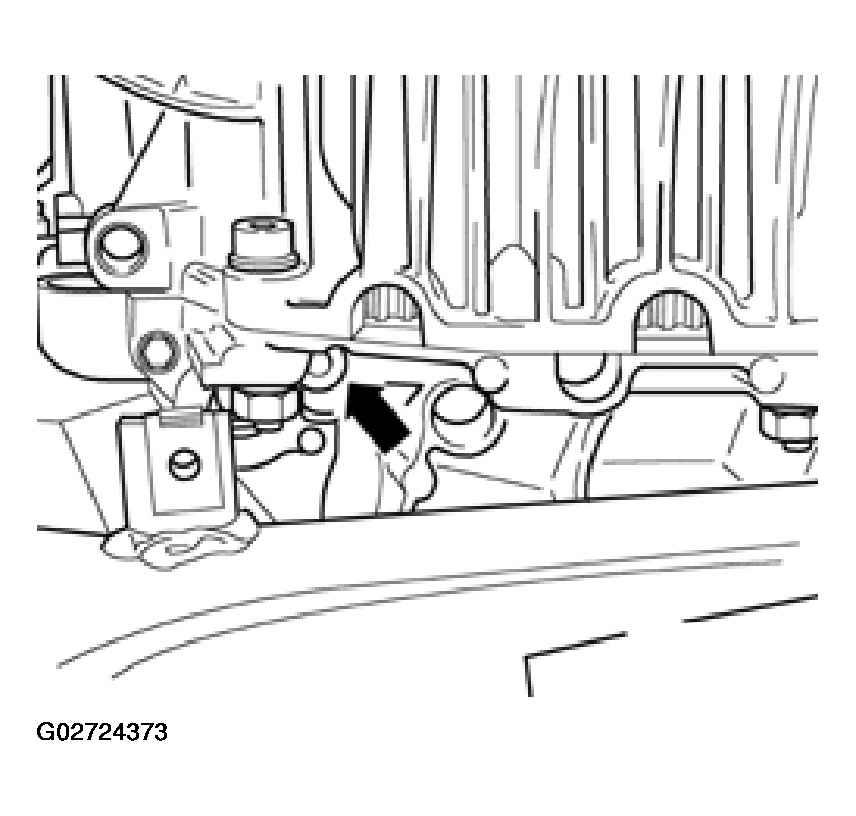

- Also open coolant drain screw -arrow- at rear right of oil pan. See COOLING SYSTEM, DRAINING AND FILLING .
- Drain engine oil.
Use a separate container to collect the engine oil.

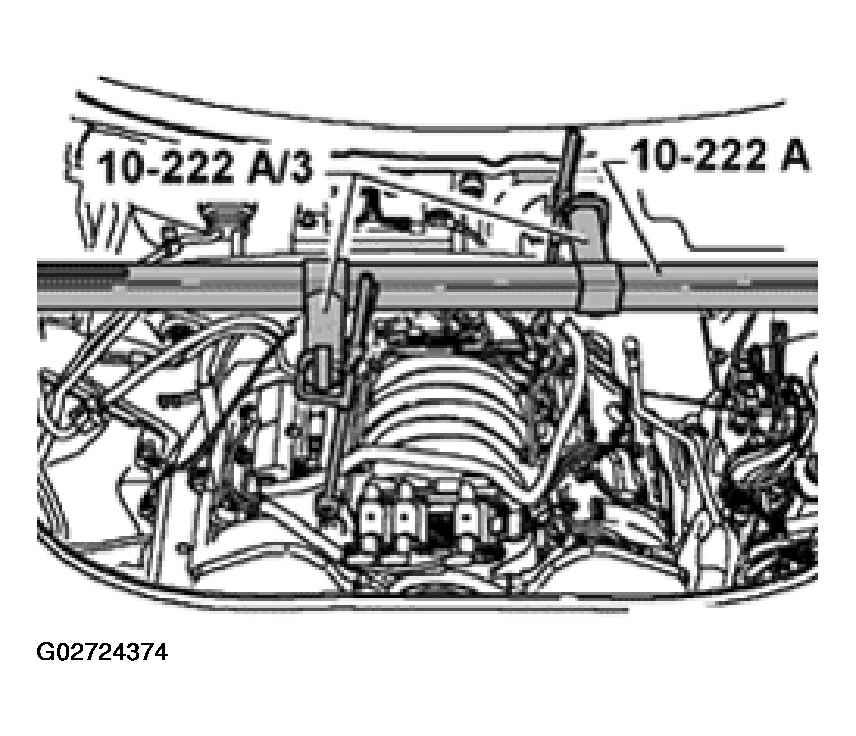

- Set up support bracket 10-222A with adapter 10-222A/3 on bolted flanges for wing panels.
- Attach support bracket to front and rear lifting eyes on engine.
- Raise engine as far as possible with spindles of support bracket.

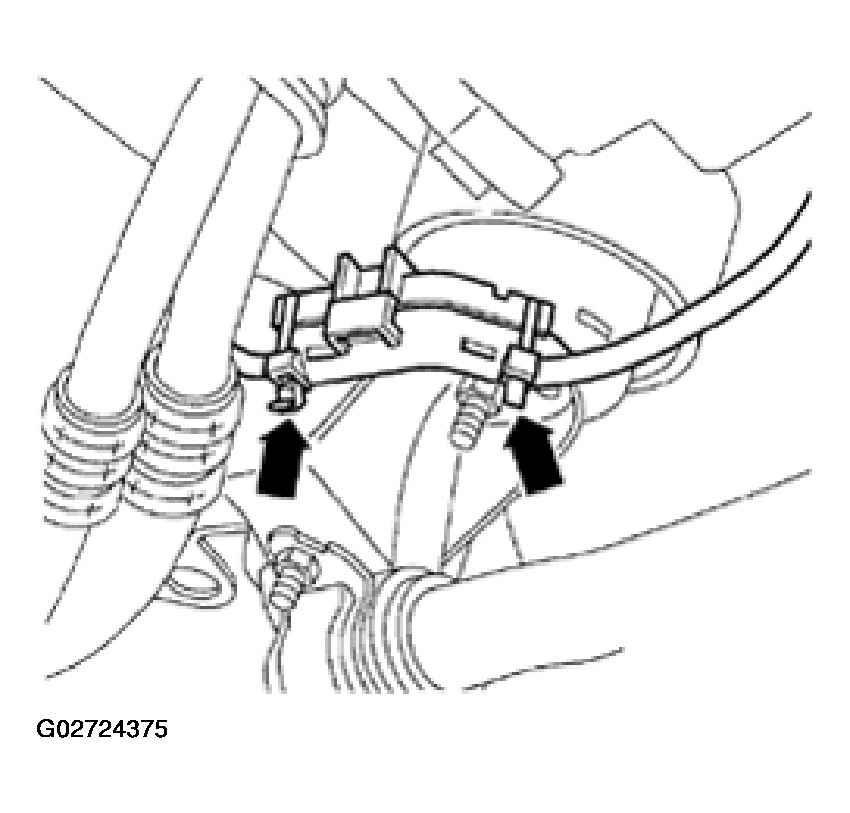

- Cut open cable ties -arrows-, open retainer for starter cable and take out cable.
- Unbolt torque reaction support at front of oil pan.
- Unbolt coolant line from oil pan.
- Disconnect connector from oil pressure switch on left of oil pan.

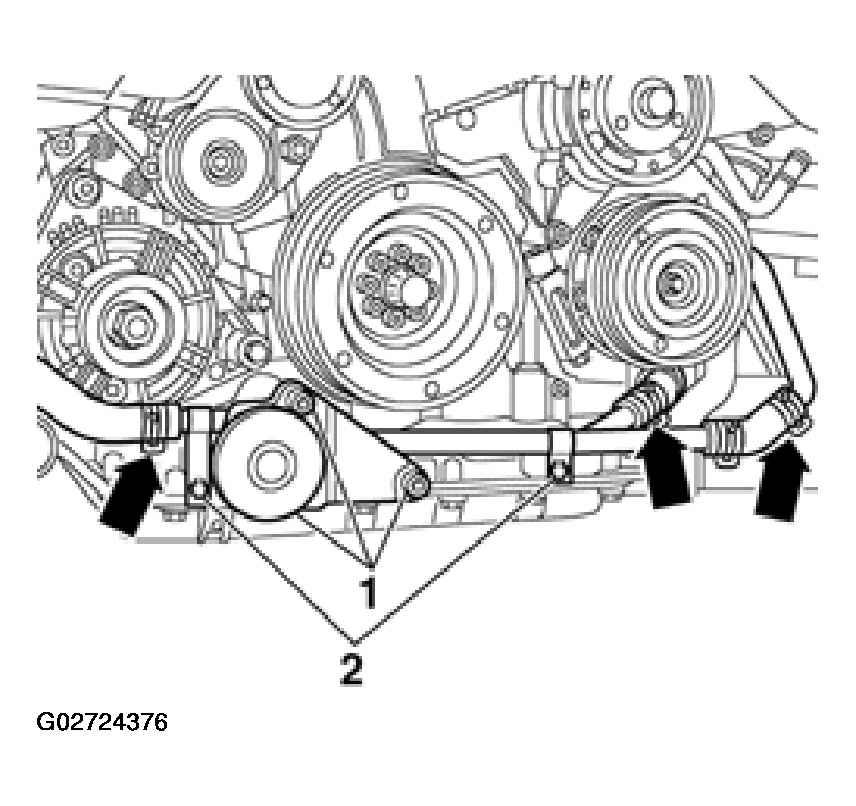

- Remove torque reaction support -1-.
- Release hose clamps -arrows-.
- Remove water line -2-.
- Place drip tray VAG 1306 under engine.

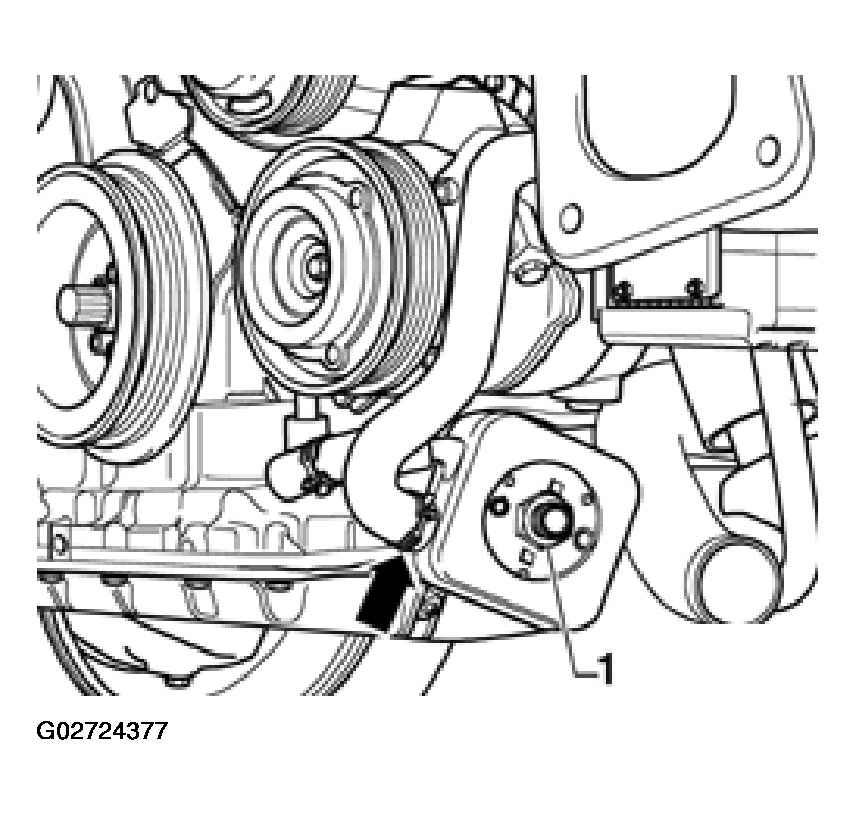

- Remove oil filter.
- Release hose clamps -arrows-. See Fig 7.
- Remove oil cooler -1-.

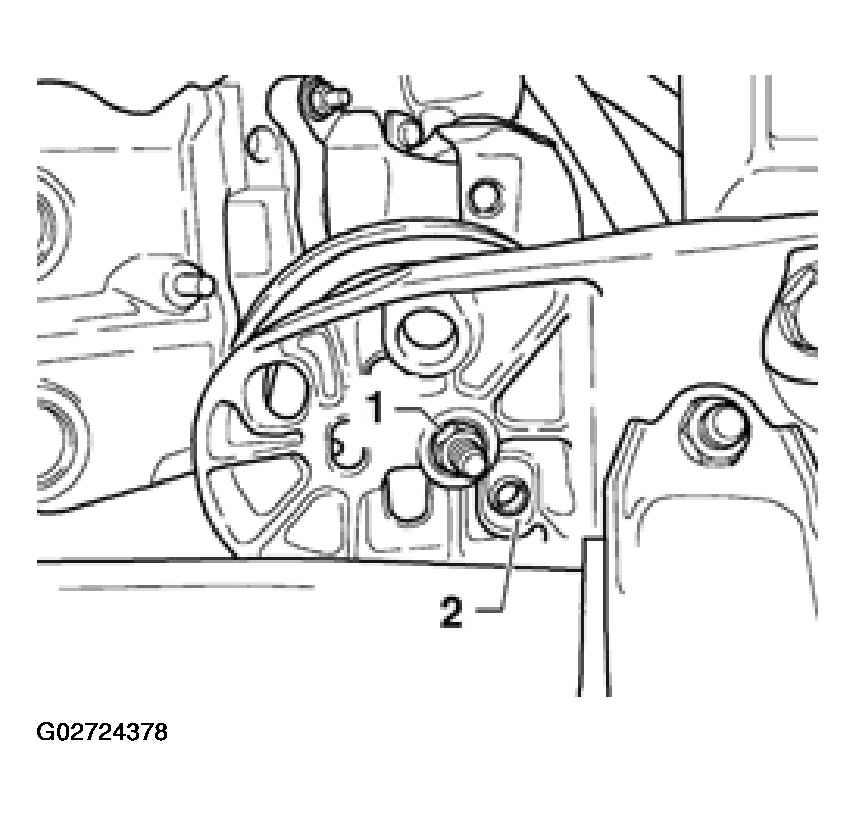

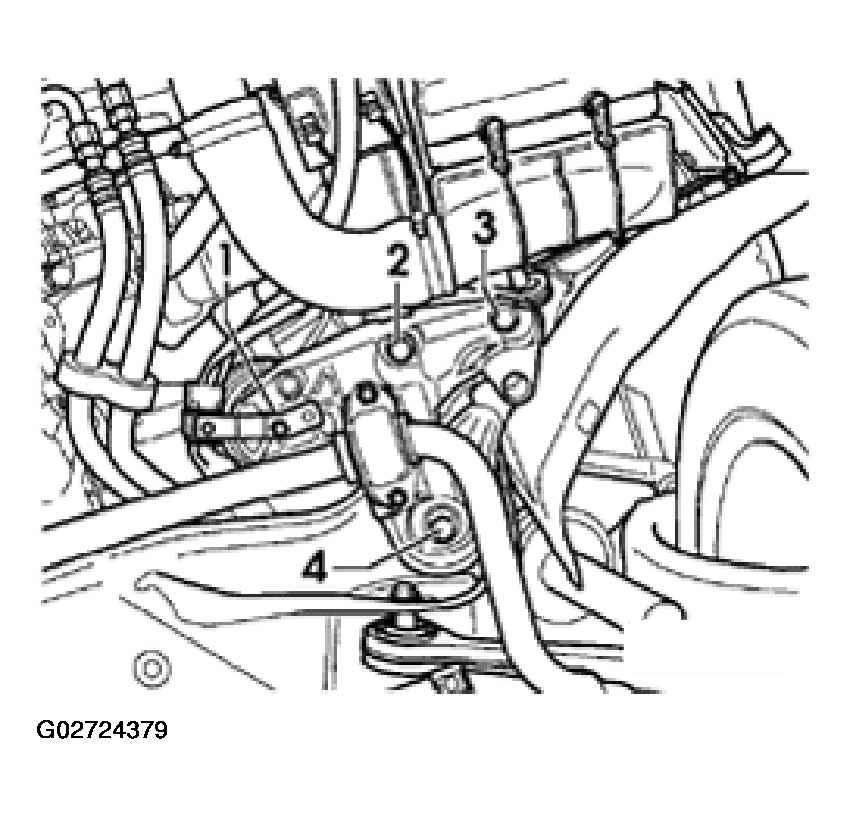

- Remove lower nuts on engine mountings -1- (left and right sides).

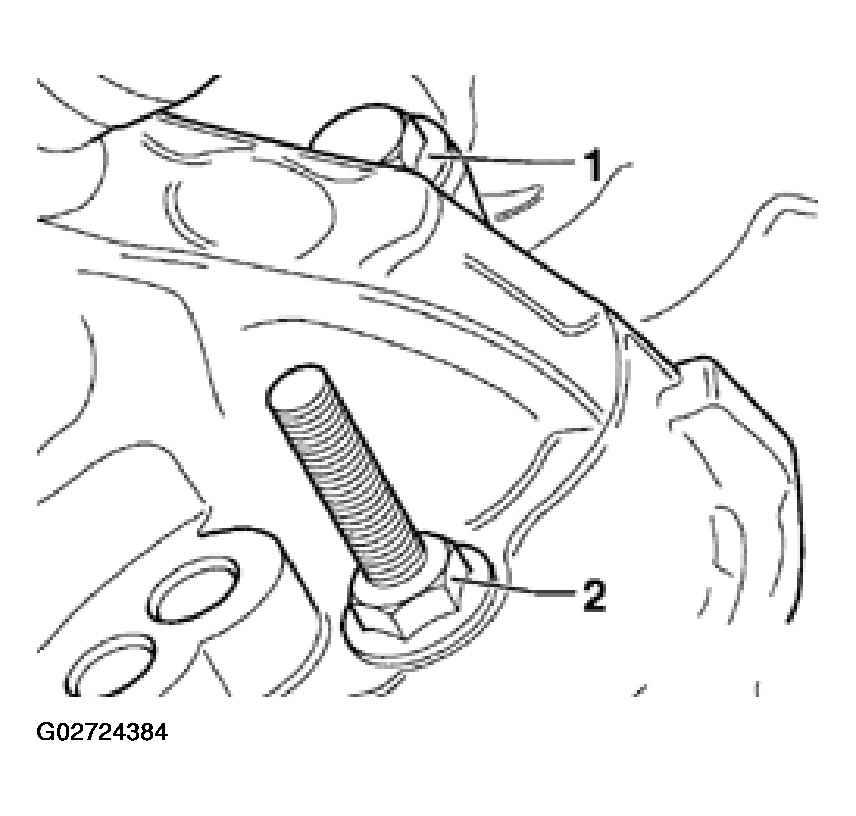

- Mark positions of securing points -1- and locating sleeves -2- under engine mountings on left and right sides.
- Remove front subframe bolts -2- and -3-(left and right).
- Remove bolts -4-.
- Move stabilizer bar downward.

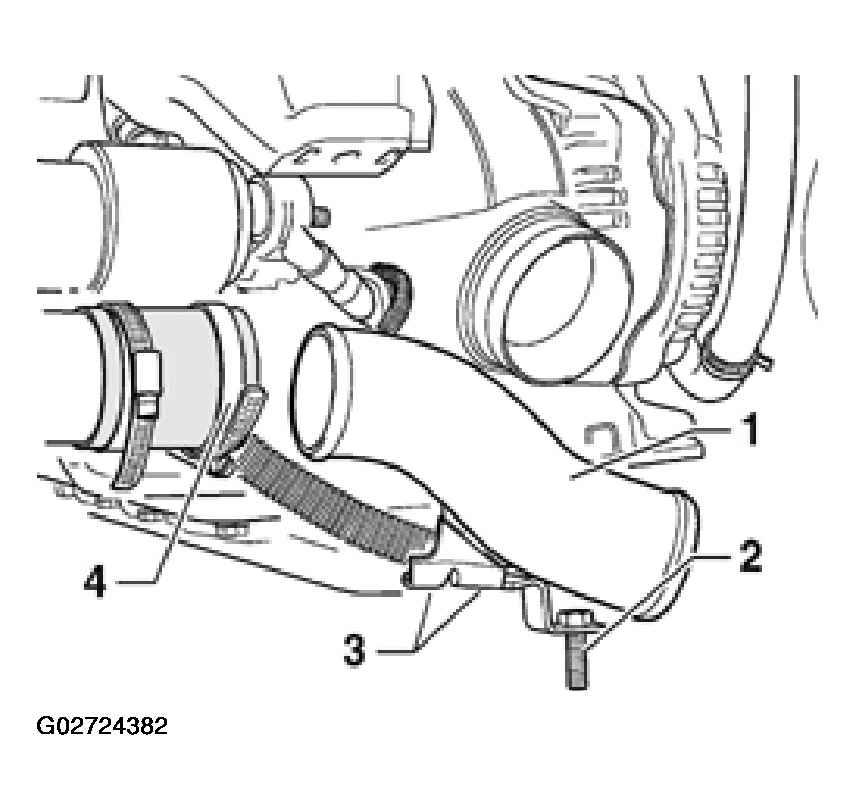

- Remove charge air cooler -2- on right side (release hose connection at top, and 3 rubber mountings).
- Remove air duct from connector elbow on alternator -3-.

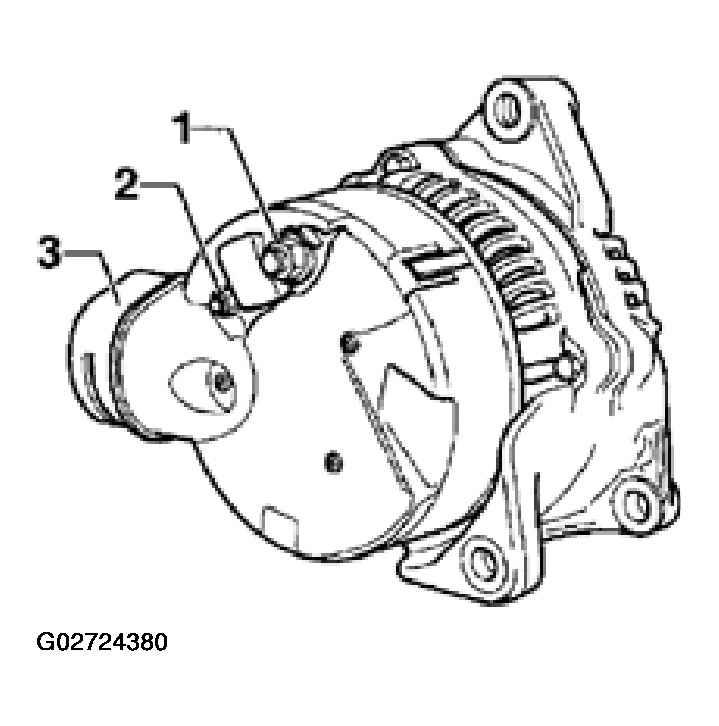

- Disconnect cable from terminal 30/B+ -1-. Tightening torque: 16 Nm. See Fig 10.
- Disconnect cable from terminal D+ -2-. Tightening torque: 4 Nm

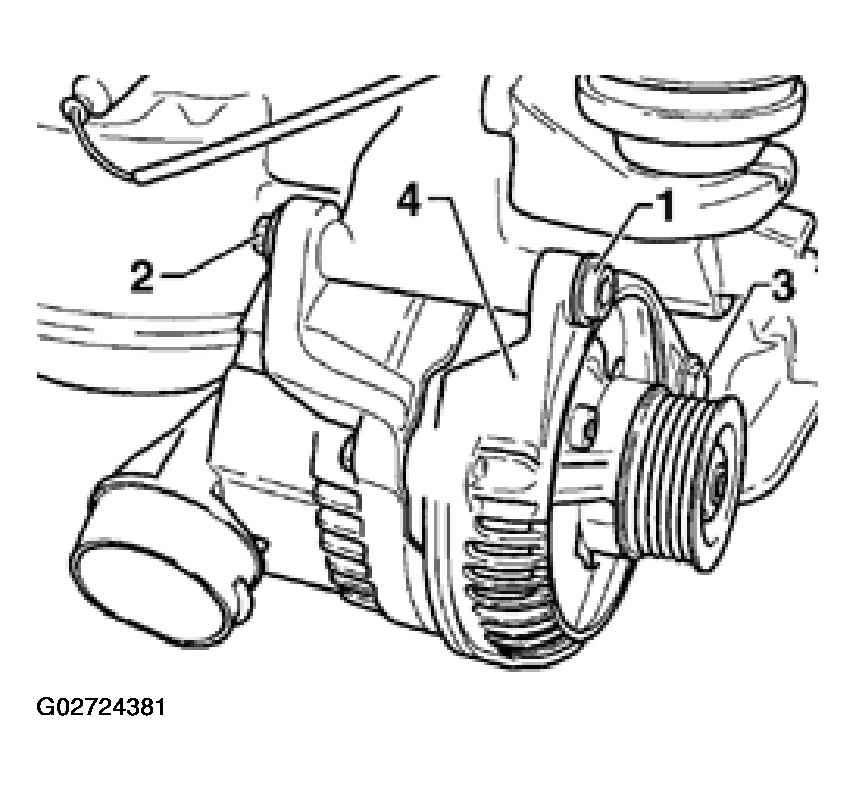

- Remove hex socket head bolt -1- and securing nut -2-. Tightening torque: 45 Nm
- Loosen bolt -3-. Tightening torque 22 Nm
- Remove alternator -4- from below.
- Remove air line -1-.
- Mounting for oil line and air conditioner lines
- Mounting on cylinder block
- Release hose clamp

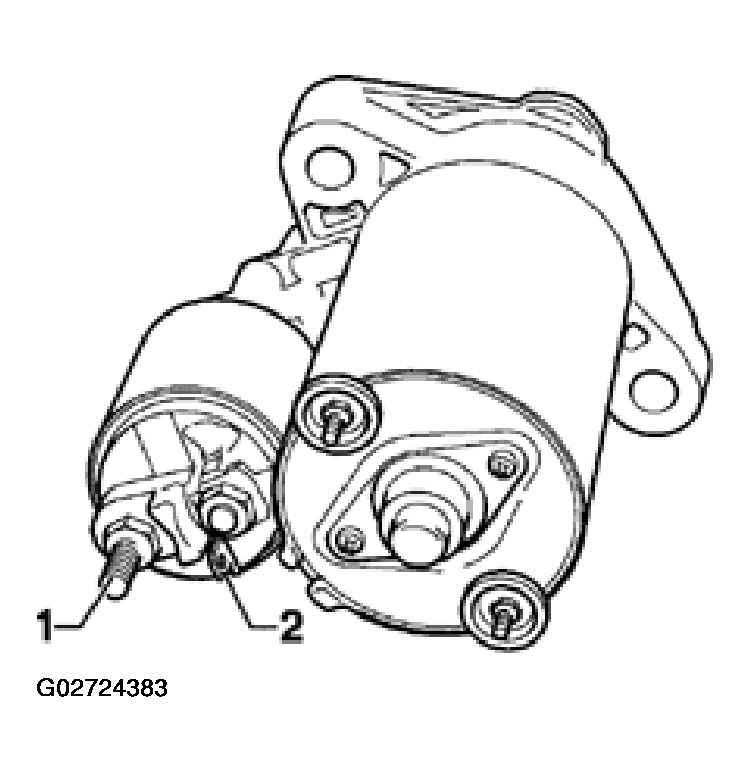

- Disconnect cable from terminal 30/B+ -1-. Tightening torque: 16 Nm
- Disconnect connector for terminal 50 -2-.
- Remove right wheel.
- Remove top bolt -1- from right wheelhousing. Tightening torque: 65 Nm
- Remove lower bolt (accessible from engine side). Tightening torque: 65 Nm
- Remove starter from front of vehicle.
NOTE: To avoid having to check and adjust wheel alignment, only loosen the front subframe mountings and lower the subframe at the front.

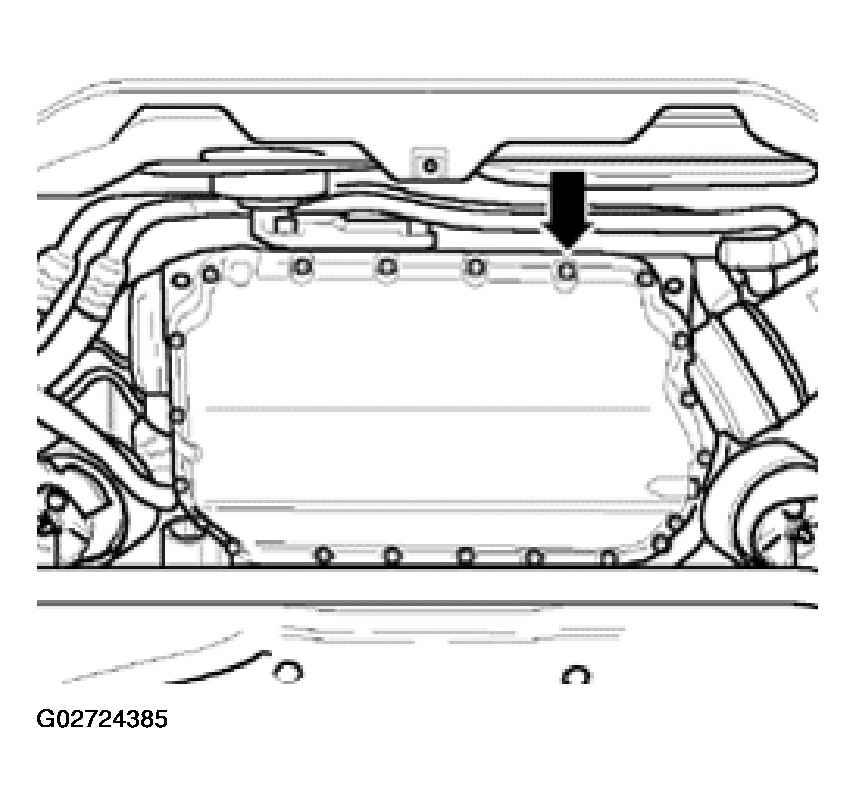

- Remove lower section of oil pan.
- Disconnect return lines for turbocharger from upper section of oil pan.

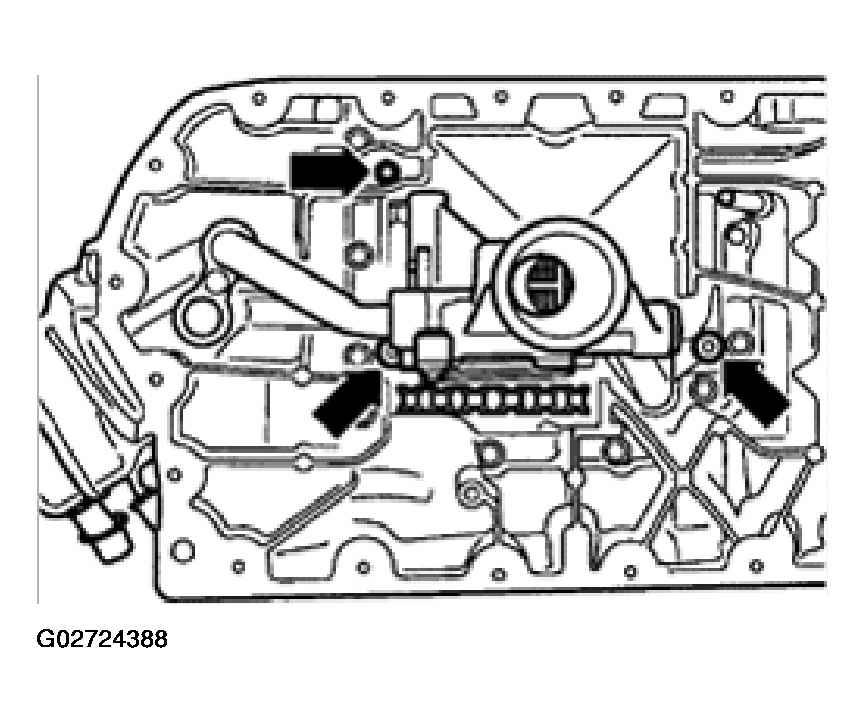

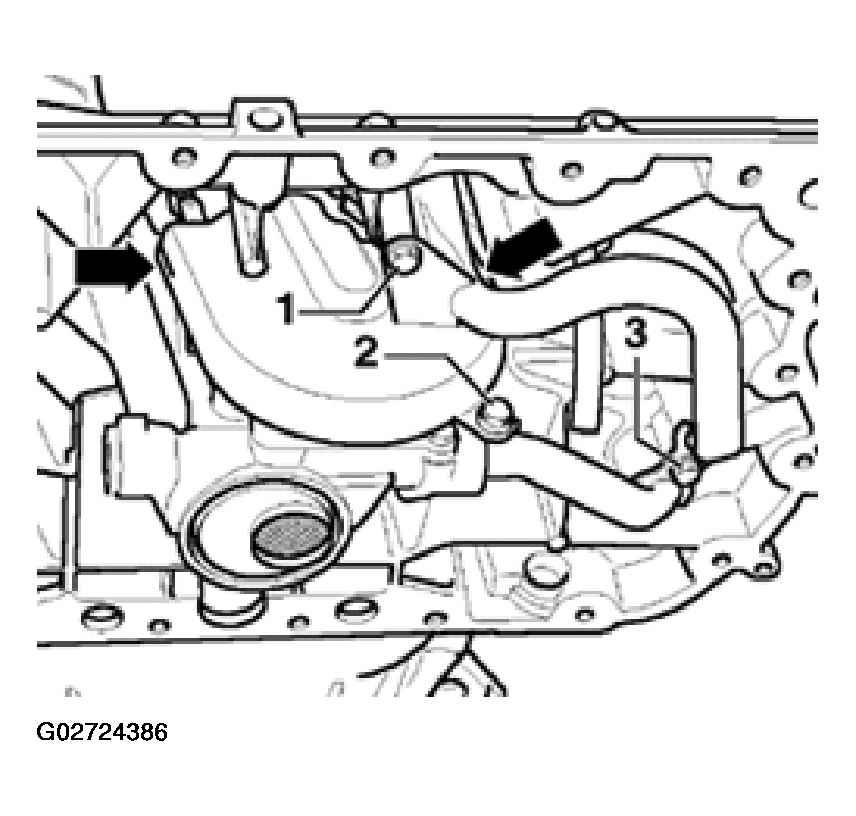

- Unbolt cover plate -2- for oil pump sprocket.NOTE:
- When loosening bolt -2- securing cover plate, counter-hold at welded nut.
- When installing, make sure that the plate engages in position -arrows-.

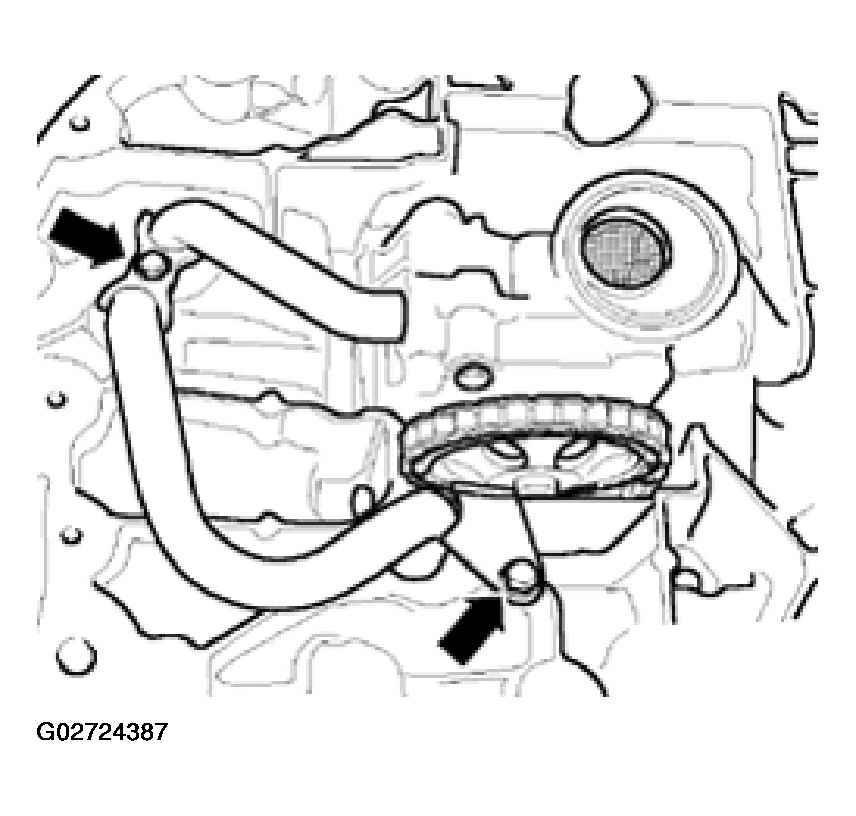

- Unbolt two oil supply lines, and pull longer of two lines downward to disconnect from upper section of oil pan.
- Unbolt oil pump from engine so that shorter oil supply line can be disconnected (do not remove oil pump).
- Remove bolts securing upper section of oil pan to transmission.
- Unbolt upper section of oil pan from engine.
NOTE:
Two M6 bolts and two M8 bolts are located vertically at rear of oil pan upper section (in front of joint between engine and transmission).
