Crankcase breather and oil spray jets: Notes

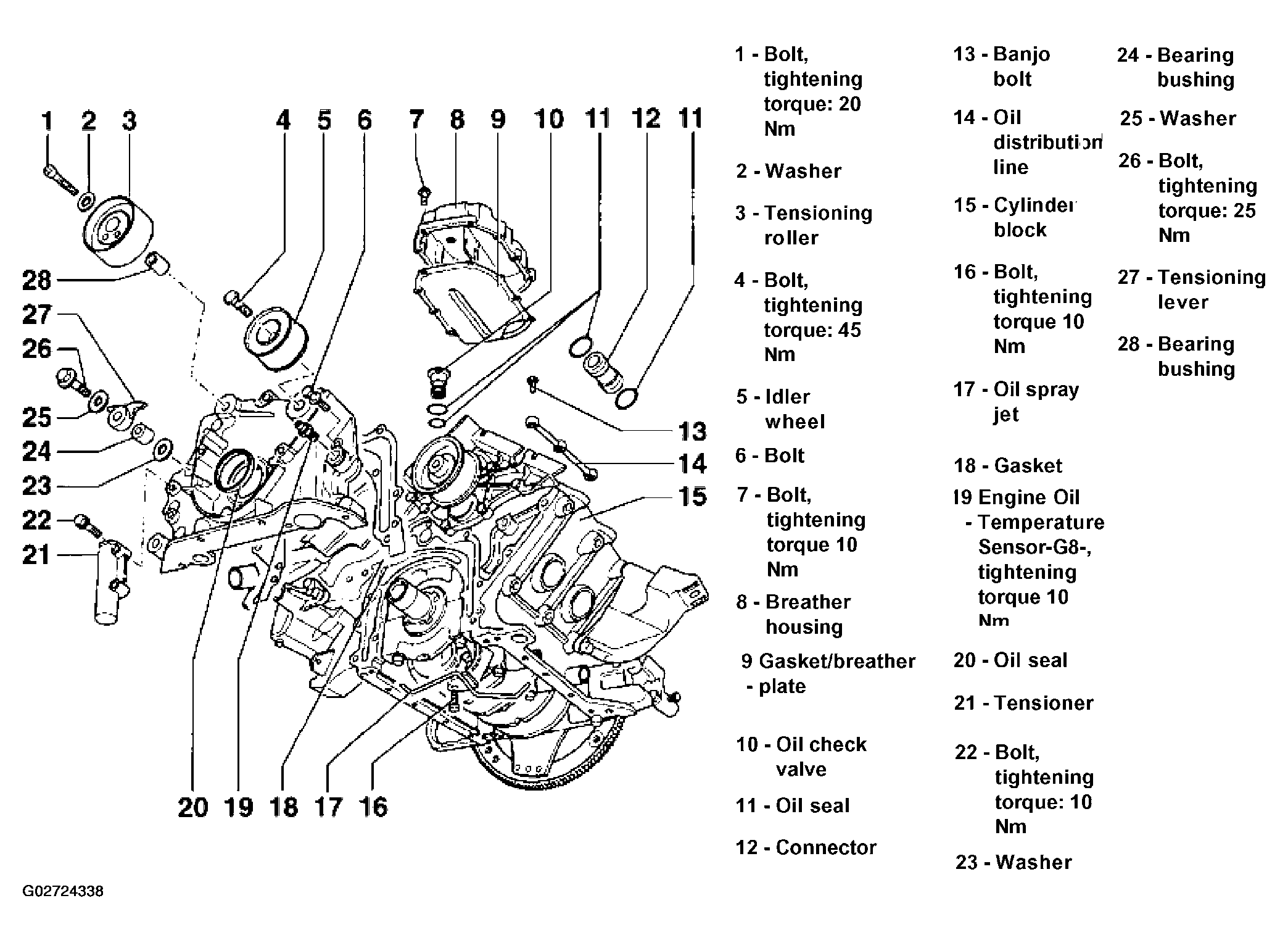

Removing and installing oil pump, oil pan, oil filter and oil cooler: See UPPER AND LOWER SECTIONS OF OIL PAN, REMOVING AND INSTALLING .Fig 1
NOTE:
The following list refers to items in .
- - Bolt, tightening torque: 20 Nm
- - Washer
- - Tensioning roller
- - Bolt, tightening torque: 45 Nm
- - Idler wheel
- For toothed belt
- - Bolt
- M6 Tightening torque: 10 Nm
- M8 Tightening torque: 20 Nm
- - Bolt, tightening torque 10 Nm
- - Breather housing
- - Gasket/breather plate
- Always replace
- - Oil check valve
- Tightening torque: 25 Nm
- - Oil seal
- - Connector
- - Banjo bolt
- Tightening torque: 15 Nm
- - Oil distribution line
- For oil spray jets for piston cooling
- - Cylinder block
- - Bolt, tightening torque 10 Nm
- Apply locking fluid "D6" when installing
- - Oil spray jet
- For piston cooling
- - Gasket
- Metal gasket
- Always replace
- - Engine Oil Temperature Sensor-G8-, tightening torque 10 Nm
- For oil temperature gauge
- White
- If seal is leaking, cut open with pliers and replace.
- - Oil seal
- Replacing, see OIL SEALS IN CYLINDER HEADS, REPLACING
- - Tensioner
- Secure in position before removing. See SECURING TENSIONER IN POSITION BEFORE REMOVING .
- - Bolt, tightening torque: 10 Nm
- Apply locking fluid "D6" when installing
- - Washer
- - Bearing bushing
- For tensioning lever
- - Washer
- - Bolt, tightening torque: 25 Nm
- - Tensioning lever
- - Bearing bushing
- For tensioning roller
