Chain sprocket for oil pump on crankshaft, removing and installing: Installing

Heat chain sprocket in oven for about 15 minutes at 220;deg;C.

Fig 1: Removing Chain Sprocket From Crankshaft
Courtesy of AUDI OF AMERICA, INC.
NOTE:
- Wear protective gloves.
- Installation position: it must be possible to read the lettering on the chain sprocket.
Using pliers, install chain sprocket on end of crankshaft and push against stop on crankshaft with drift sleeve 30-100. If necessary knock on carefully using a plastic hammer.
Removing and installing front sealing flange and oil pump drive chain. See FRONT SEALING FLANGE AND OIL PUMP DRIVE CHAIN, REMOVING AND INSTALLING .

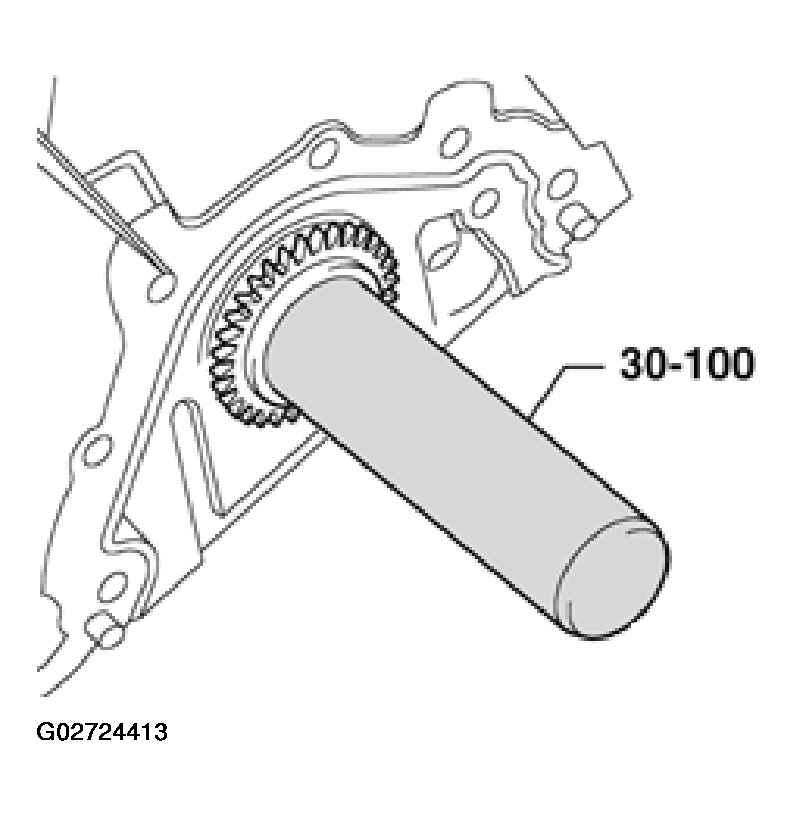

Fig 2: Installing Chain Sprocket On Crankshaft
Courtesy of AUDI OF AMERICA, INC.
