Sealing end points of joints between bearing caps and cylinder head

• Carefully apply small quantity of sealant D 454 300 A2 at four end points of sealing surfaces on cylinder head -arrows-, using a small screwdriver.

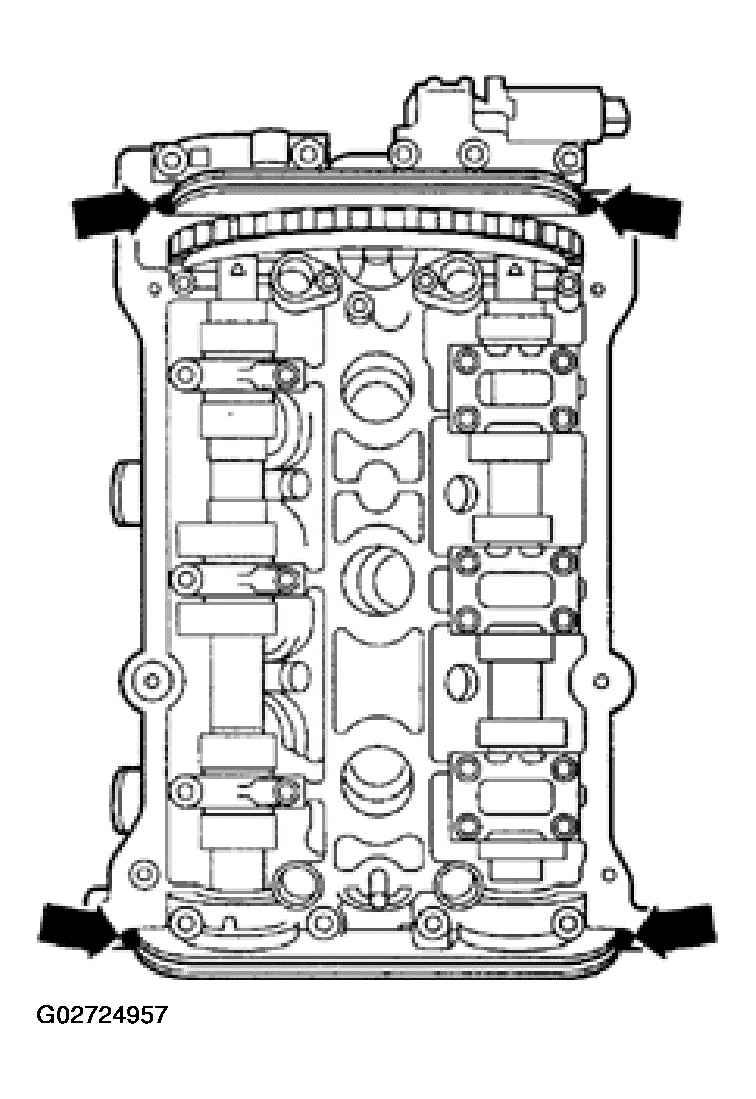

Fig 1: Locating Sealing End Points Of Joints Between Bearing Caps And Cylinder Head

Courtesy of AUDI OF AMERICA, INC.
