Sealing cap (core plug) in cylinder head, installing

The cylinder head supplied as a replacement part can be used on both sides (left or right). But a sealing cap (core plug) must be installed in the front end of the cylinder head in each case.

• Coat outside circumference of sealing cap (core plug) with sealant AMV 188 001 02.
• Using drift VW 295, knock in sealing cap (core plug) until outside rim is flush with end of chamfer in cylinder head.

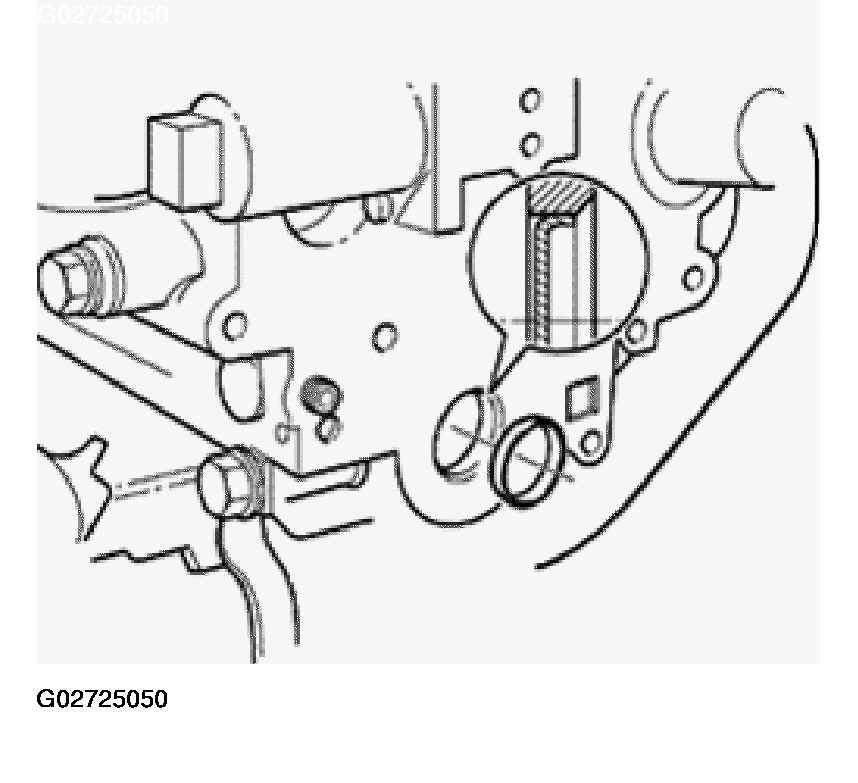

  Fig 1: Locating Core Plug In Cylinder Head

  Courtesy of AUDI OF AMERICA, INC.
