Removing oil seal at Hall sensor (left cylinder head): Installing

Install in reverse sequence.

NOTE: When installing Hall sensor rotor, make sure that locating lug engages in slot in camshaft.

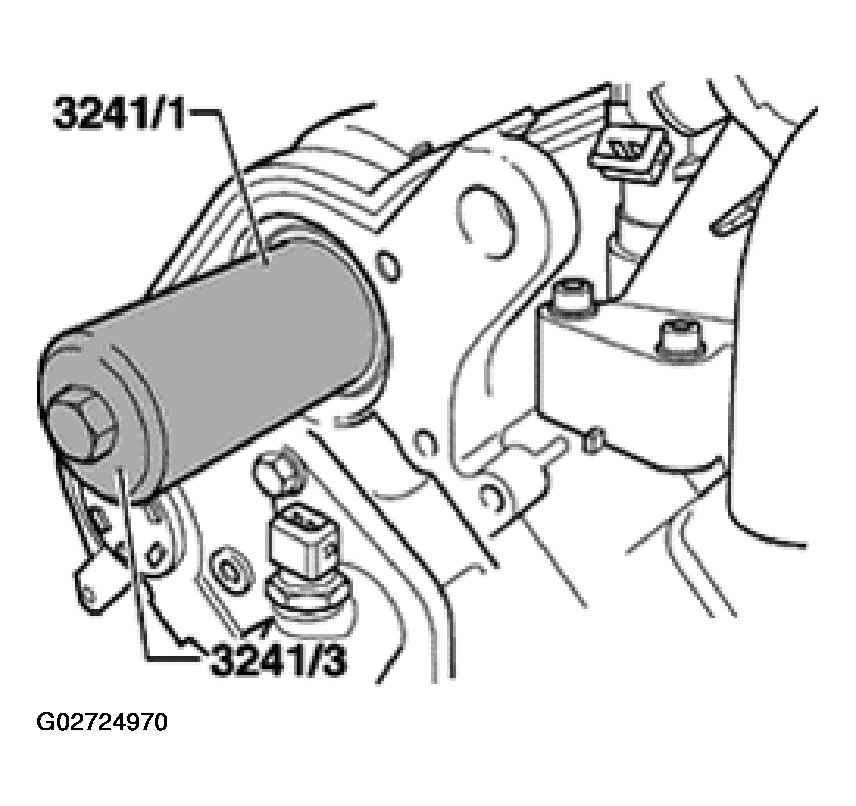

Fig 1: Installing Oil Seal At Hall Sensor Using 3241 (Left Cylinder Head)
G02724970Courtesy of AUDI OF AMERICA, INC.
