Oil seal for camshaft drive (left and right cylinder heads)

NOTE: If the oil seal on one side is leaking it is advisable to replace the seals on both sides.

Remove ribbed belt. See RIBBED BELT, REMOVING AND INSTALLING .
Remove toothed belt. See TOOTHED BELT, REMOVING AND INSTALLING .
Remove rear toothed belt guard.
Remove oil seal with oil seal extractor 3240.
Clean contact surface and sealing surface.
Do not apply oil to sealing lip or outer circumference of seal.
Install guide sleeve 3241/2 (from tool set 3241) onto camshaft.

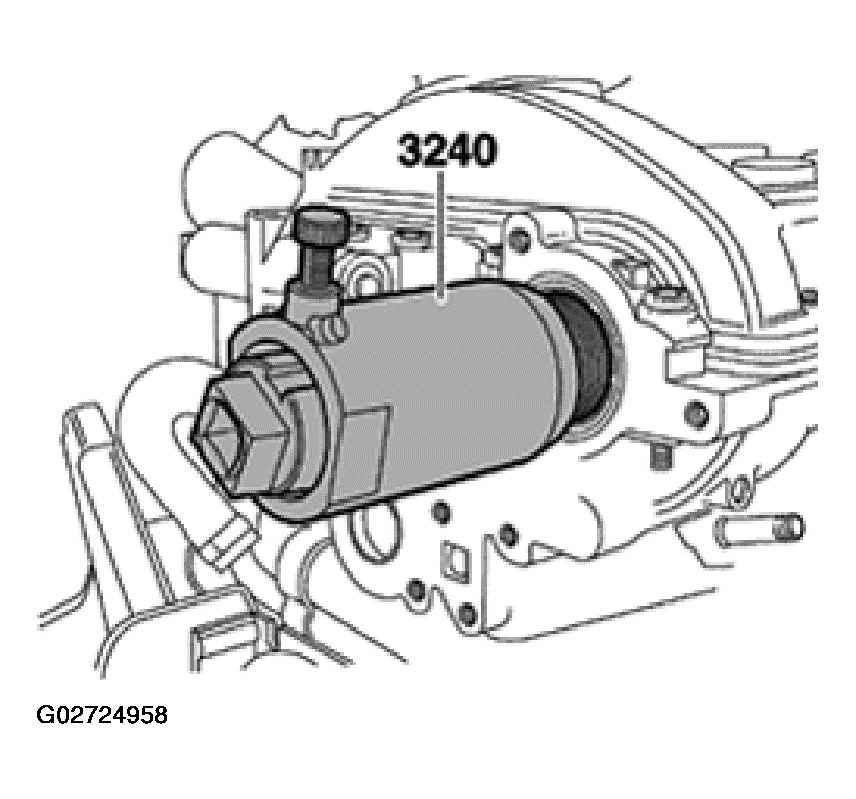

Fig 1: Removing Camshaft Oil Seal From Cylinder Head
Courtesy of AUDI OF AMERICA, INC.
Press seal flush into cylinder head using press sleeve 3241/1 and bolt 3241/3.

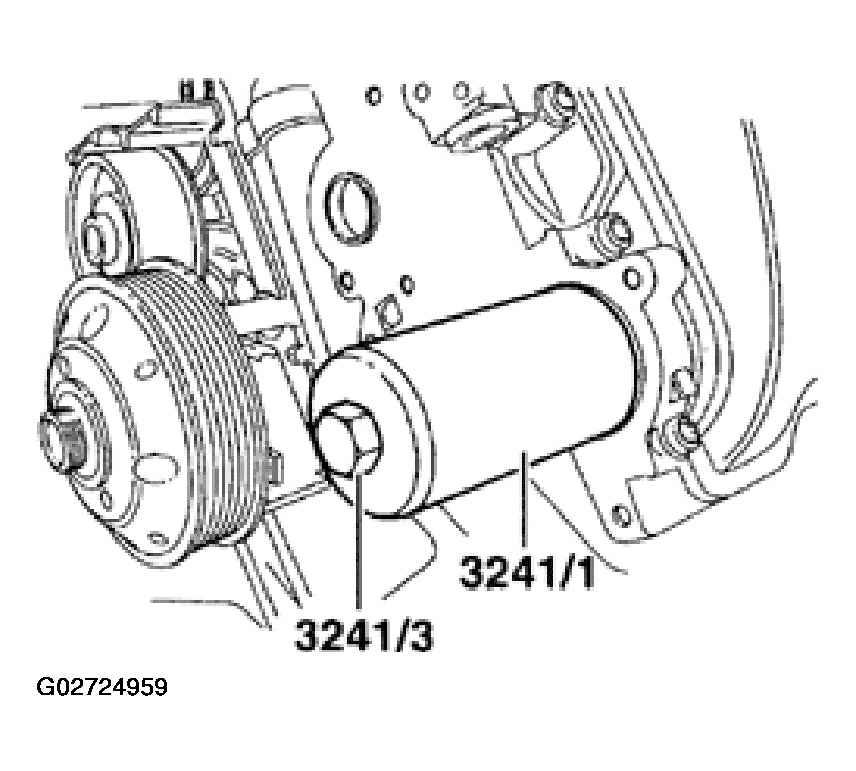

Fig 2: Installing Oil Seal Into Cylinder Head
Courtesy of AUDI OF AMERICA, INC.
