Oil seal at Hall sensor (right cylinder head): Notes

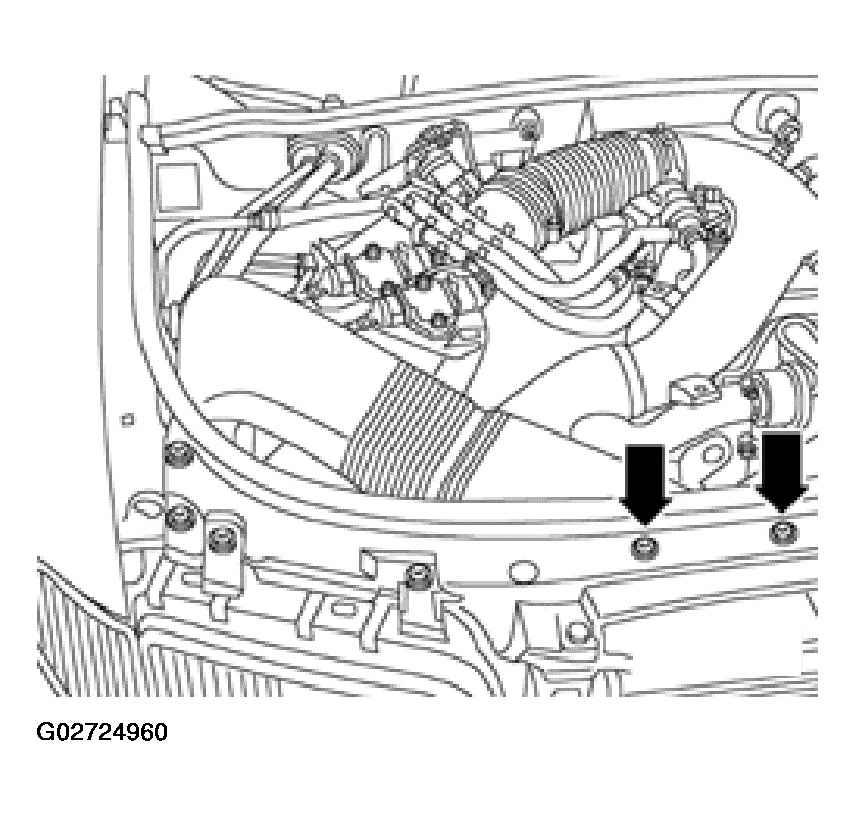

Remove intake hose going to air cleaner (arrows).

Fig 1: Removing Intake Hose Going To Air Cleaner
Courtesy of AUDI OF AMERICA, INC.

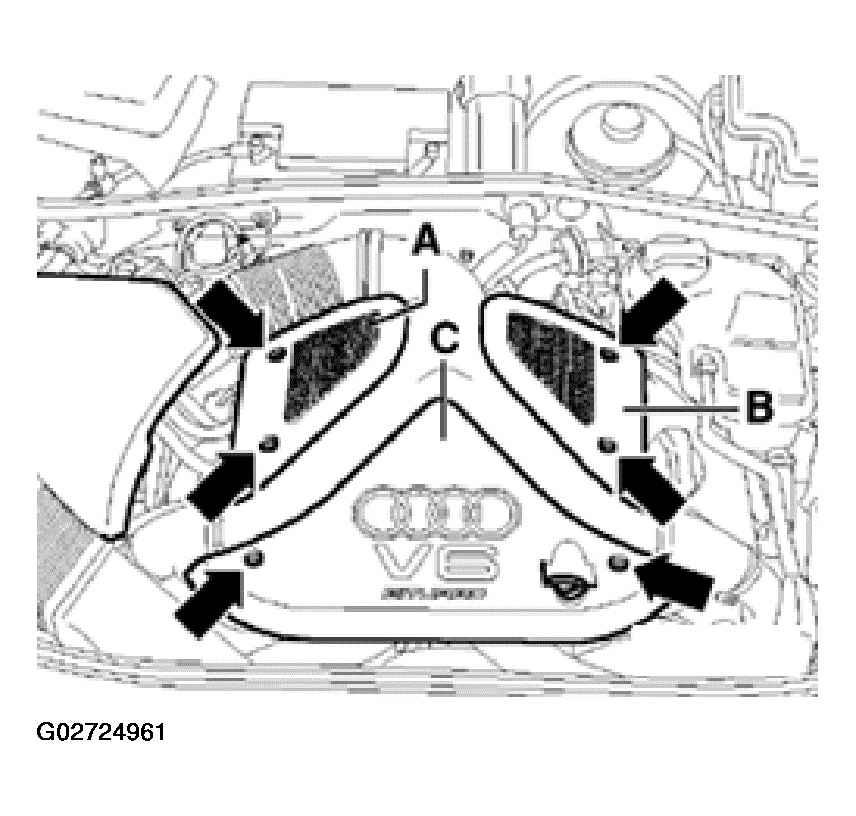

Remove bolts -arrows- and remove engine cover panel -C-.

Fig 2: Removing Engine Cover Panel
Courtesy of AUDI OF AMERICA, INC.

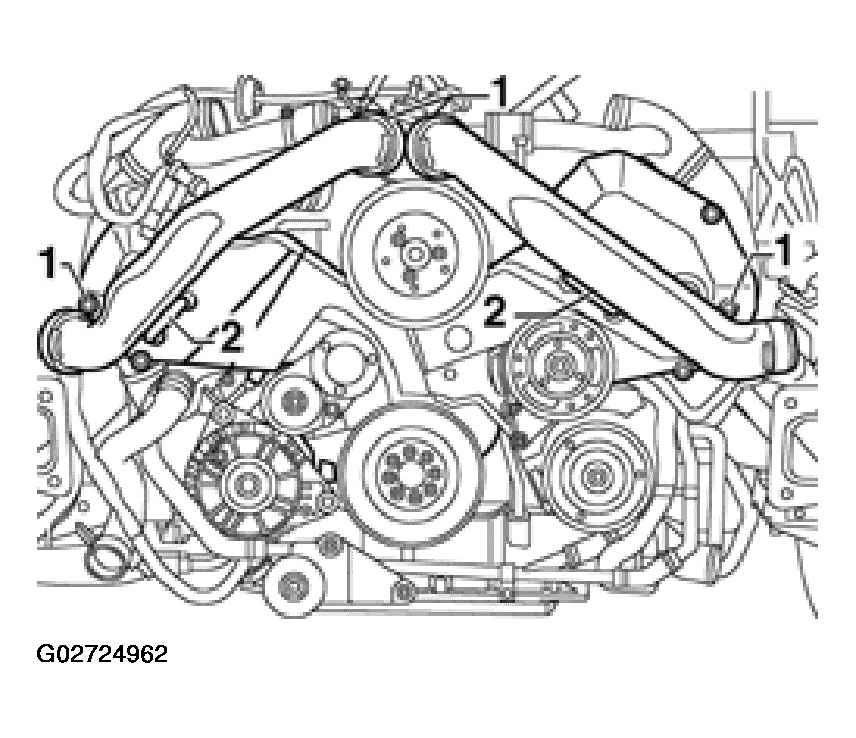

Remove pressure line -1- (right side).

Fig 3: Removing Pressure Line
Courtesy of AUDI OF AMERICA, INC.

NOTE: Watch position of retaining strip -2-.
Unbolt Hall sensor housing (10 Nm).
Remove bolt securing Hall sensor rotor (20 Nm) and carefully pry off rotor with a screwdriver.

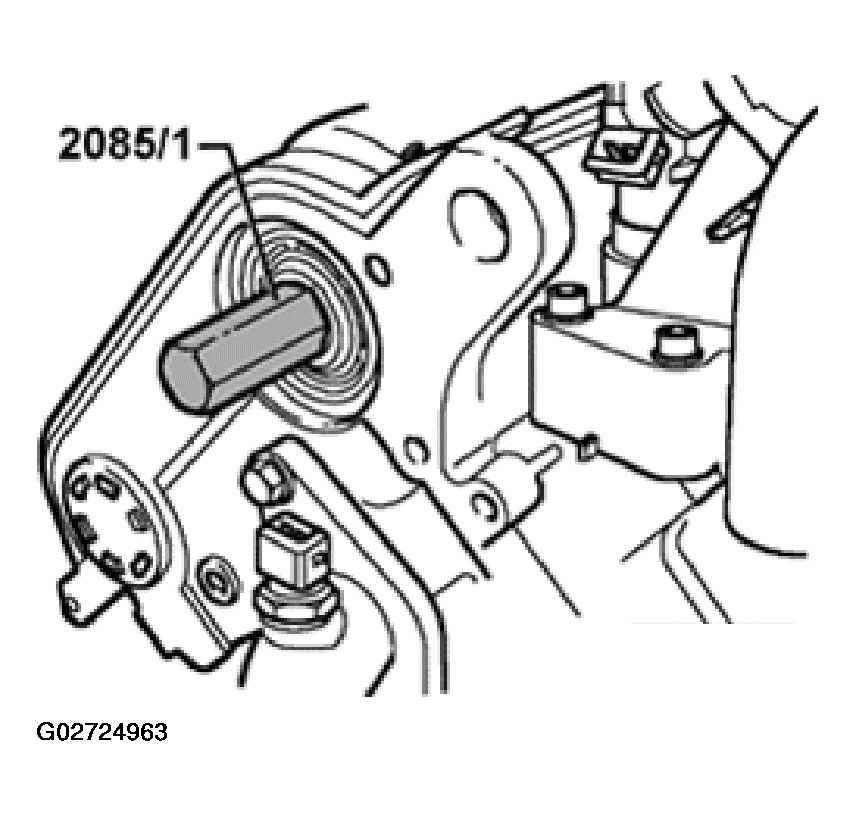

Screw in bolt from oil seal extractor 2085/1. See Fig 4.

Fig 4: Screwing In Bolt From Oil Seal Extractor 2085/1 - Oil Seal At Hall Sensor (Right Cylinder Head)
Courtesy of AUDI OF AMERICA, INC.
Disconnect out seal with oil seal extractor 2085 and bolt 2085/1.
Clean contact surface and sealing surface.
Do not apply oil to sealing lip or outer circumference of seal before installing.
Install guide sleeve (from tool set 3241) onto camshaft.

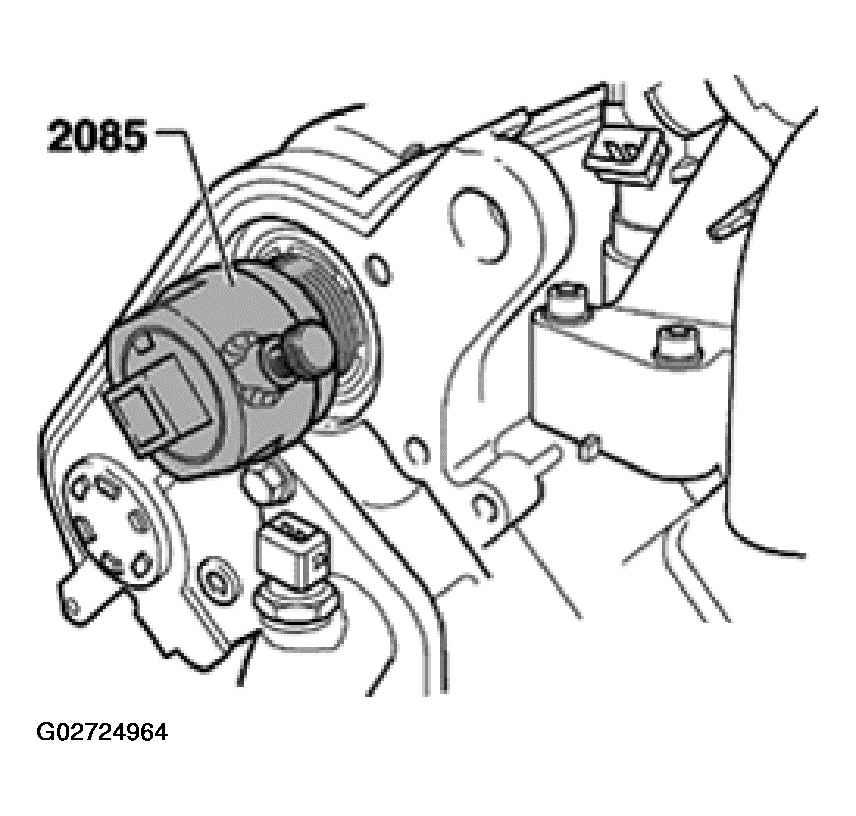

Fig 5: Removing Oil Seal At Hall Sensor Using Oil Seal Extractor 2085 (Right Cylinder Head)
Courtesy of AUDI OF AMERICA, INC.
Press in seal until flush using press sleeve 3241/1 and bolt 3241/3.
