Engine Mechanical - 2.7L V6 BITURBO - APB, Bel
>>
Engine - Cylinder head, Valvetrain
>>
Valve gear, servicing
>>
Cylinder head, reworking
Cylinder head, reworking
Reworking the cylinder head (skimming) is only permissible down to a minimum dimension of a =139.25 mm.

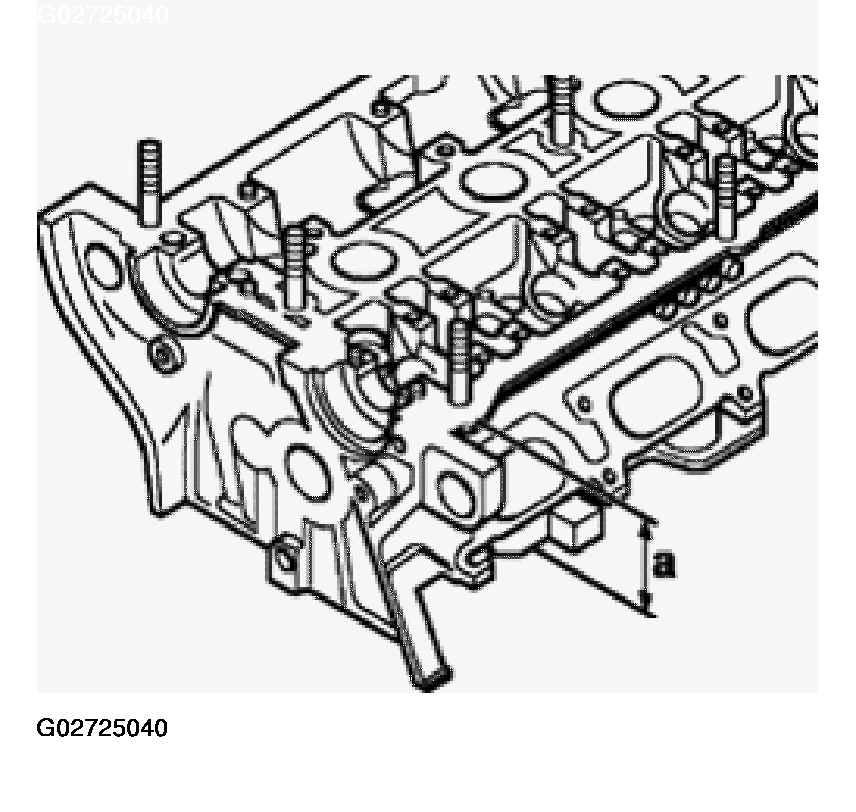

Fig 1: Identifying Cylinder Head (Skimming) Minimum Dimensions
Courtesy of AUDI OF AMERICA, INC.
