Camshafts and camshaft adjusters, removing and installing: Removing

• Cylinder head installed

• Remove noise insulation panel -arrows-.
• Remove front bumper.

  See FRONT BUMPER .

• Move lock carrier to service position.

  See LOCK CARRIER, SERVICE POSITION .

• Remove ribbed belt. See RIBBED BELT, REMOVING AND INSTALLING .
• Remove toothed belt. See TOOTHED BELT, REMOVING AND INSTALLING .

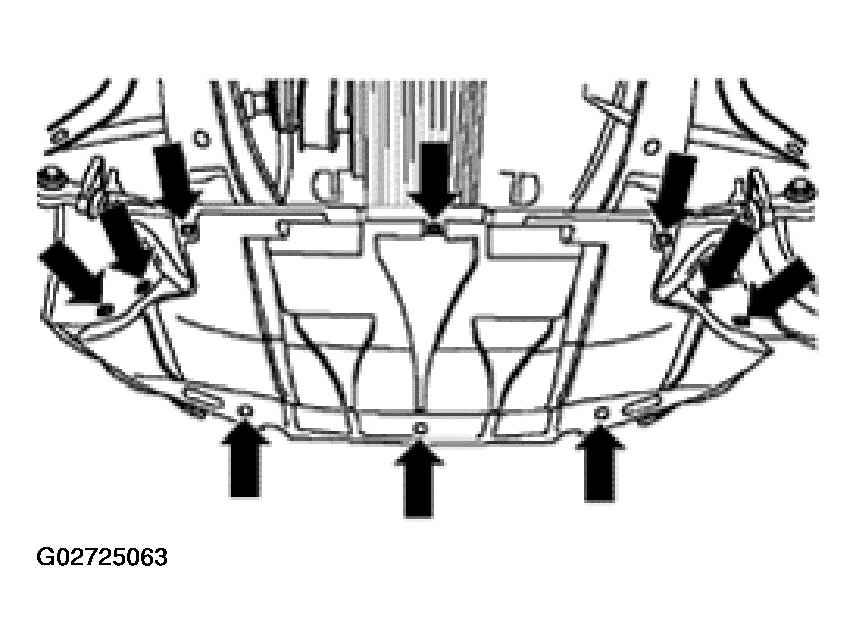

Fig 1: Removing Noise Insulator Panel

Courtesy of AUDI OF AMERICA, INC.
