Ribbed belt, removing and installing: Installing

• D1 - vehicles without air conditioner
• D2 - vehicles with air conditioner.

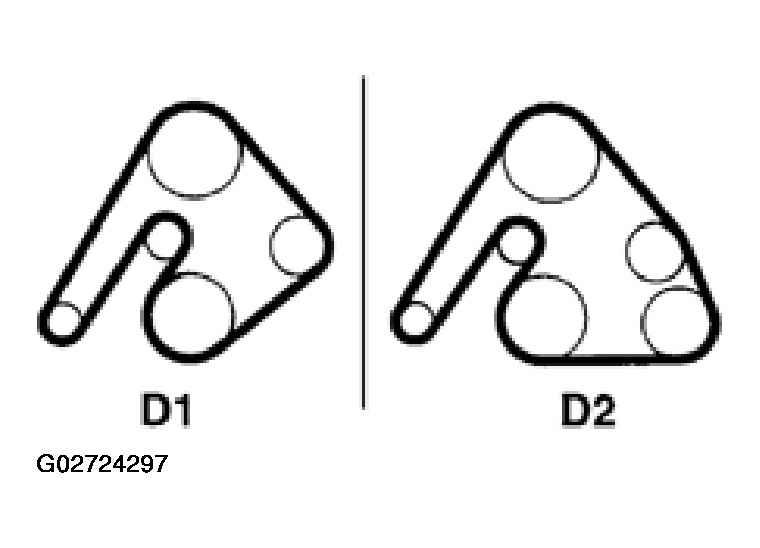

Fig 1: Identifying Ribbed Drive Belt Routing (With & Without A/C)

Courtesy of AUDI OF AMERICA, INC.

• Install ribbed belt onto crankshaft pulley and idler wheel first, and push belt onto tensioning roller last.
• Take out mandrel 3204.

• Counter-hold belt pulley for viscous fan using wrench 3212 and tighten viscous fan using open-end wrench 3312 and torque wrench 1331 (left hand thread).

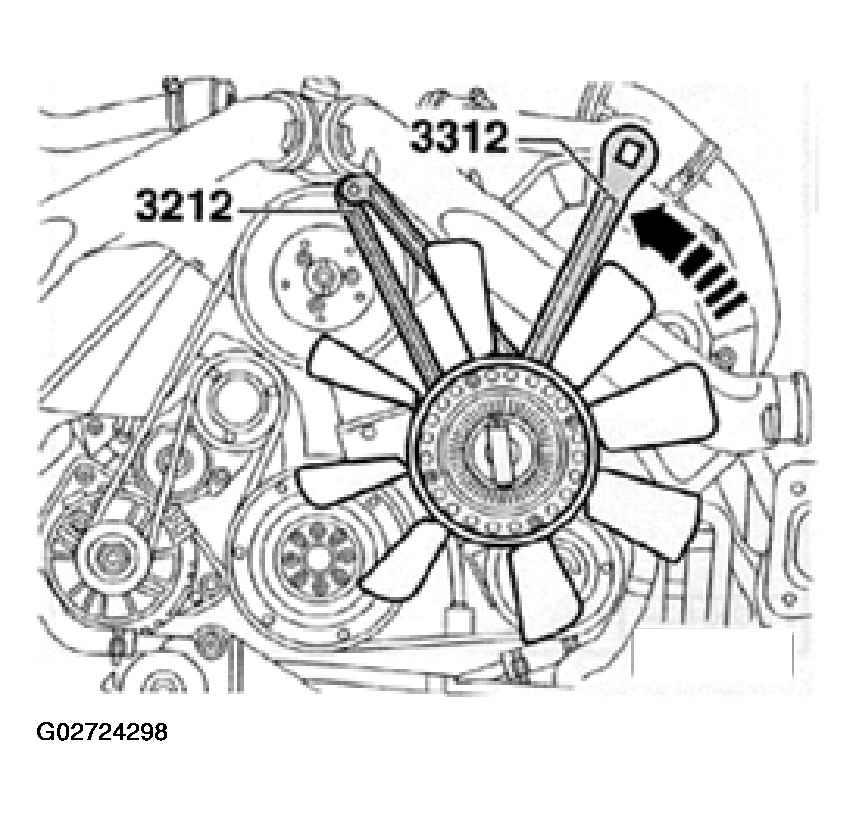

Fig 2: Holding Belt Pulley For Viscous Fan Using Wrench 3212
Courtesy of AUDI OF AMERICA, INC.
• Install lock carrier.

  See LOCK CARRIER WITH ATTACHMENTS, REMOVING AND INSTALLING .

• Install bumper.

  See FRONT BUMPER .

• Install noise insulation.

Tightening torque of viscous fan, see VISCOUS FAN, REMOVING AND INSTALLING
