Pistons and piston rings, checking: Pistons

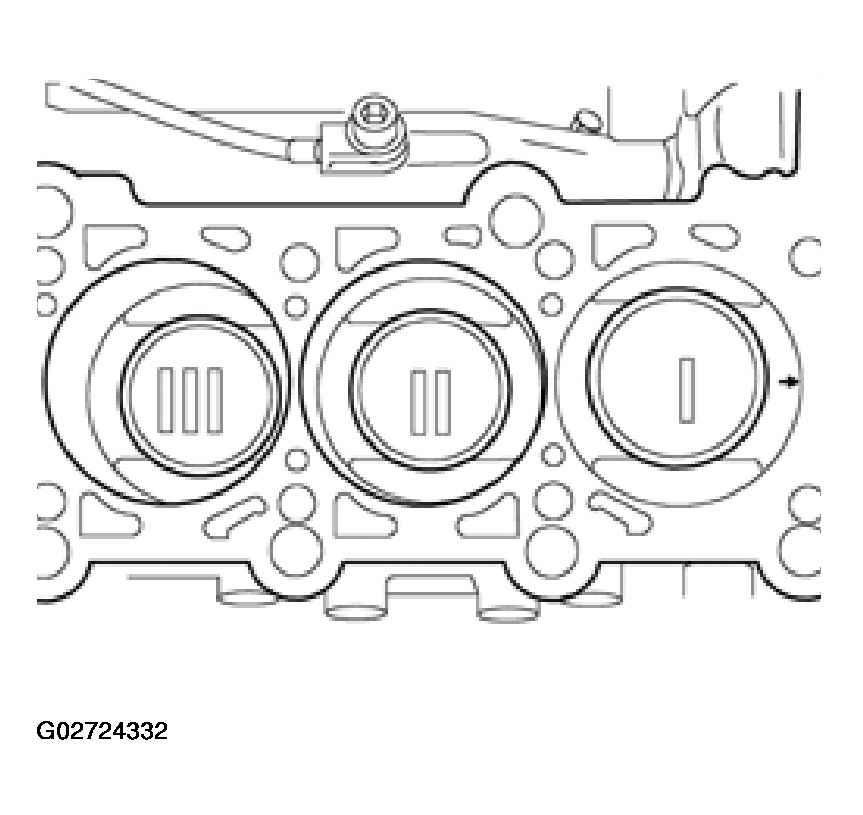

Position: arrow on piston crown must always face in direction of travel.
- Mark cylinder number on piston crown with waterproof felt pen.
NOTE:
Do not use a center-punch or similar, as pistons have a special coating.
Courtesy of AUDI OF AMERICA, INC.
