Checking piston diameter
Measure pistons approx. 10 mm from bottom of skirt, at 90° to piston pin axis.
Difference between actual and nominal diameter: not more than 0.04 mm.

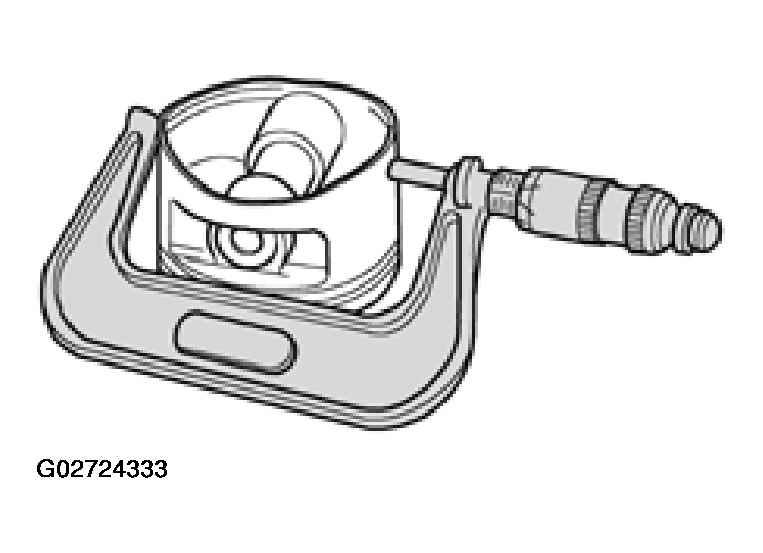

Fig 1: Checking Piston Diameter
Courtesy of AUDI OF AMERICA, INC.
