Engine Mechanical - 2.7L V6 BITURBO - APB, Bel
>>
Engine - Crankshaft, Cylinder block
>>
Engine crankshaft/crankcase, disassembly and assembly
>>
Needle bearing in dual-mass flywheel, removing and installing
Needle bearing in dual-mass flywheel, removing and installing
Pull out needle bearing with puller, such as KUKKO 21/2 and KUKKO 22/1.
Drive in with drift 3264.

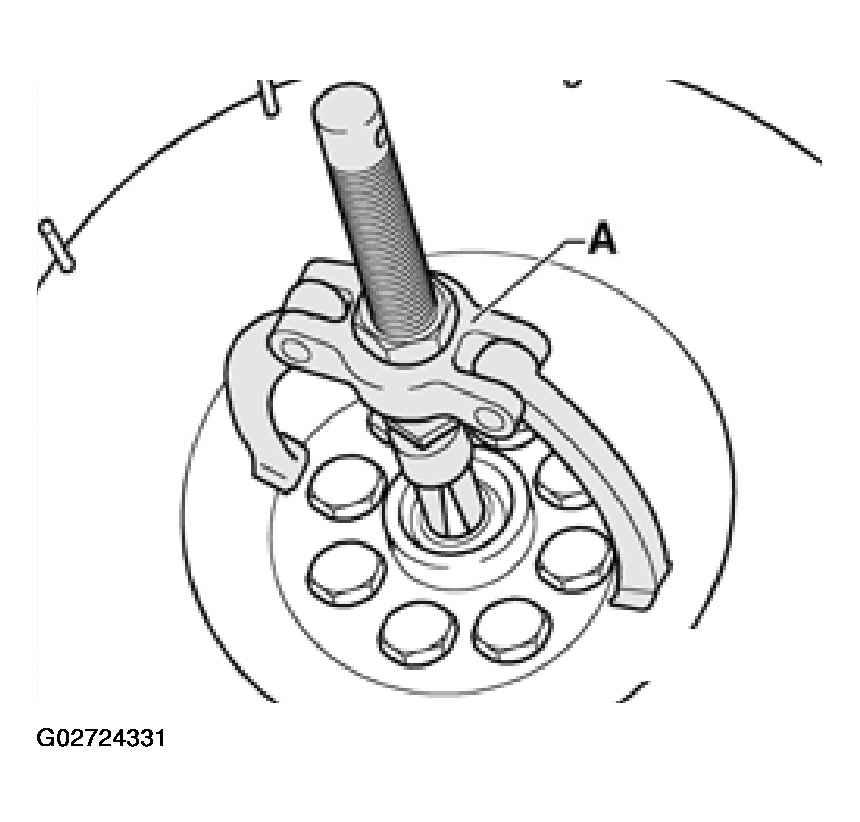

Fig 1: Pulling Out Crankshaft Needle (Pilot) Bearing With Puller
Courtesy of AUDI OF AMERICA, INC.
