B - Drive plate: Removing

• Remove transmission.

  See 5 SPD, AUTOMATIC TRANSMISSION 01V .

• Turn crankshaft to TDC by hand. Marks -A- and -B- must be aligned.
  NOTE: Turn over the engine at the central bolt on the crankshaft.
• Check position of camshafts: larger holes in securing plates on camshaft sprockets must align opposite one another on inside. If not, turn crankshaft one revolution further.
• Remove sealing plug from cylinder block, left.

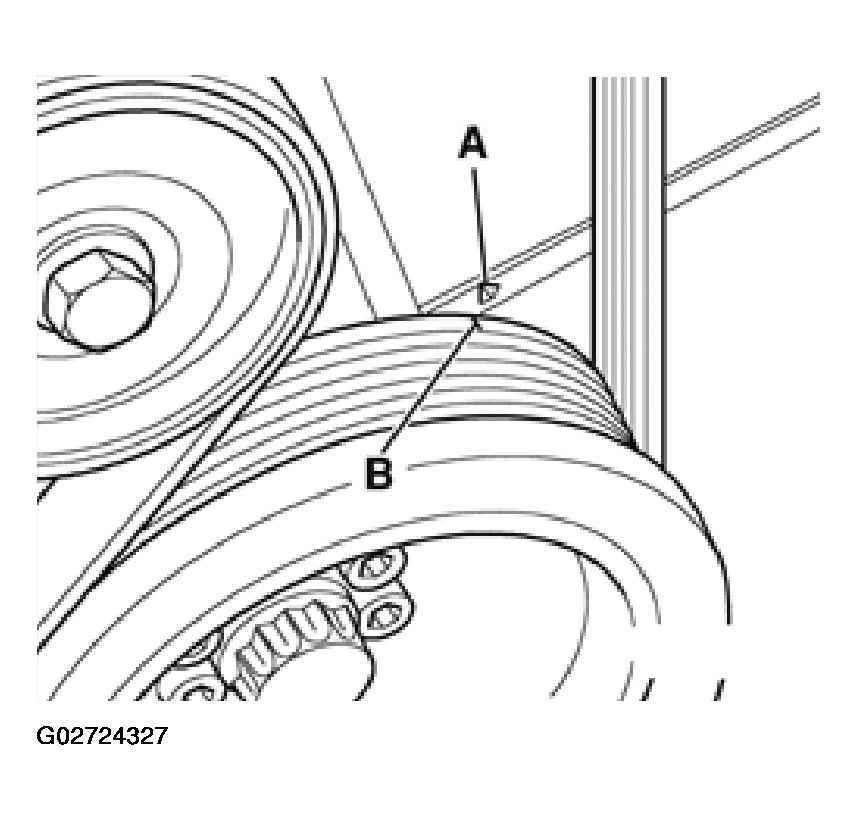

Fig 1: Turning Crankshaft To TDC By Hand

Courtesy of AUDI OF AMERICA, INC.

TDC drilling in crankshaft must be visible (or able to be felt) in line with the sealing plug hole.

• Screw clamping bolt 3242 for crankshaft into sealing plug hole and tighten.
• Mark positions of holes in drive plate, shim -1- and washer -2- in relation to crankshaft.
• Mark positions of shim -1- in front of drive plate and washer -2- behind drive plate.

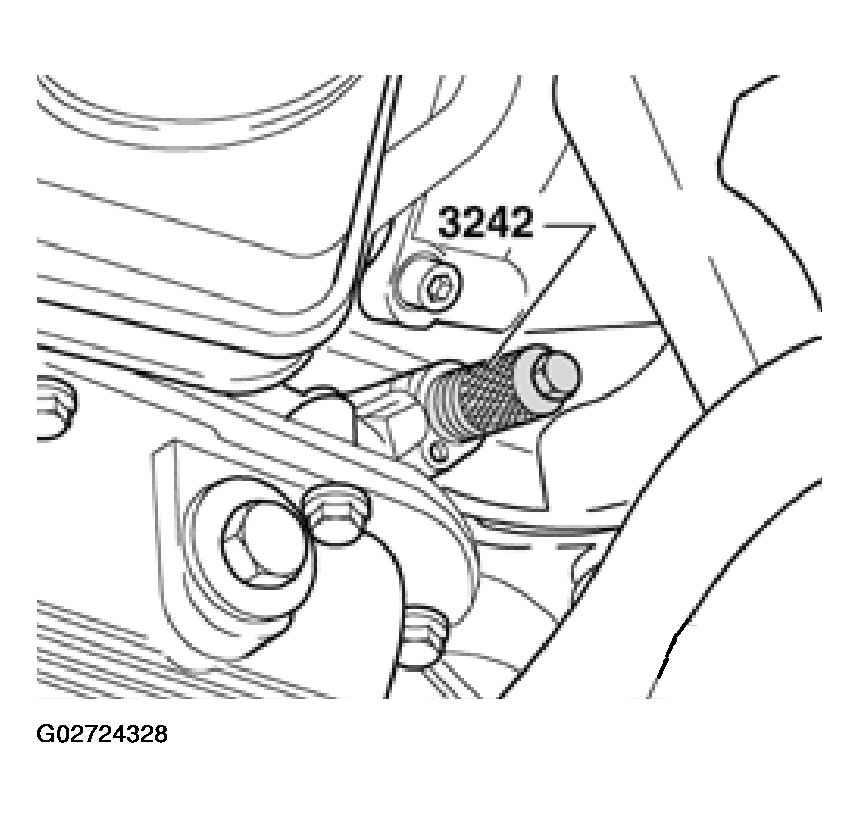

Fig 2: Screwing Clamping Bolt 3242 For Crankshaft Into Sealing Plug Hole

Courtesy of AUDI OF AMERICA, INC.
