B - Drive plate: Installing

NOTE:

Short-engines and exchange engines are supplied without a bushing in the crankshaft. On vehicles with an automatic transmission, always install a new bushing before installing the drive plate.
Always replace drive plate securing bolts.

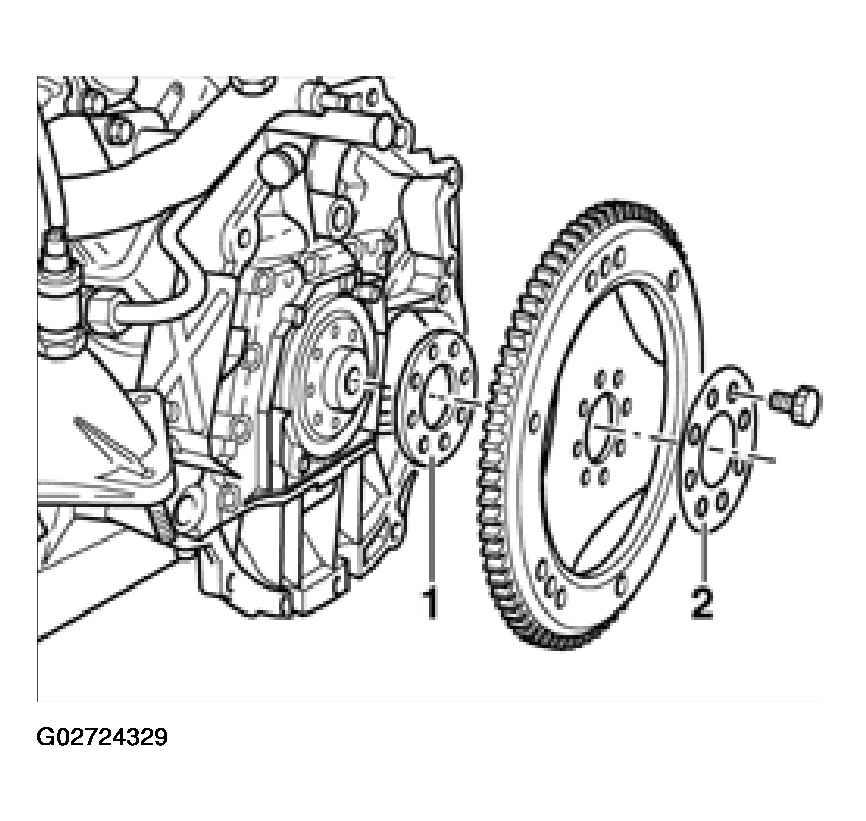

Fig 1: Installing Drive Plate With Washer

Courtesy of AUDI OF AMERICA, INC.

TIGHTENING TORQUE: DRIVE PLATE

Component

Tightening torques

Drive plate to crankshaft

60 Nm + 90 Degree Turn⁽¹⁾

⁽¹⁾	Always replace drive plate securing bolts.

Measure distance -a- at three points and calculate average value.
- Distance -a- = approx. 12.3 mm.
Install a different shim if necessary.

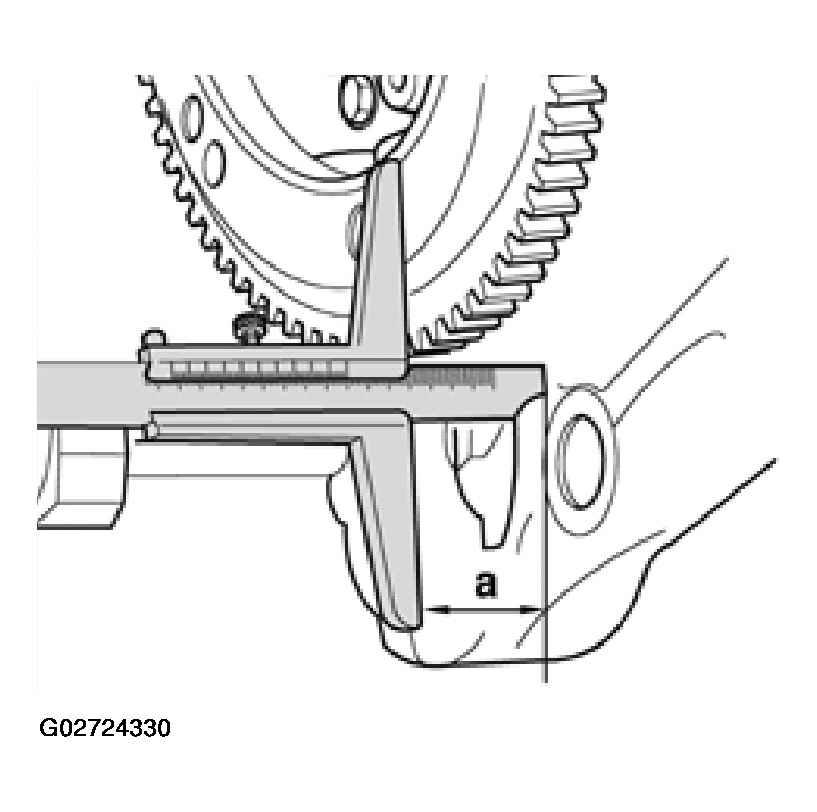

Fig 2: Measuring Drive Plate Installed Distance -a- At Three Points

Courtesy of AUDI OF AMERICA, INC.

NOTE: Before installing the transmission, check that the dowel sleeves for locating engine/transmission are installed in the engine flange.
