Vehicles with manual transmission

• Drain coolant. See COOLING SYSTEM, DRAINING AND FILLING .
• Remove transmission

Vehicles with four-wheel drive

See 6 SPD. MANUAL TRANSMISSION 01E .

• Remove clutch.
• With crankshaft at TDC, screw in clamping bolt 3242.
• Mark position of flywheel relative to engine -arrows-.
• Remove dual-mass flywheel.
• Remove sealing flange.

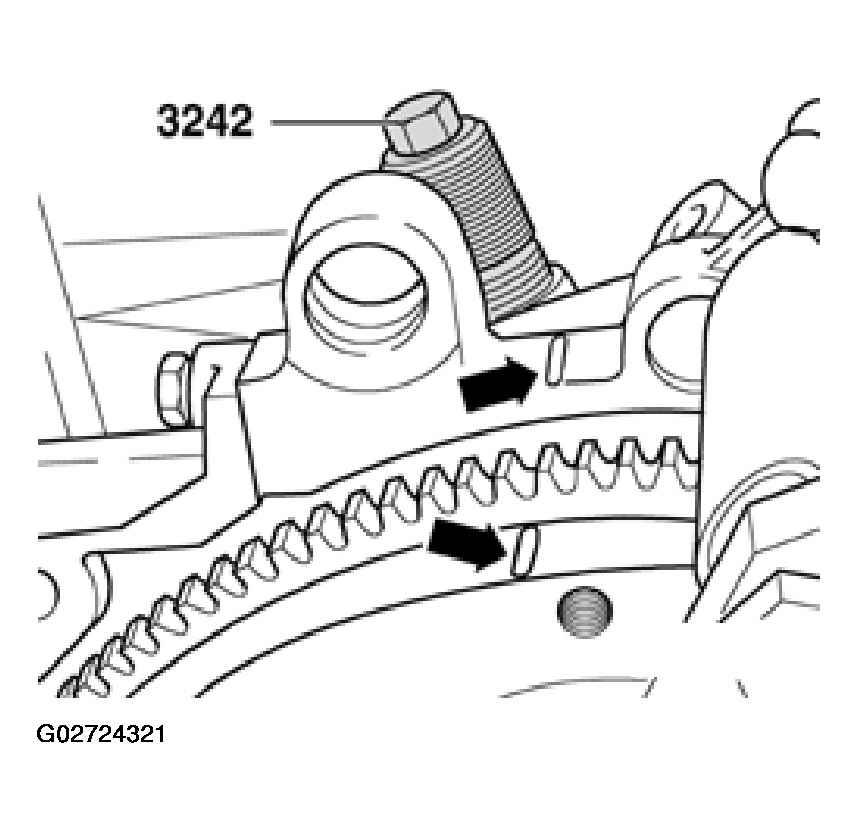

Fig 1: Screwing In Clamping Bolt 3242 To Secure Crankshaft At TDC

Courtesy of AUDI OF AMERICA, INC.
