Crankshaft oil seals, replacing: Installing

Vehicles with all-wheel drive

See 6 SPD. MANUAL TRANSMISSION 01E .

TIGHTENING TORQUE: DUAL-MASS FLYWHEEL

Component

Tightening torques

Dual-mass flywheel to crankshaft

60 Nm + 180 Degree Turn⁽¹⁾

Clutch to dual-mass flywheel

20 Nm

⁽¹⁾	Always replace securing bolts for dual-mass flywheel.

NOTE: Always replace securing bolts for dual-mass flywheel.

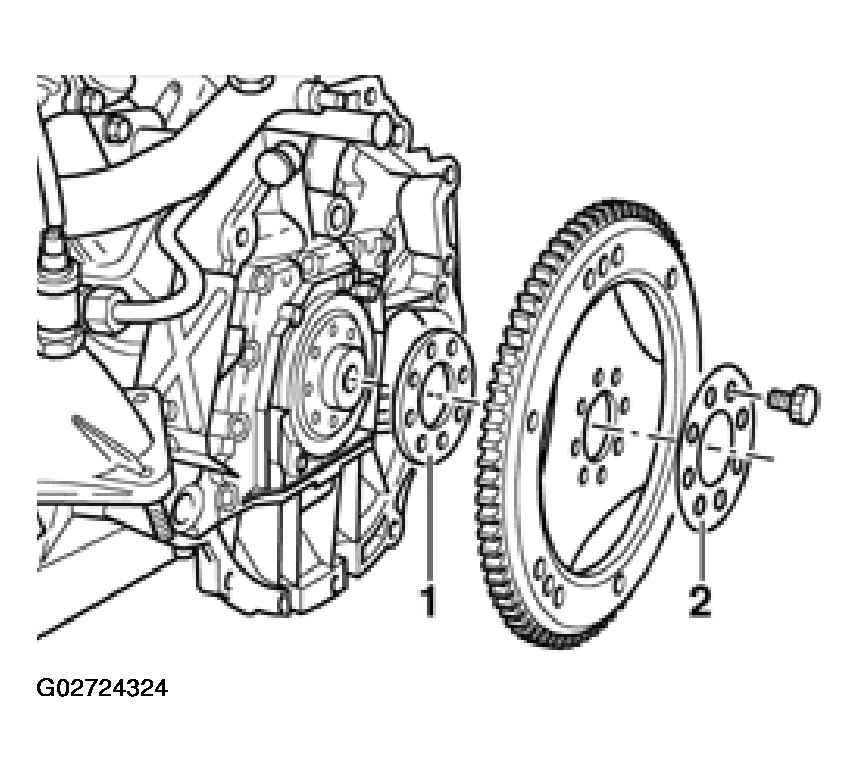

Install drive plate with washer -2- and shim -1- (3.0 mm or 4.0 mm).
NOTE:
- Short engines and exchange engines are supplied without a bushing in the crankshaft. On vehicles with an automatic transmission, always install a new bushing before installing the drive plate.
- Always replace drive plate securing bolts.

Fig 1: Installing Drive Plate With Washer

Courtesy of AUDI OF AMERICA, INC.

TIGHTENING TORQUE: AUTOMATIC TRANSMISSION DRIVE PLATE

Component

Tightening torques

Drive plate to crankshaft

60 Nm + 90 Degree Turn⁽¹⁾

⁽¹⁾	Always replace securing bolts for drive plate.

NOTE: Always replace securing bolts for drive plate.

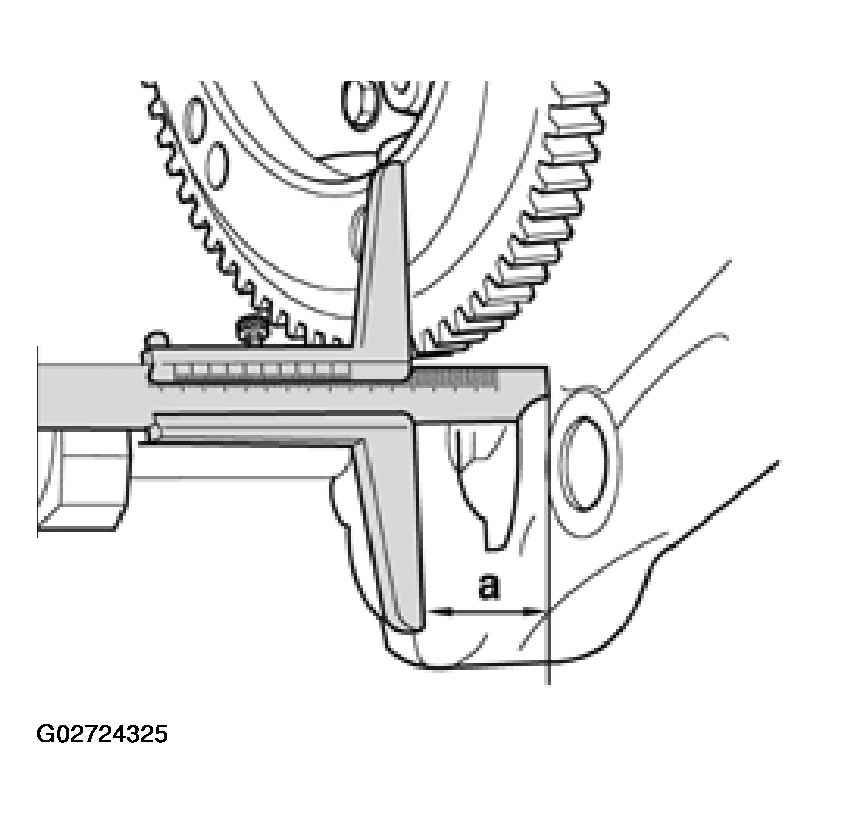

Measure distance -a- at three points and calculate average value.
- Distance -a- = approx. 29.9 mm.
Install a different shim if necessary.

Fig 2: Measuring Drive Plate Installed Distance -a-

Courtesy of AUDI OF AMERICA, INC.

NOTE: Before installing the transmission, check that the dowel sleeves for locating engine/transmission are installed in the engine flange.

See 5 SPD, AUTOMATIC TRANSMISSION 01V .
