A - Toothed belt end
- Remove toothed belt. See TOOTHED BELT, REMOVING AND INSTALLING .
- Remove toothed belt sprocket from crankshaft

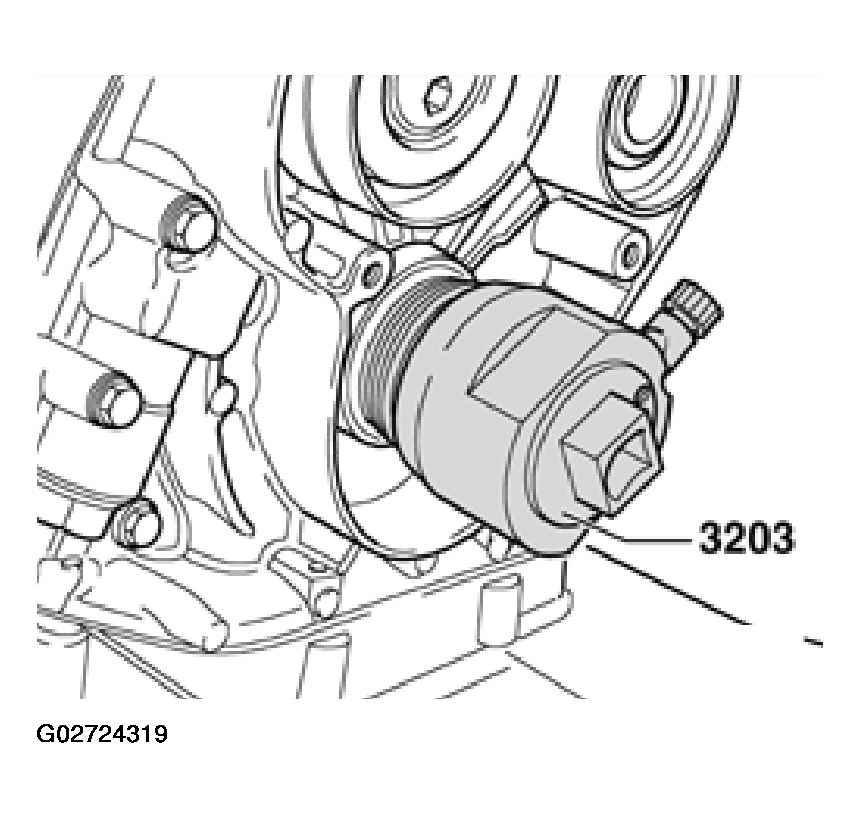

- Pull out oil seal with oil seal extractor 3203.
- Clean contact surface and sealing surface.NOTE: Do not lubricate sealing lip or outer circumference of seal before pressing in.
- Push on seal using fitting sleeve 3202/1.

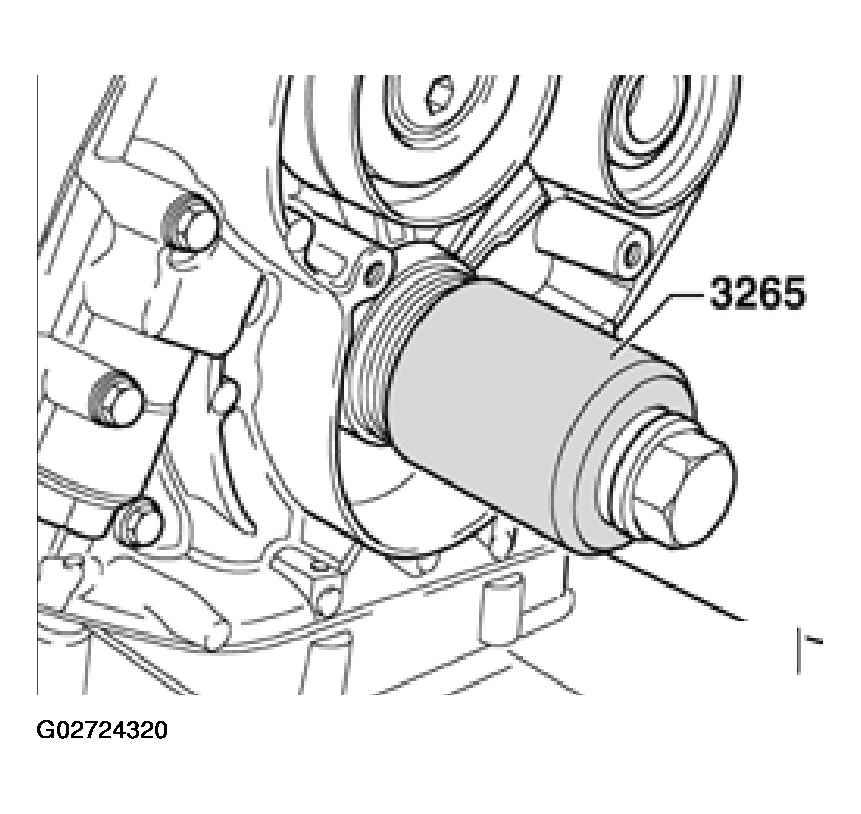

- Press in seal until flush using fitting sleeve 3265 and central bolt.
