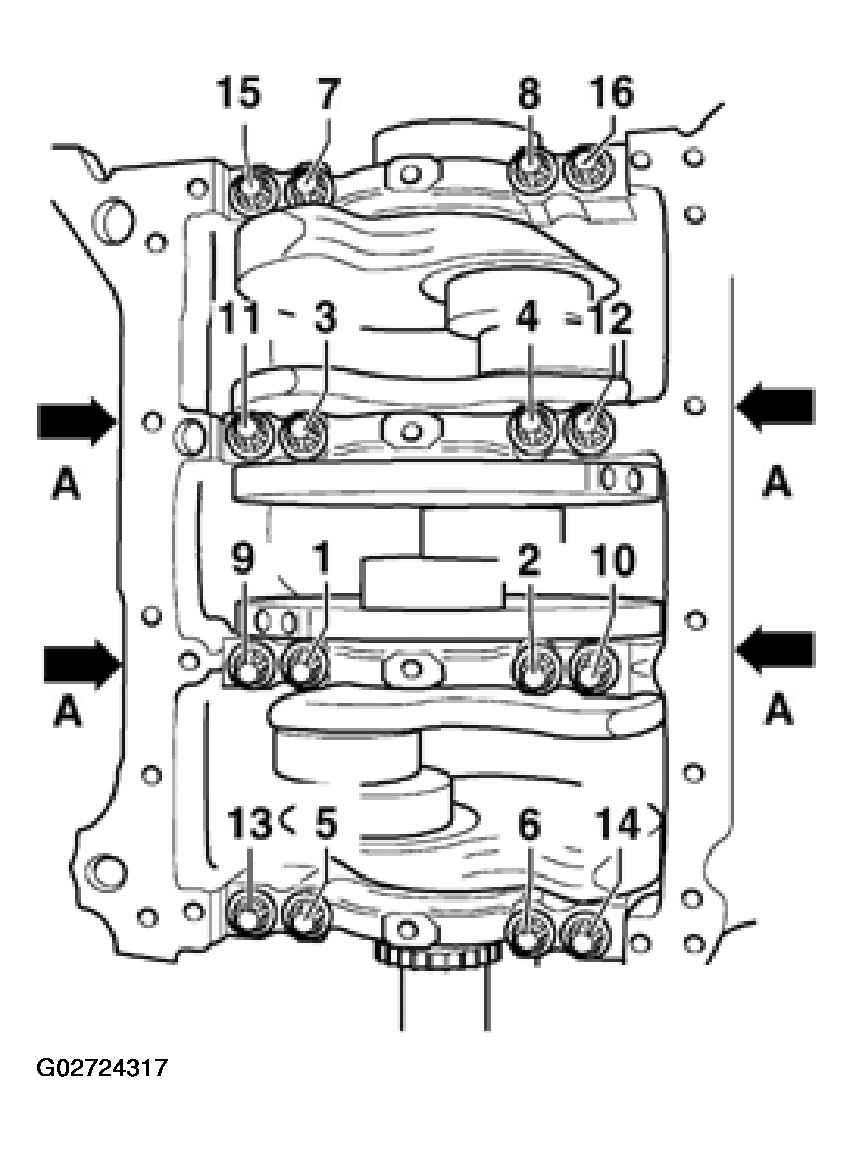

Tightening sequence
- Stage 1 - Tighten all bolts in sequence shown (1 - 16) to 30 Nm.
- Stage 2 - Tighten all bolts in sequence shown (1 - 16) to 60 Nm.
- Stage 3 - Using a fixed wrench, turn all bolts in sequence shown (1 - 16) 90° further.
- Tighten bolts -A- to 25 Nm.
