Axial clearance
NOTE:
Do not interchange used bearings.

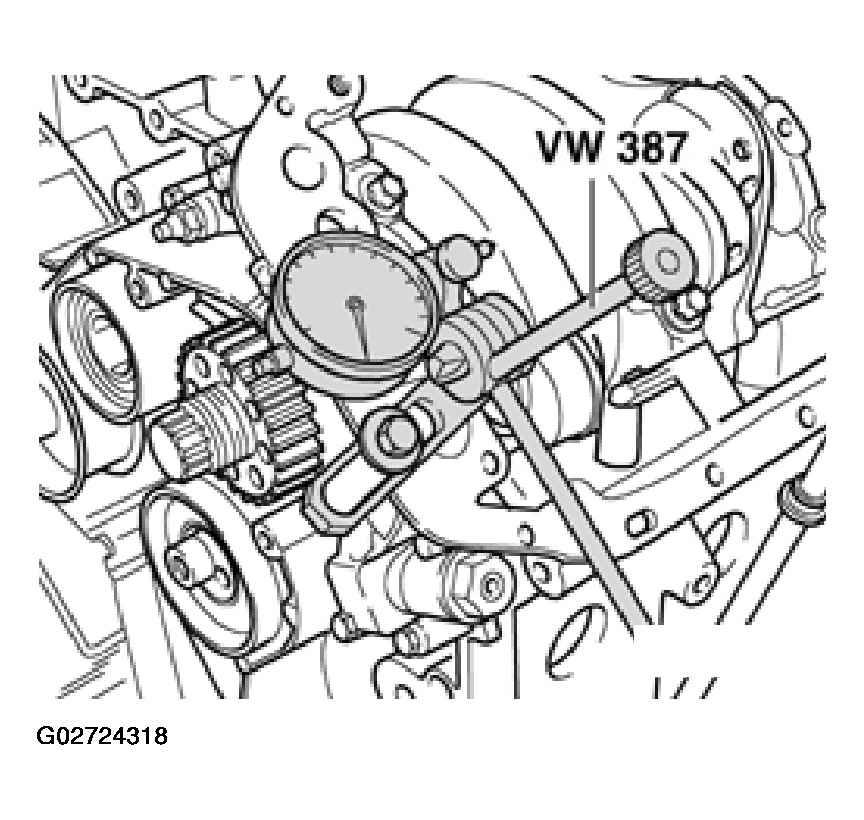

- Attach dial indicator with universal dial indicator bracket VW 387 to oil pump and bring it into contact with crank web. See Fig 1.
- Press crankshaft against dial indicator by hand and set gauge to -0-.
- Press crankshaft away from dial indicator.
- Note reading:
CRANKSHAFT AXIAL CLEARANCE (END PLAY) SPECIFICATIONS
| Clearance when new | Wear limit |
|---|---|
| 0.090 - 0.251 mm | 0.28 mm |
