Engine Mechanical - 2.7L V6 BITURBO - APB, Bel
>>
Engine - Assembly
>>
Engine, removing and installing
>>
Vacuum layout - partial systems
>>
Charge air pressure control system
Charge air pressure control system
NOTE:
The following list refers to items in
Fig 1
.
- Turbocharger, Bank 1
- Wastegate Bypass Regulator Valve -N75-
- Distributor piece
- Turbocharger, Bank 2

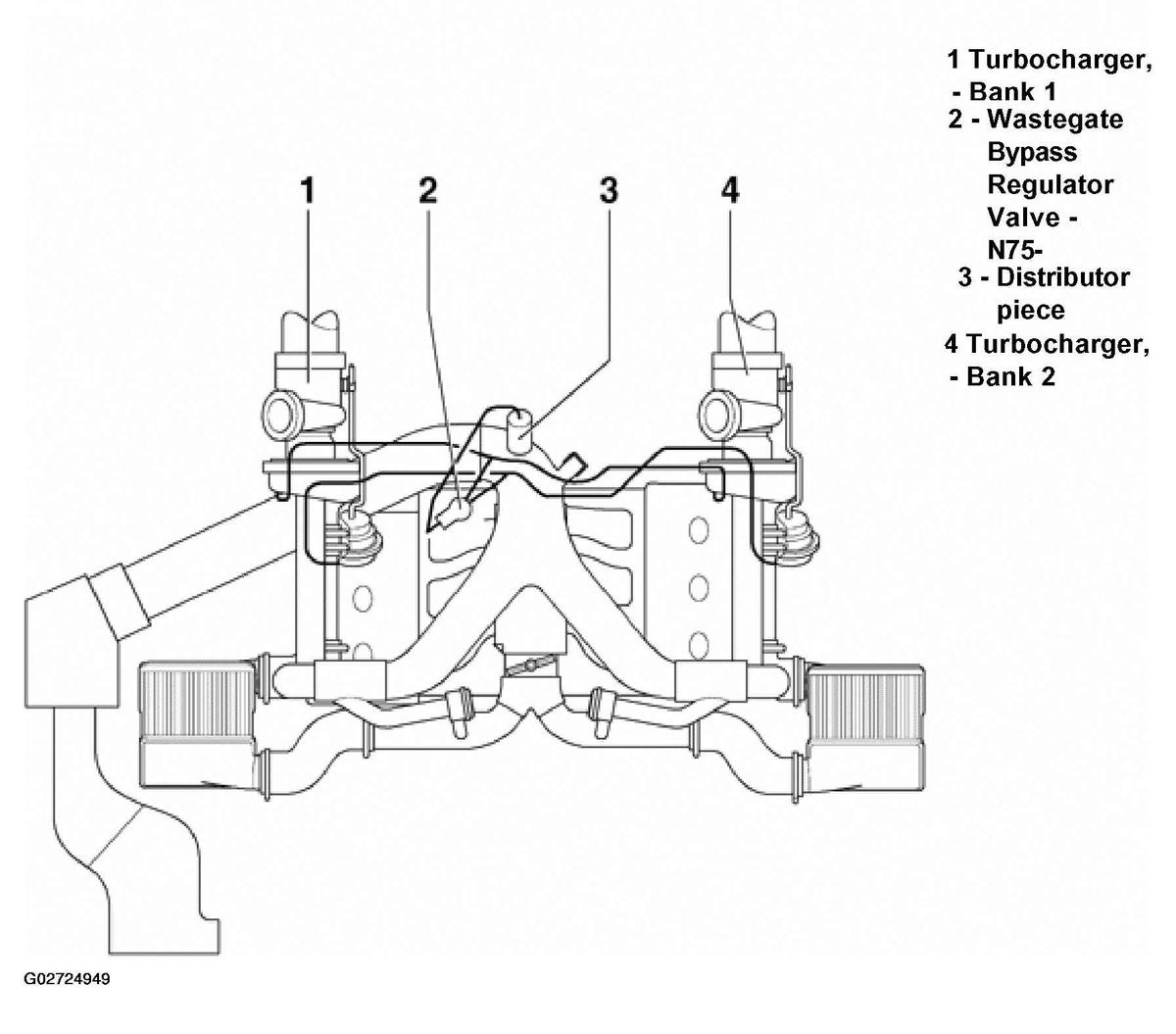

Fig 1: Identifying Charge Air Pressure Control System With Vacuum Diagram
Courtesy of AUDI OF AMERICA, INC.
