Air diversion system (air "recirculation" on overrun)

NOTE: The following list refers to items in Fig 1.
  1. - Recirculating valve for turbo charger -N249-
  2. - Non-return valve (arrow indicates direction of flow)
  3. - Vacuum reservoir
  4. - Mechanical air recirculation valves

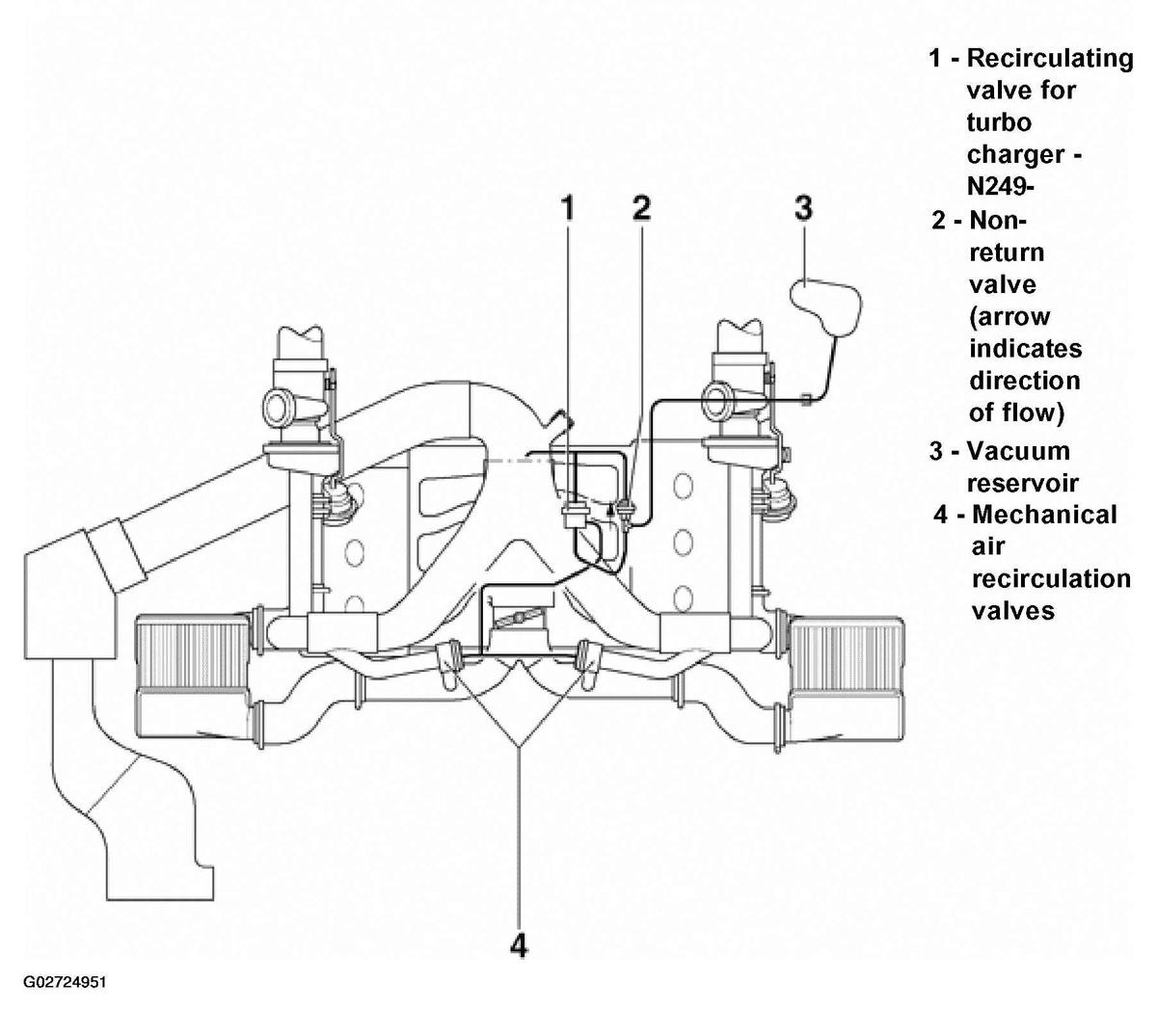

Fig 1: Identifying Air Diversion System Components With Vacuum Diagram
G02724951Courtesy of AUDI OF AMERICA, INC.
