Vehicles without Secondary Air Injection (AIR)

NOTE: The following list refers to items in Fig 1.
  1. - To reservoir under right front wheel housing shell.
  2. - Air cleaner
  3. - Mass Air Flow (MAF) sensor
  4. - Evaporative Emission (EVAP) canister
  5. - Turbocharger engine bank 1
  6. - Check valve (arrow indicates direction of flow through valve)
  7. - Wastegate bypass regulator valve -N75
  8. - Evaporative Emission (EVAP) canister purge regulator valve -N80-
  9. Crankcase check valve
  10. - Collector housing for crankcase ventilation
  11. - To power brake booster
  12. - Check valve (arrow indicates direction of flow through valve)
  13. - Vacuum limiter valve
  14. - Fuel pressure regulator
  15. - Check valve (arrow indicates direction of flow through valve)
  16. - To Leak Detection Pump (LDP) -V144-
  17. - Vacuum reservoir
  18. - Turbocharger engine bank 2
  19. - Pressure unit for charge air pressure regulation
  20. - Charge air cooler engine bank 2
  21. - Pressure hose engine bank 2
  22. - Pressure line engine bank 2
  23. - Cut-out valve (mechanical circulation valve)
  24. - Pressure hose
  25. - Recirculating valve for turbocharger - N249-
  26. - Connection hose
    • For both charge air coolers
  27. - Connection hose
  28. - Cut-out valve (mechanical circulation valve)
  29. - Check valve for crankcase ventilation
  30. - Pressure line engine bank 1
  31. - Pressure hose engine bank 1
  32. - Charge air pressure cooler engine bank 1
  33. - Pressure unit for charge air pressure regulation

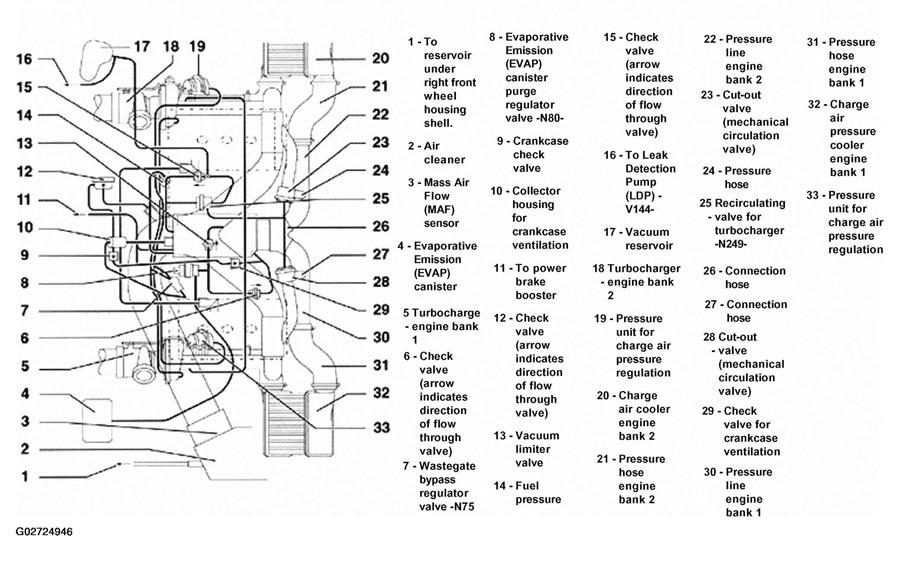

Fig 1: Vacuum Diagram, Complete - Vehicles Without Secondary Air Injection (AIR)
G02724946Courtesy of AUDI OF AMERICA, INC.
