Manual transmission

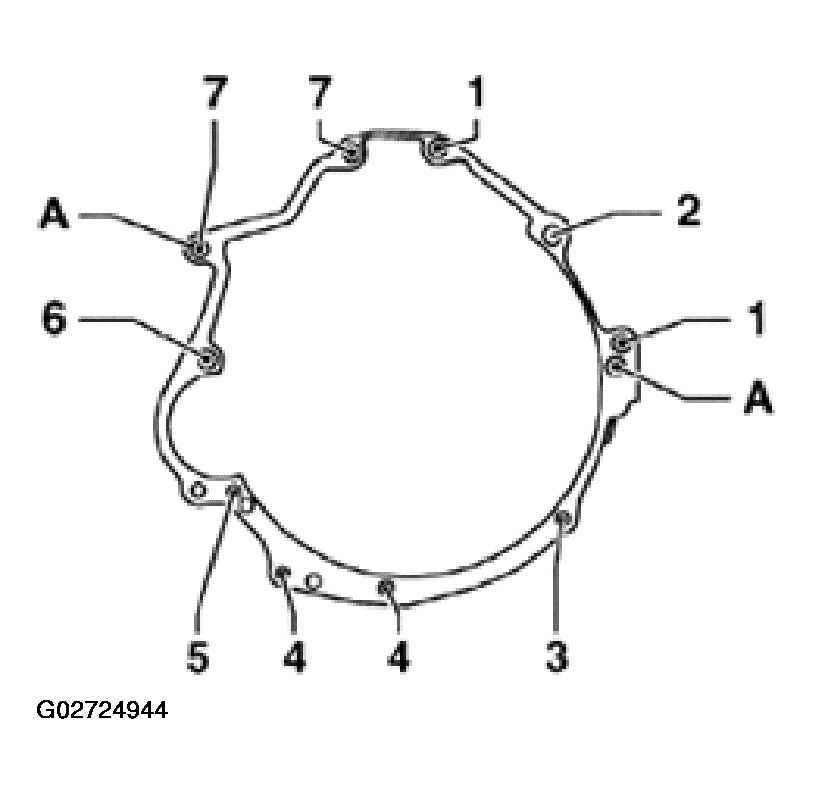

Transmission to engine (6-cylinder)
MANUAL TRANSMISSION-TO-ENGINE TIGHTENING TORQUES
| Item No. |
Bolt |
Number |
Nm |
| 1 |
M 12 x 90 |
2 |
65 |
| 2 |
M 12 x 100 |
1 |
65 |
| 3 |
M 10 x 60 |
1 |
45 |
| 4 |
M 10 x 60 |
2 |
45 |
| 5 |
M 10 x 150 |
1 |
65 |
| 6 |
M12 x 130 |
1 |
65 |
| 7 |
M12 x 80 |
2 |
65 |
-A- Centering sleeves
Courtesy of AUDI OF AMERICA, INC.
