Automatic transmission
Engine/transmission mountings (6-cylinder engine)

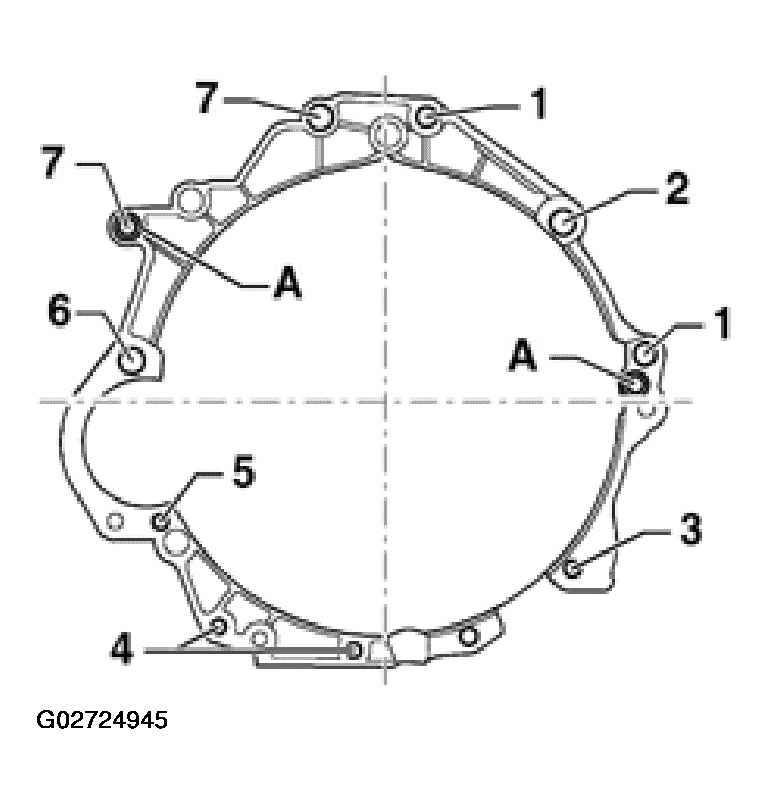

AUTOMATIC TRANSMISSION-TO-ENGINE TIGHTENING TORQUES
| Item No. | Bolt | Number | Nm |
|---|---|---|---|
| 1 | M 12 x 90 | 2 | 65 |
| 2 | M 12 x 100 | 1 | 65 |
| 3 | M 10 x 70 | 1 | 45 |
| 4 | M 10 x 60 | 2 | 45 |
| 5 | M 10 x 100 | 1 | 65 |
| 6 | M12 x 110 | 1 | 65 |
| 7 | M12 x 80 | 2 | 65 |
-A- Dowel sleeves for centering
TIGHTENING TORQUES: ENGINE INSTALLATION
| Threaded assemblies | Tightening torque |
|---|---|
| Nuts and bolts M6 | 10 Nm |
| Nuts and bolts M8 | 20 Nm |
| Nuts and bolts M10 | 45 Nm |
| Nuts and bolts M12 | 60 Nm |
| Except for the following: | |
| Head line to turbocharger | 25 Nm |
| Heat shield to turbocharger | 10 Nm |
| Clamp for exhaust pipe | 40 Nm |
| Engine support to engine mount M10 | 45 Nm |
| A/C Compressor to bracket | 25 Nm |
| Torque support | 45 Nm |
| Heat shields above drive axles to transmission | 25 Nm |
| Torque converter | 85 Nm |
For fan, see VISCOUS FAN, REMOVING AND INSTALLING .
