All models

Mark positions of securing points -1- and locating sleeves -2- under engine mountings on right and left sides.
Remove nuts -1- at engine mountings on left and right sides.
NOTE: When installing, make sure that locating sleeves -2- engage in position.

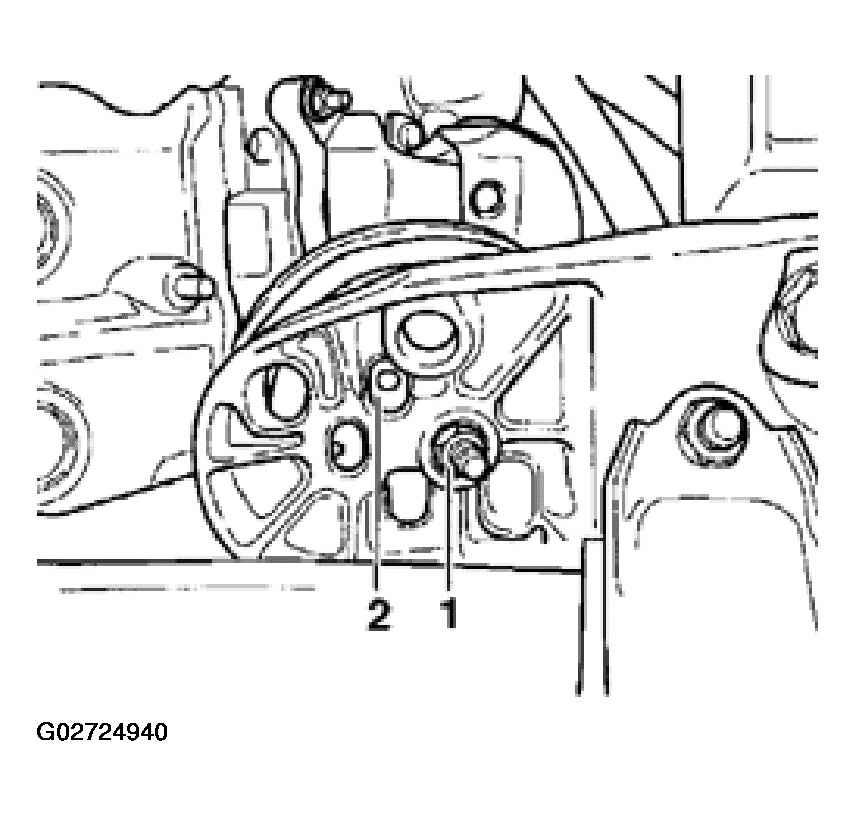

Fig 1: Removing Nuts At Engine Mountings On Left And Right Sides
Courtesy of AUDI OF AMERICA, INC.
Set up support bar 10-222 A on bolted flanges of wing panels using 10-222A1 and extension 10-222A3.
Lift engine upward with support bar 10-222A.
Remove engine/transmission bolts from underneath.
Remove support bar.
Remove engine/transmission bolts from above.

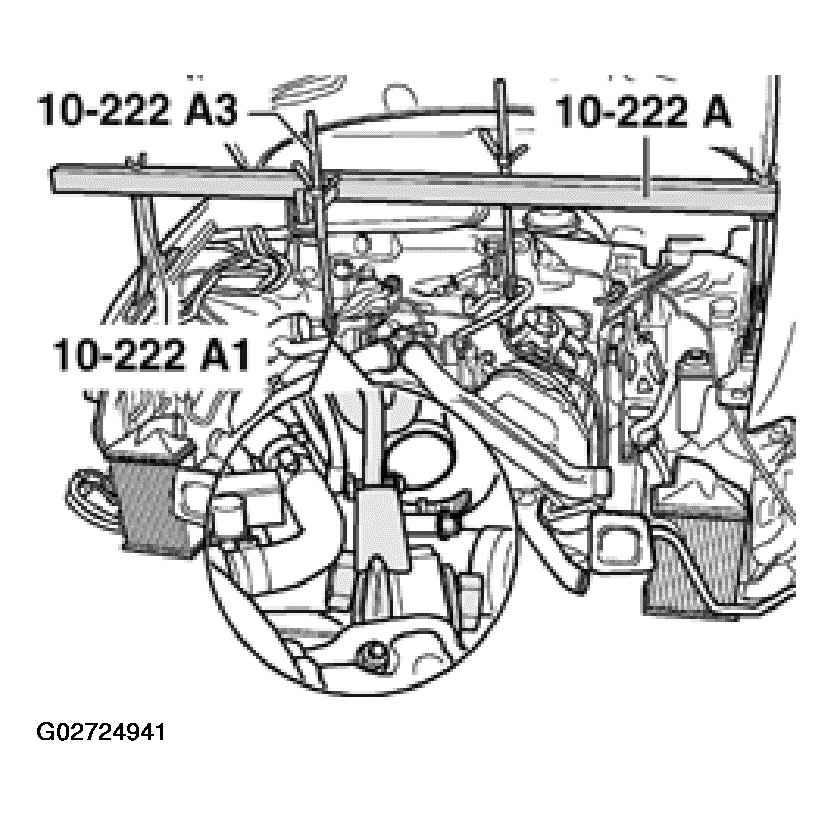

Fig 2: Lifting Engine Upward With Support Bar 10-222A
Courtesy of AUDI OF AMERICA, INC.
Attach lifting tackle 2024 A at rear right and front left, and secure attachment points.
NOTE: To balance the center of gravity of the engine, secure the hook attachments in the positions shown in the illustration.

WARNING: The hook attachments and locating pins on the lifting tackle must be secured with locking pins.

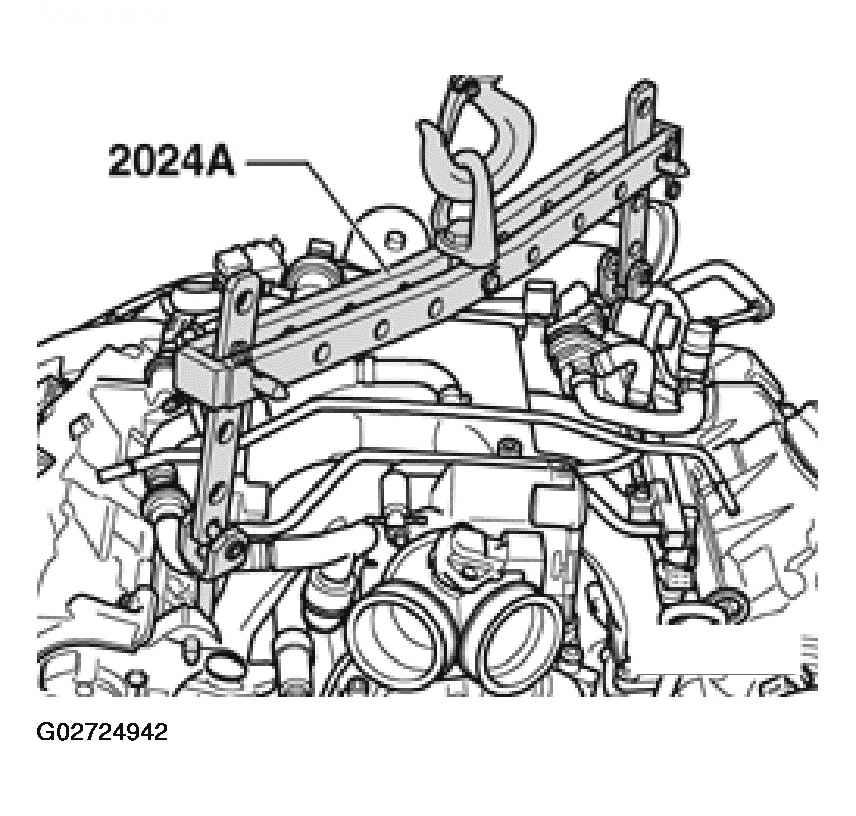

Fig 3: Attaching Lifting Tackle At Rear Right And Front Left
Courtesy of AUDI OF AMERICA, INC.
Remove front left wheel.
Support transmission using floor jack.
Push engine crane VAG1202A into position and attach to engine sling.
NOTE: Verify that all hoses and lines between engine and transmission have been disconnected.
Carefully pull engine out toward front until free.
Guide engine forward out of engine compartment.
Remove spacer between engine and transmission.
