Diagnostic Trouble Code (DTC) table

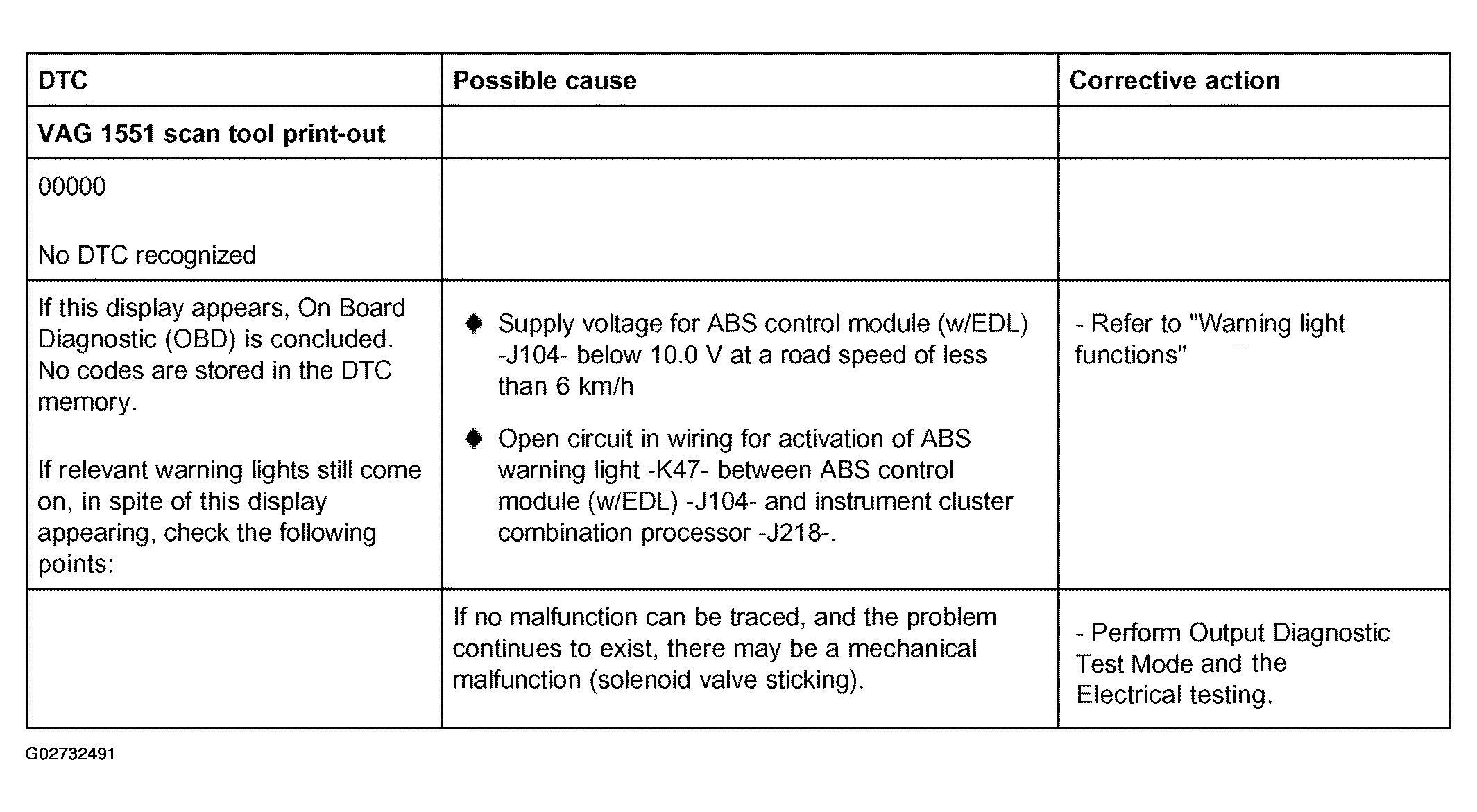

Fig 1: ABS, EDL And ASR - DTC 00000 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For warning light functions, see WARNING LIGHT FUNCTIONS OVERVIEW .
For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03) .
For electrical testing, see ELECTRICAL TESTING .

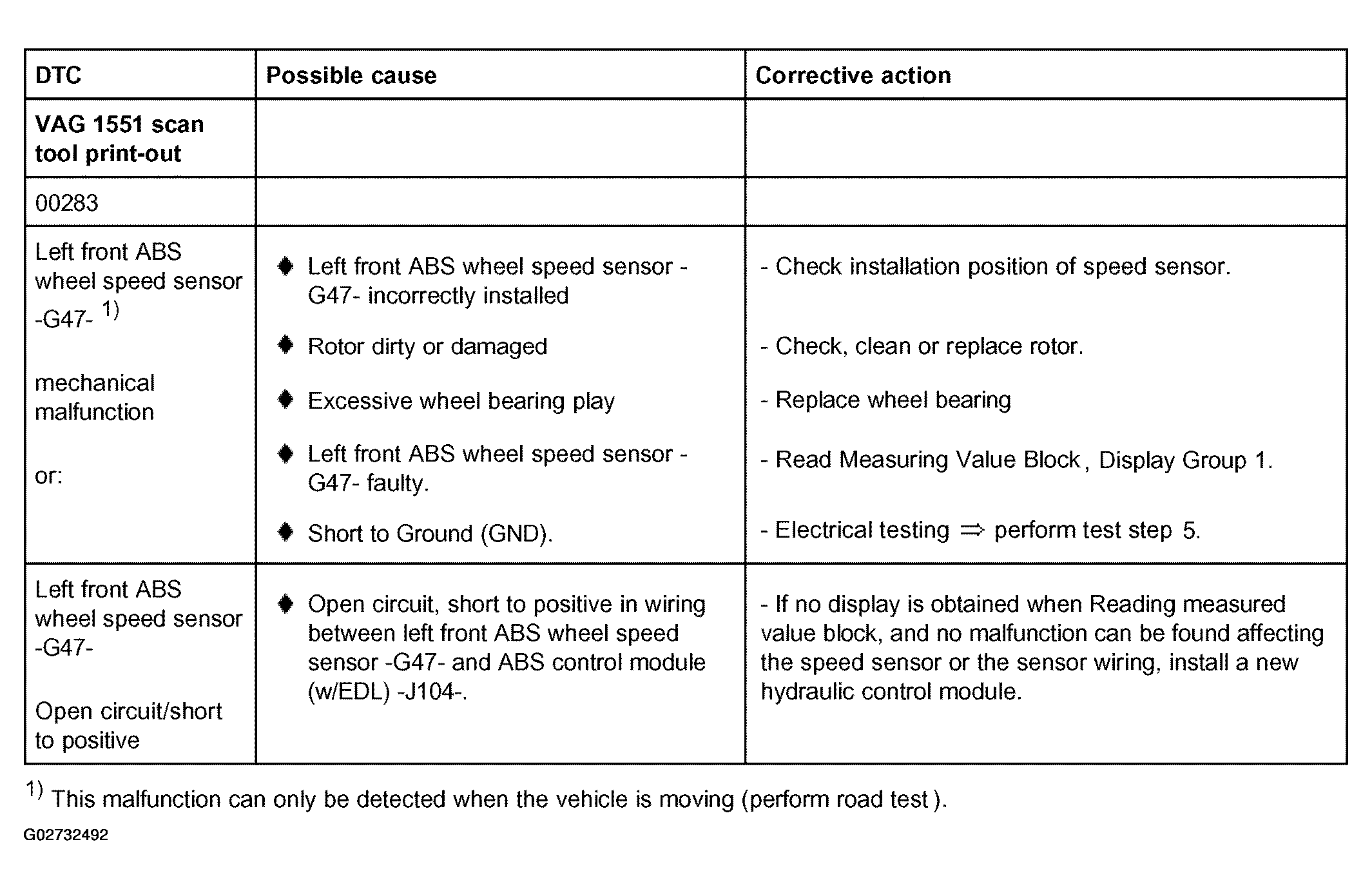

Fig 2: ABS, EDL And ASR - DTC 00283 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC .
To replace front wheel bearing, see SUSPENSION - FRONT .
For output diagnostic test mode, see OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03) .
For electrical testing, see ELECTRICAL TESTING .
For road test, see ROAD TESTING .

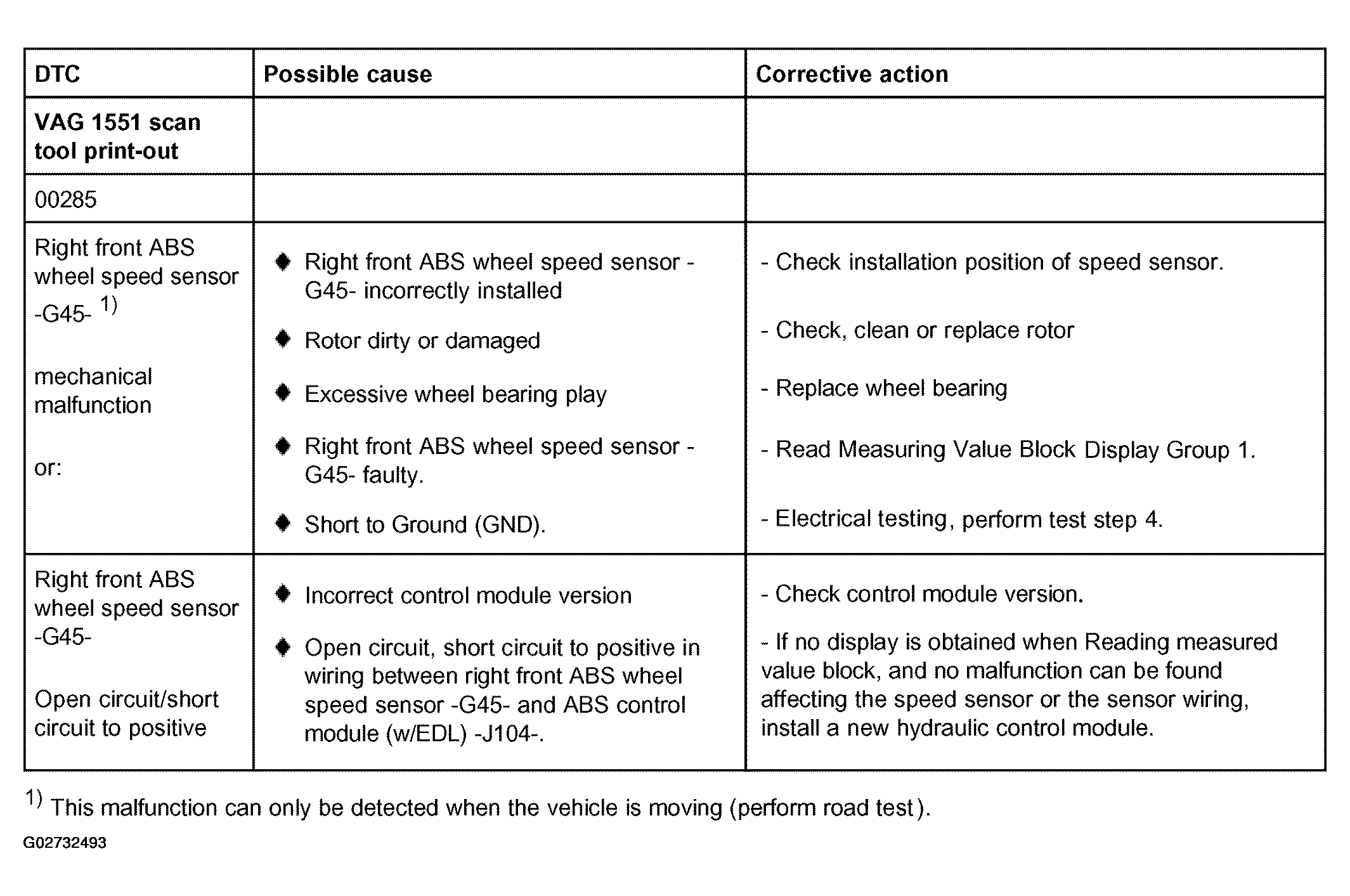

Fig 3: ABS, EDL And ASR - DTC 00285 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC .
To replace front wheel bearing, see SUSPENSION - FRONT .
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
For road test, see ROAD TESTING .

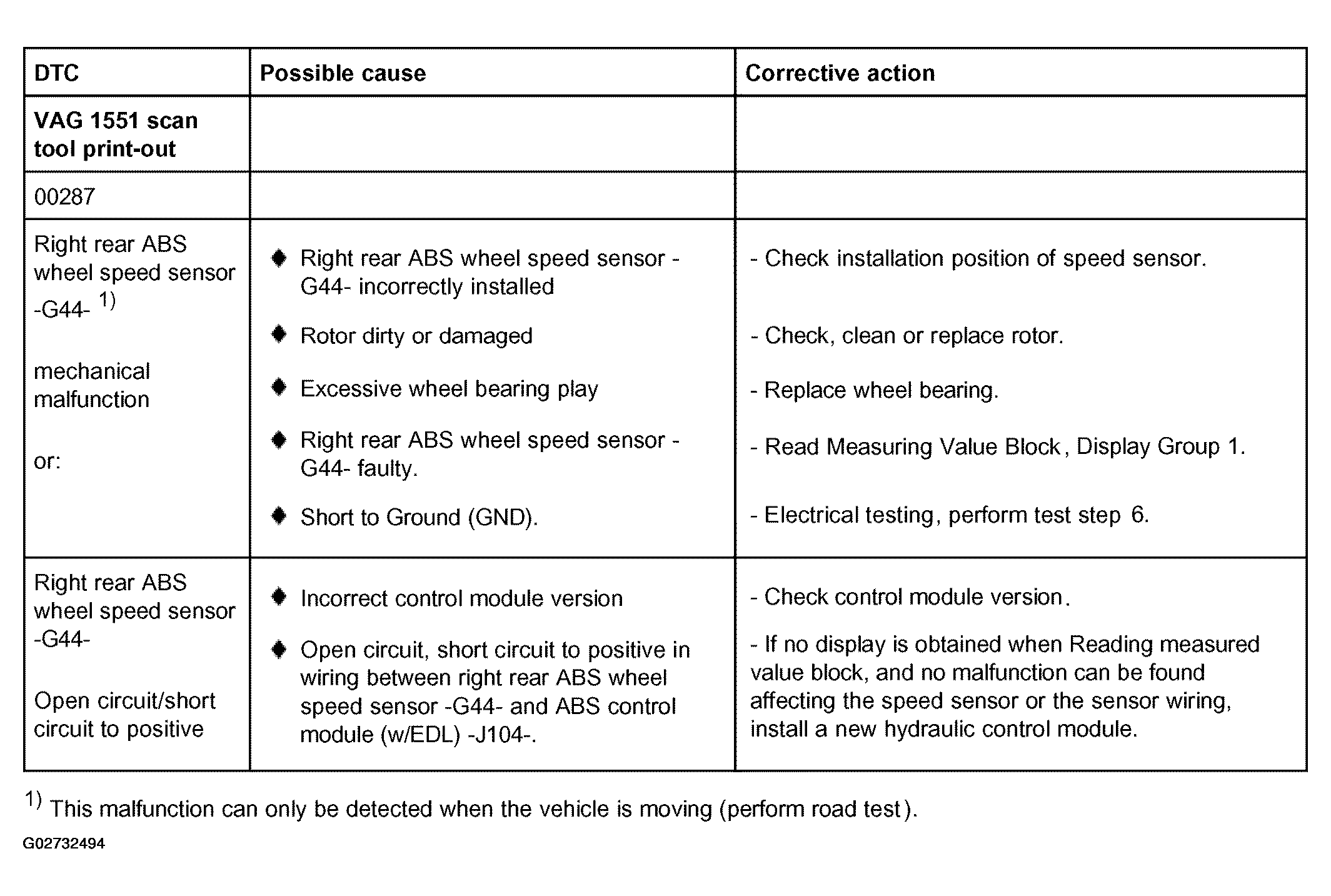

Fig 4: ABS, EDL And ASR - DTC 00287 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC .
To replace rear wheel bearing, see SUSPENSION - REAR article.
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
For road test, see ROAD TESTING .

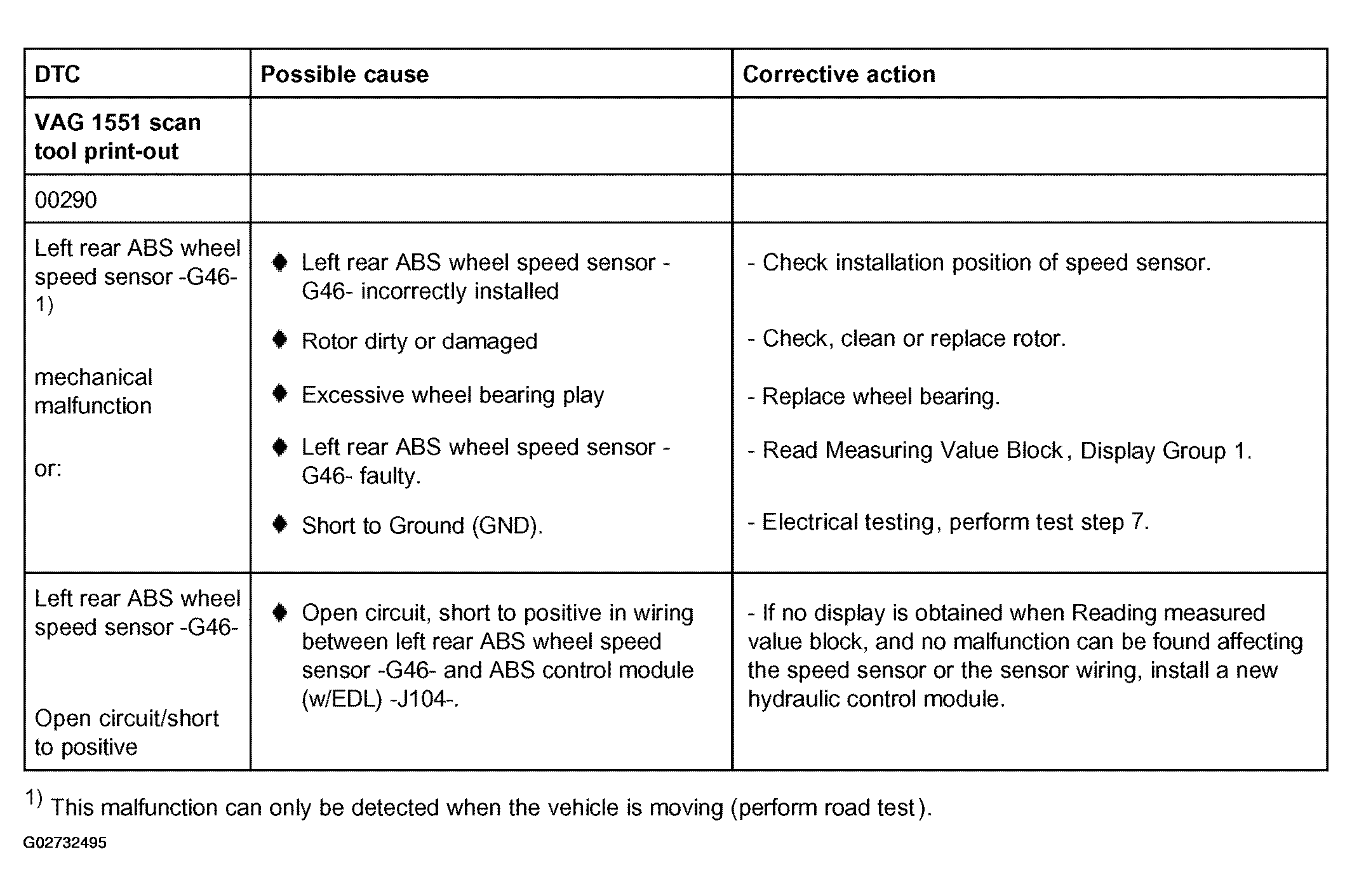

Fig 5: ABS, EDL And ASR - DTC 00290 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC .
To replace rear wheel bearing, see SUSPENSION - REAR article.
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
For road test, see ROAD TESTING .

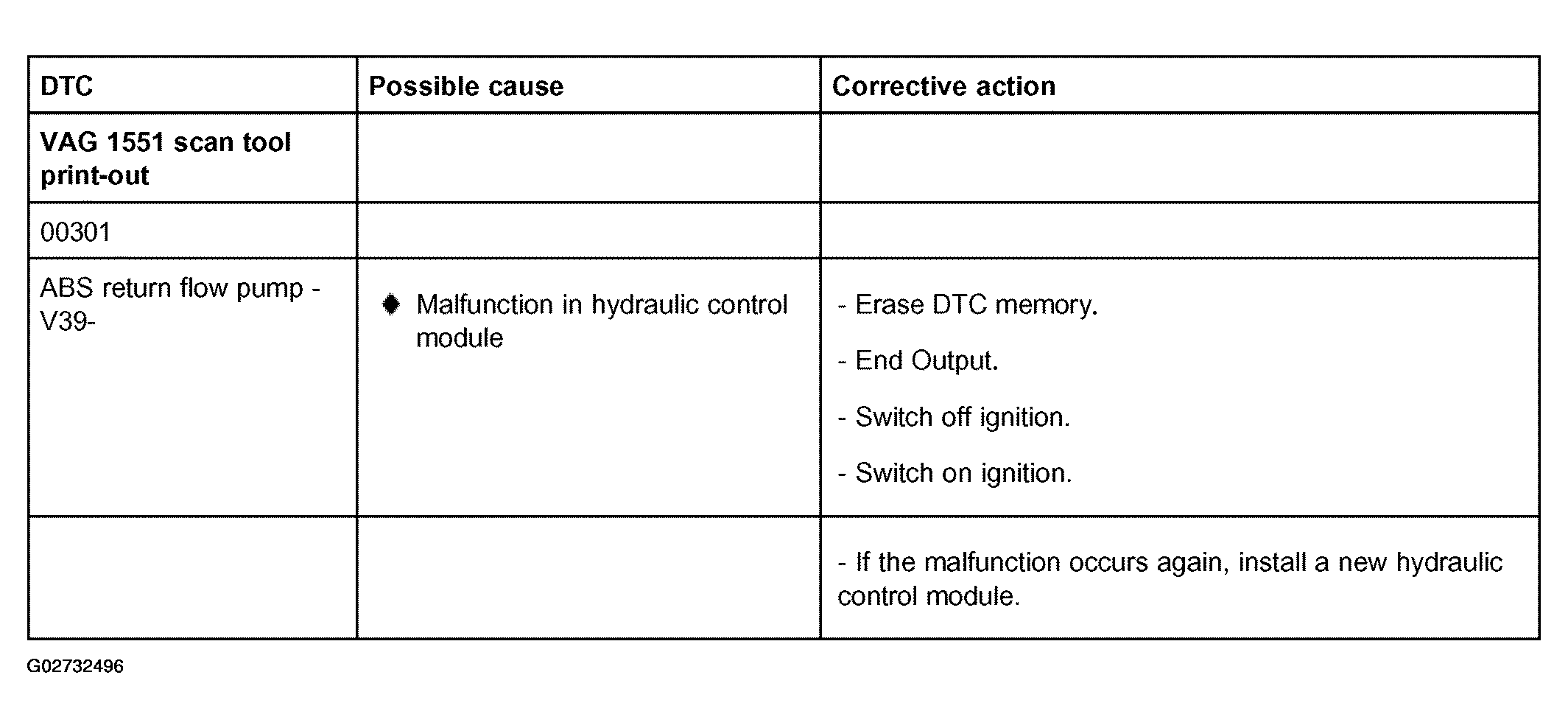

Fig 6: ABS, EDL And ASR - DTC 00301 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .

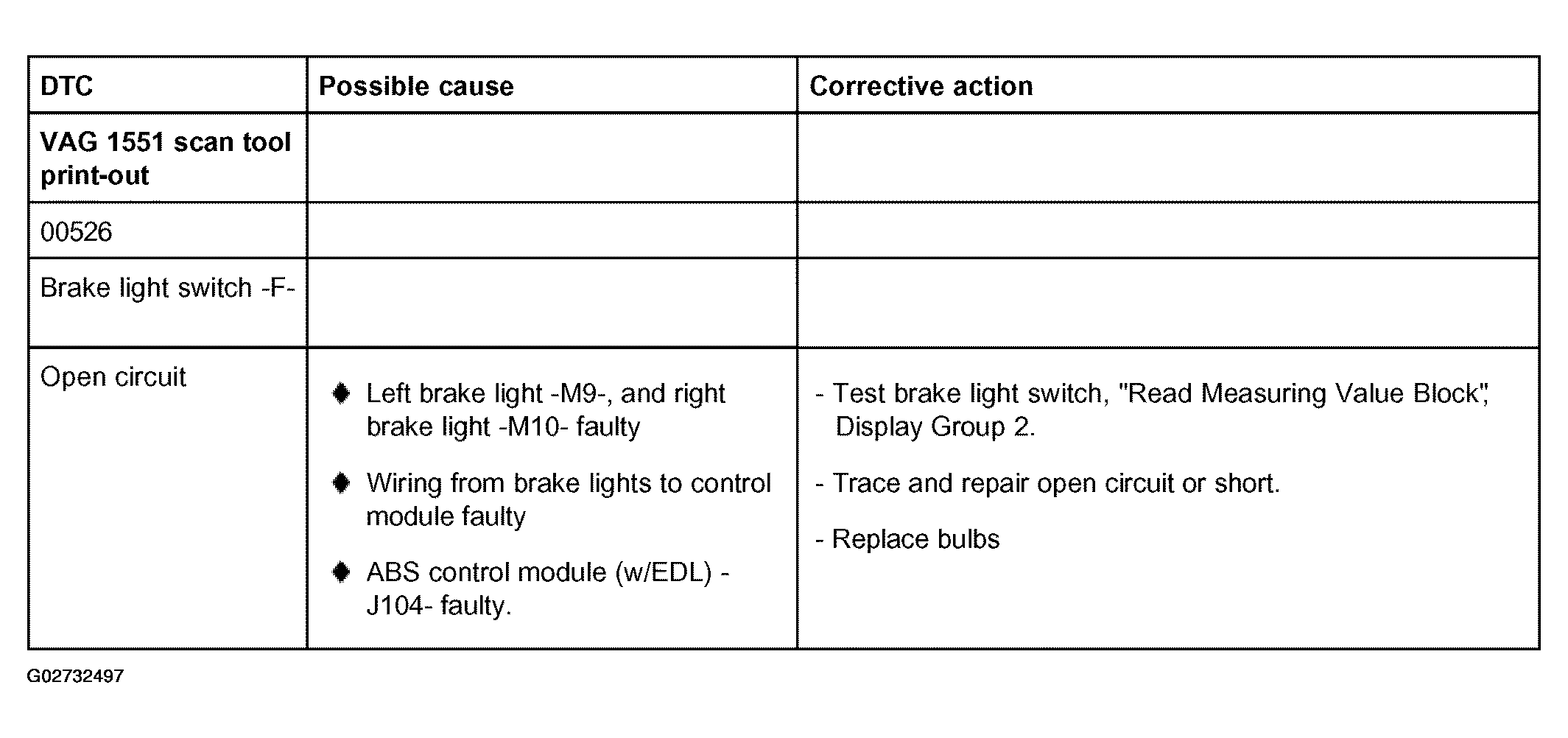

Fig 7: ABS, EDL And ASR - DTC 00526 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .

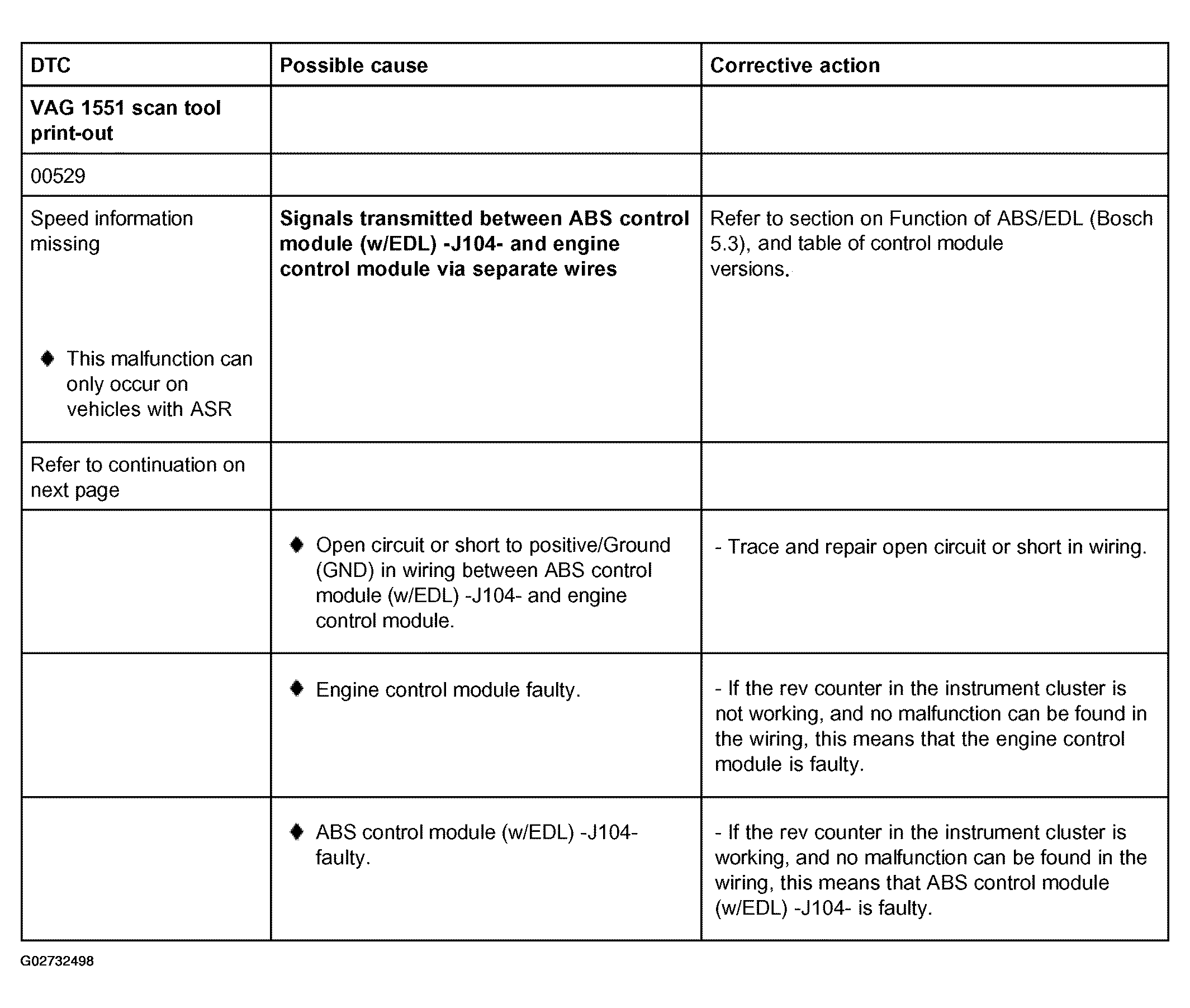

Fig 8: ABS, EDL And ASR - DTC 00529 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

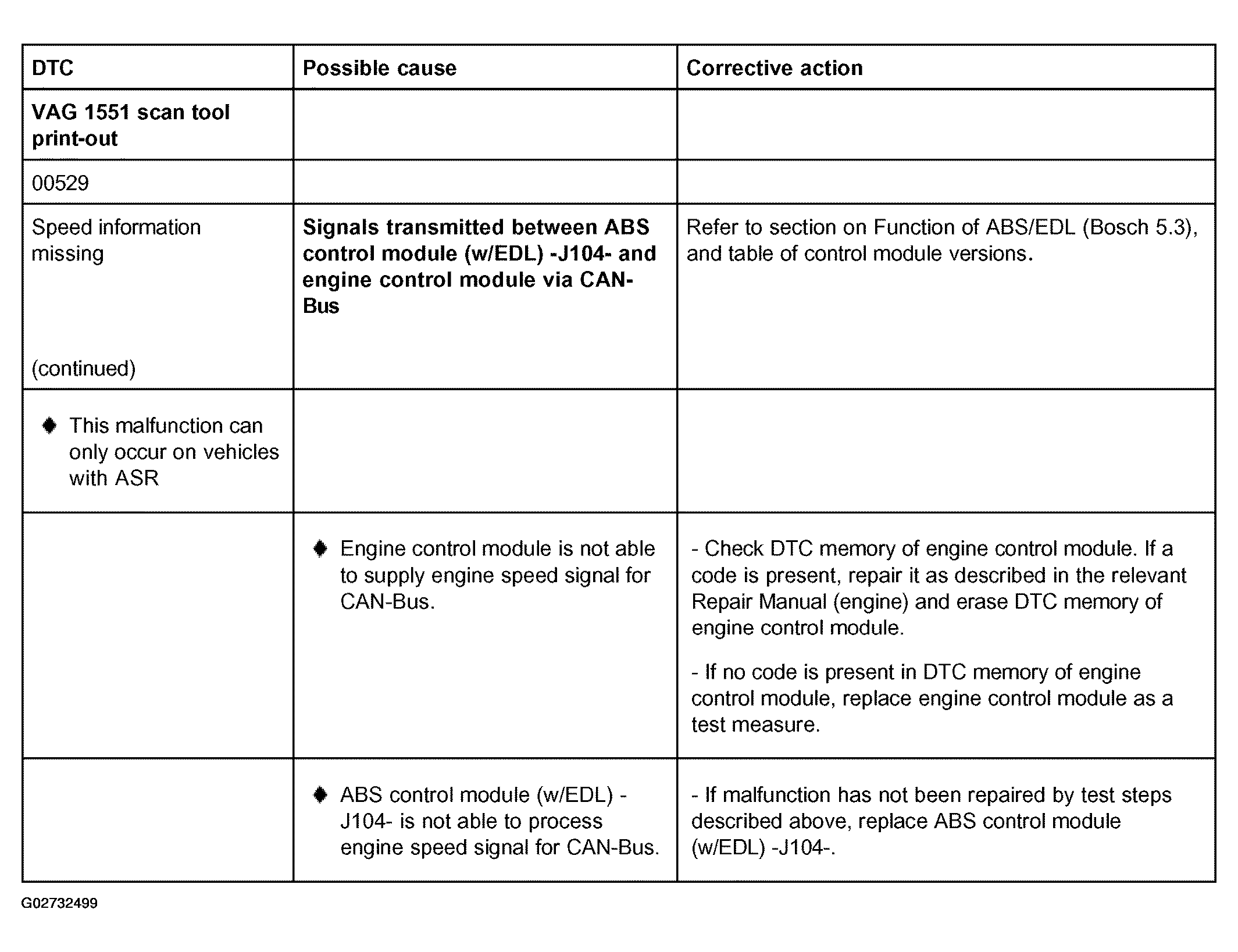

Fig 9: ABS, EDL And ASR - DTC 00529 Diagnostic Chart, Cont.

Courtesy of AUDI OF AMERICA, INC.

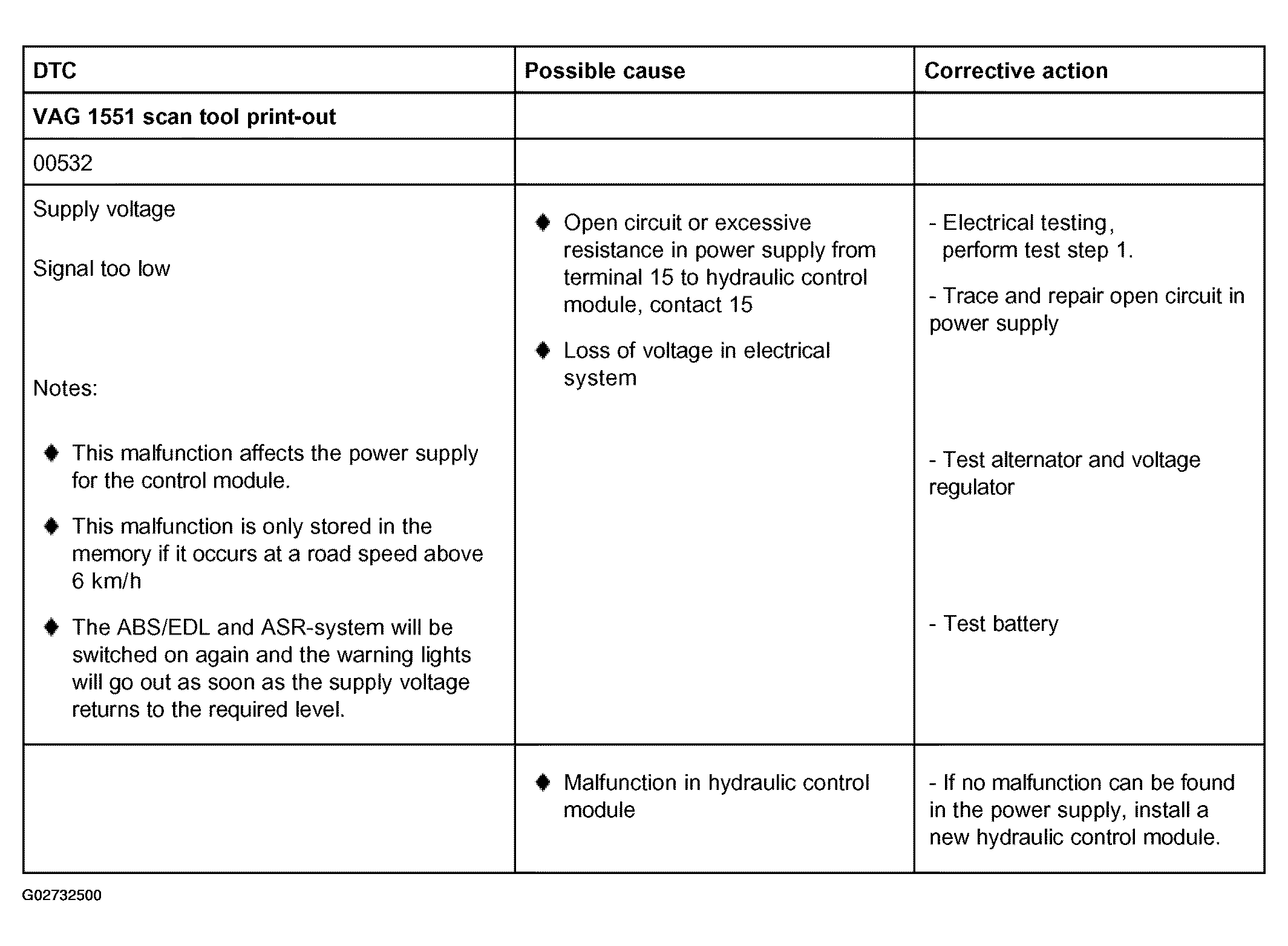

Fig 10: ABS, EDL And ASR - DTC 00532 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

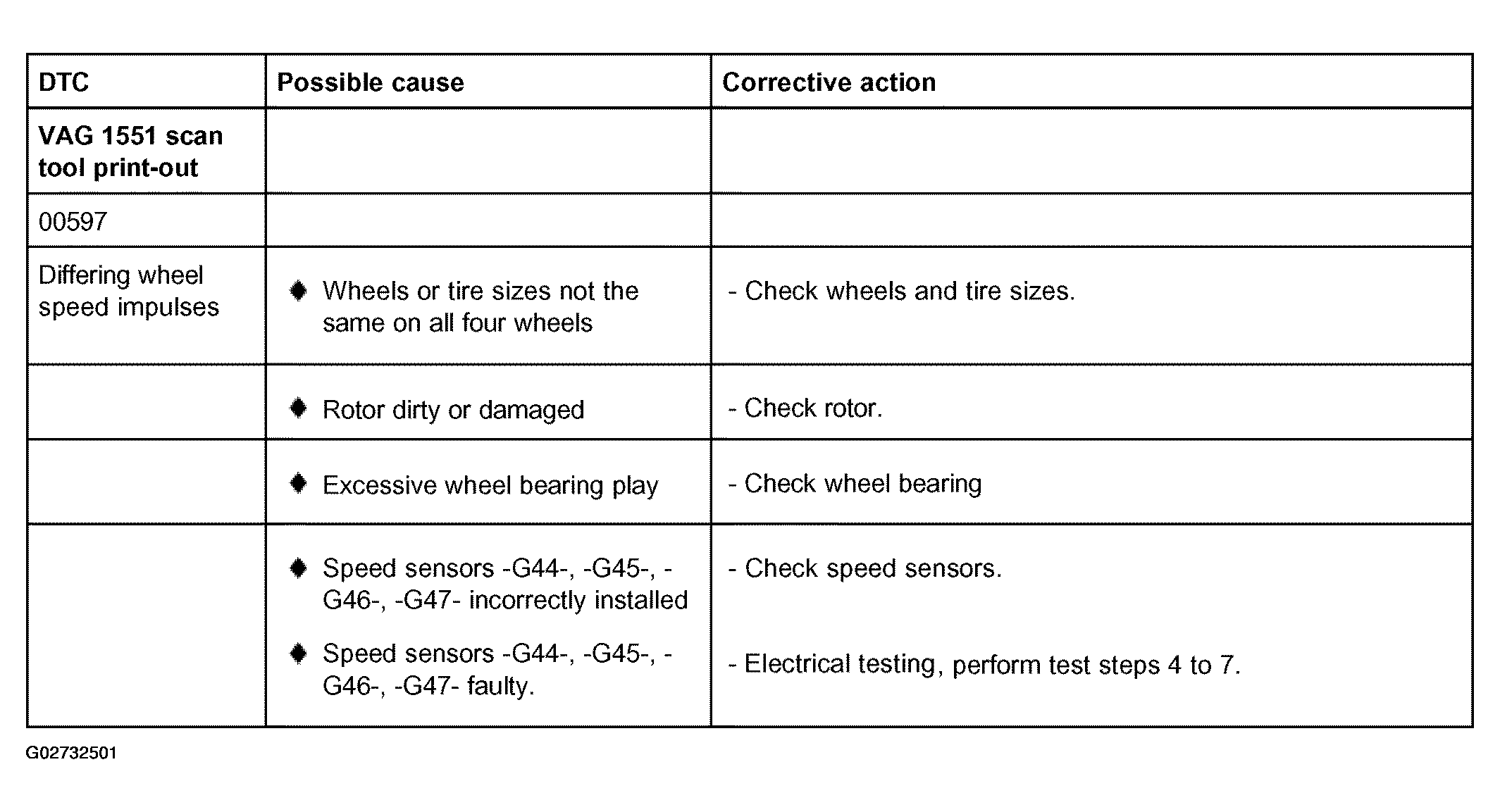

Fig 11: ABS, EDL And ASR - DTC 00597 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

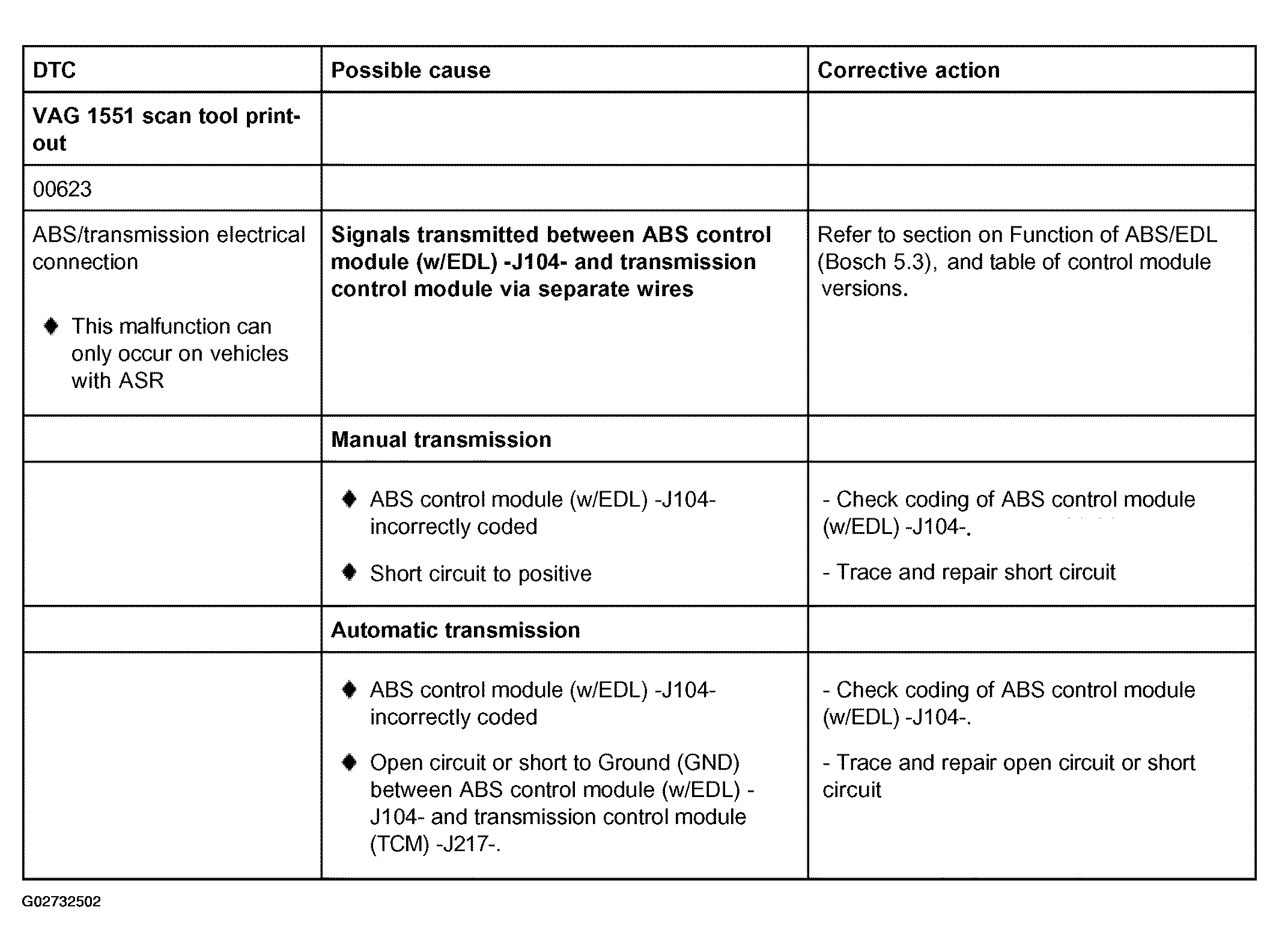

Fig 12: ABS, EDL And ASR - DTC 00623 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To check coding of control module, see CODE CONTROL MODULE (FUNCTION 07) .

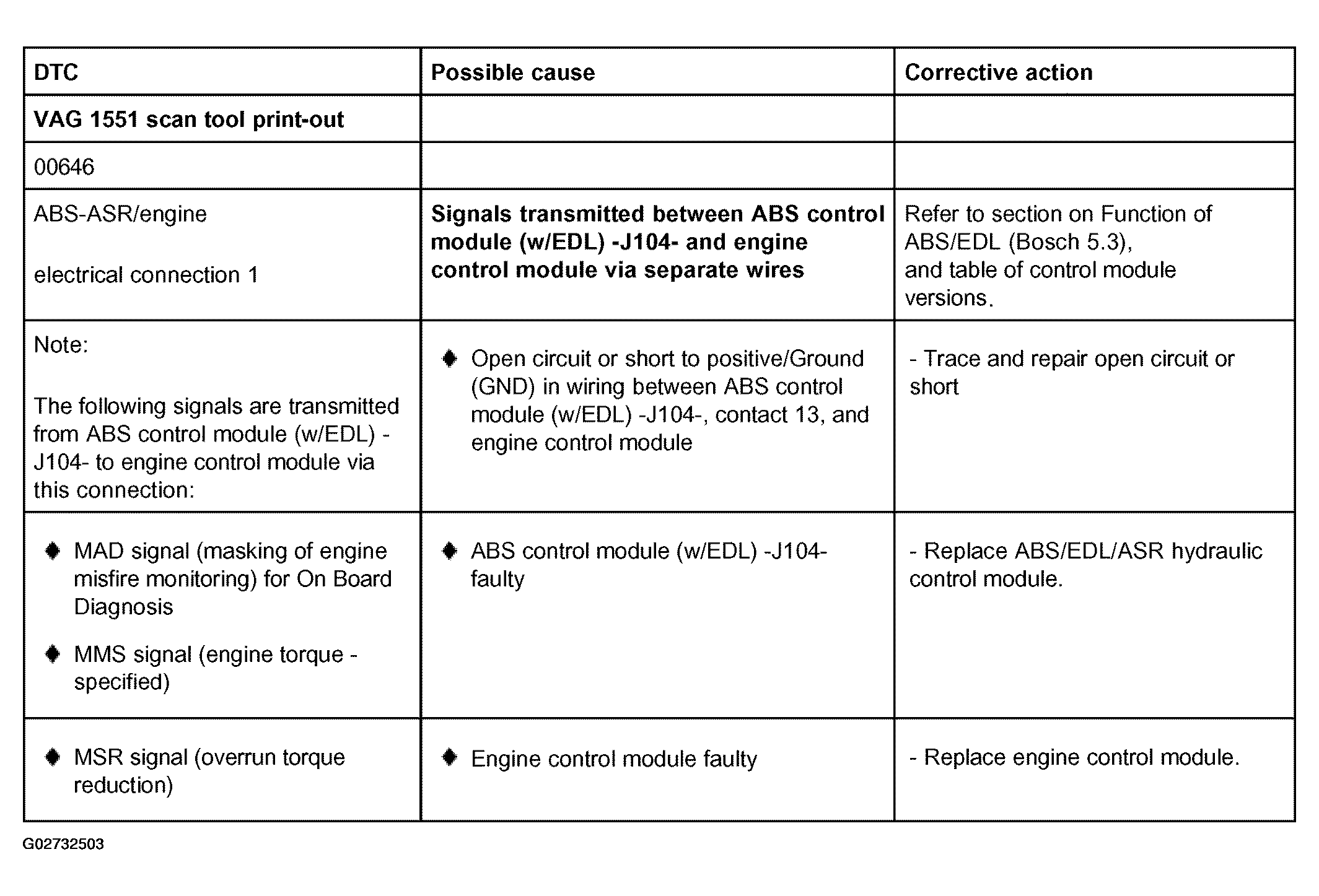

Fig 13: ABS, EDL And ASR - DTC 00646 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

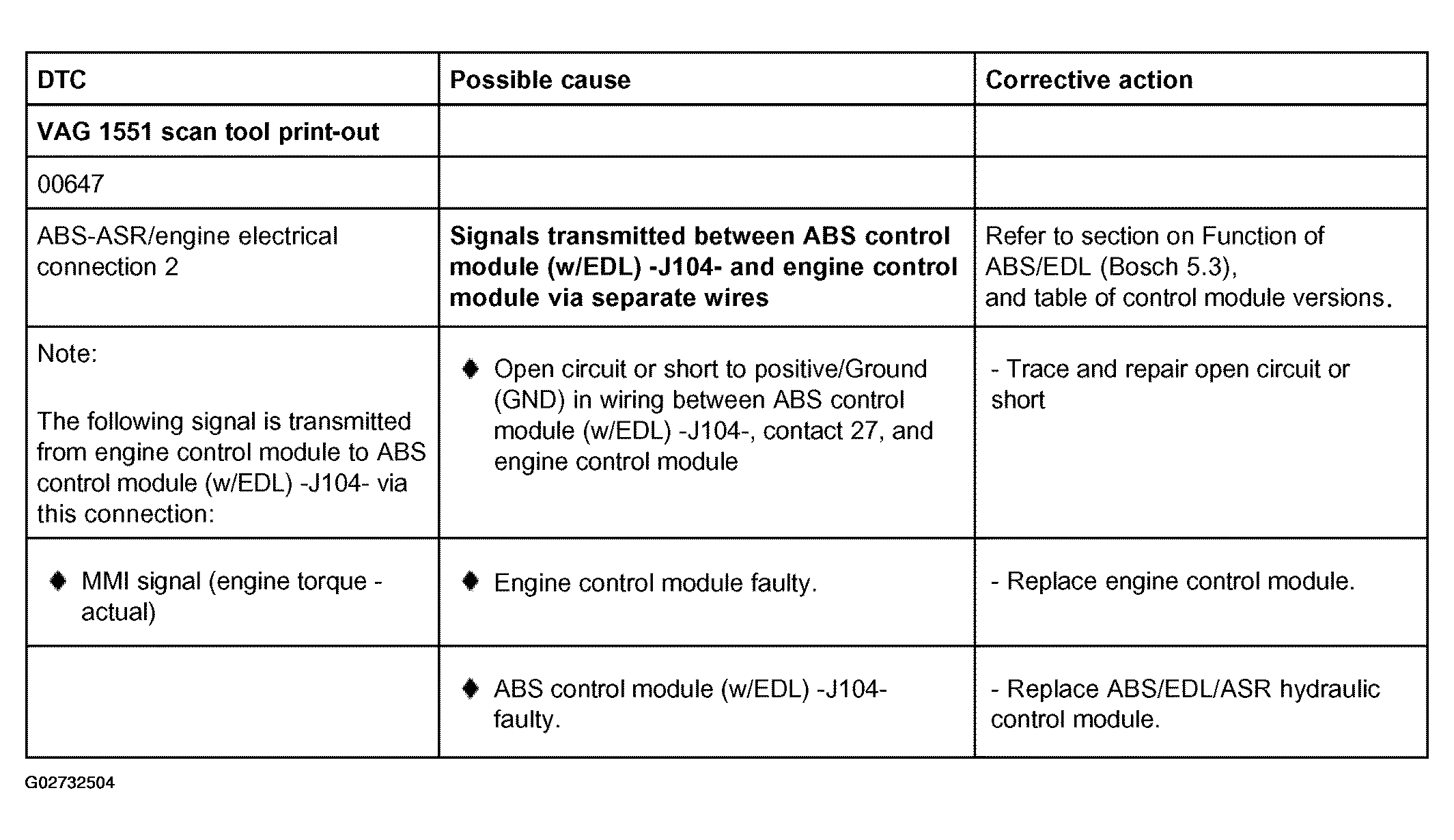

Fig 14: ABS, EDL And ASR - DTC 00647 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

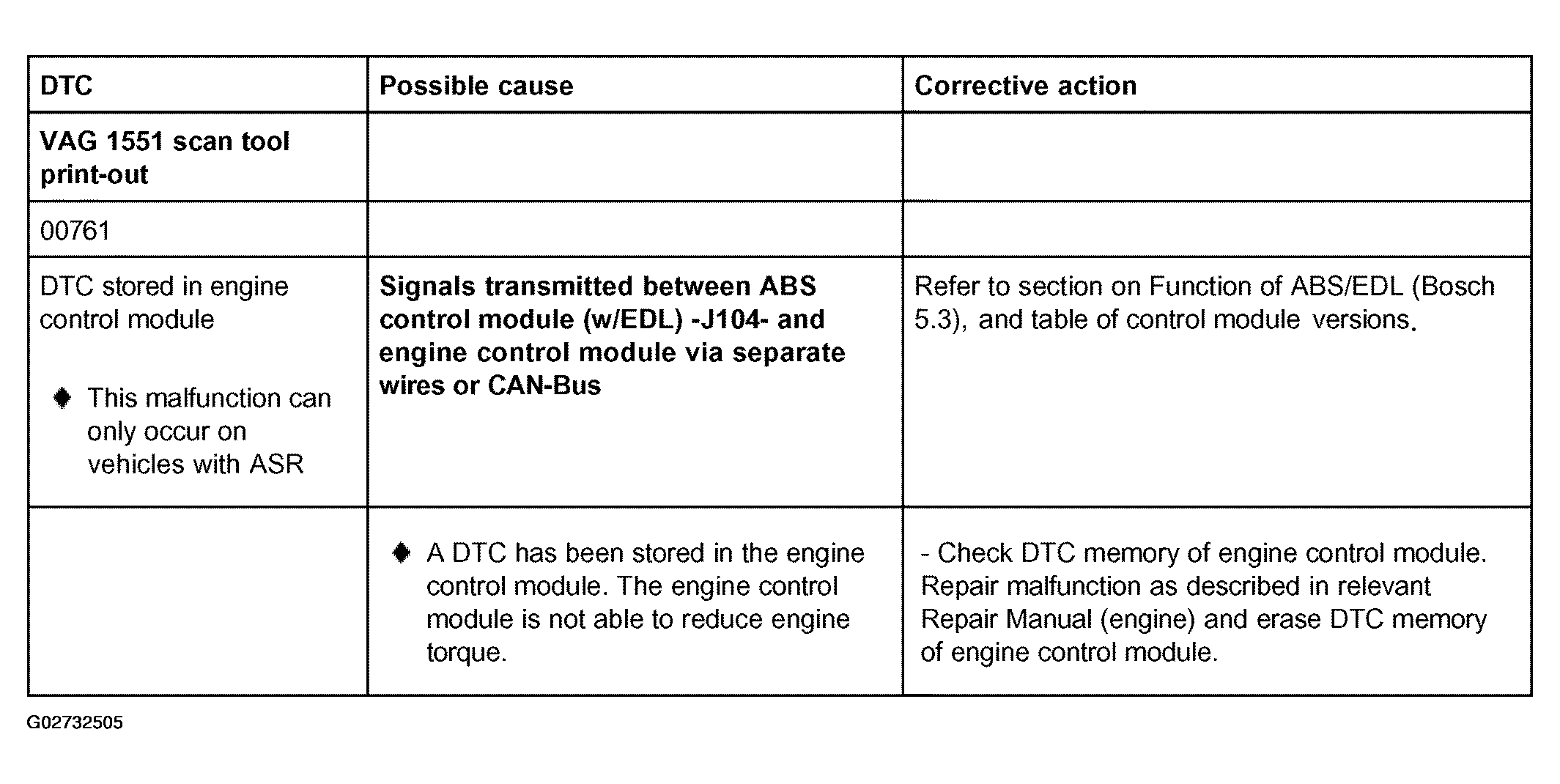

Fig 15: ABS, EDL And ASR - DTC 00761 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

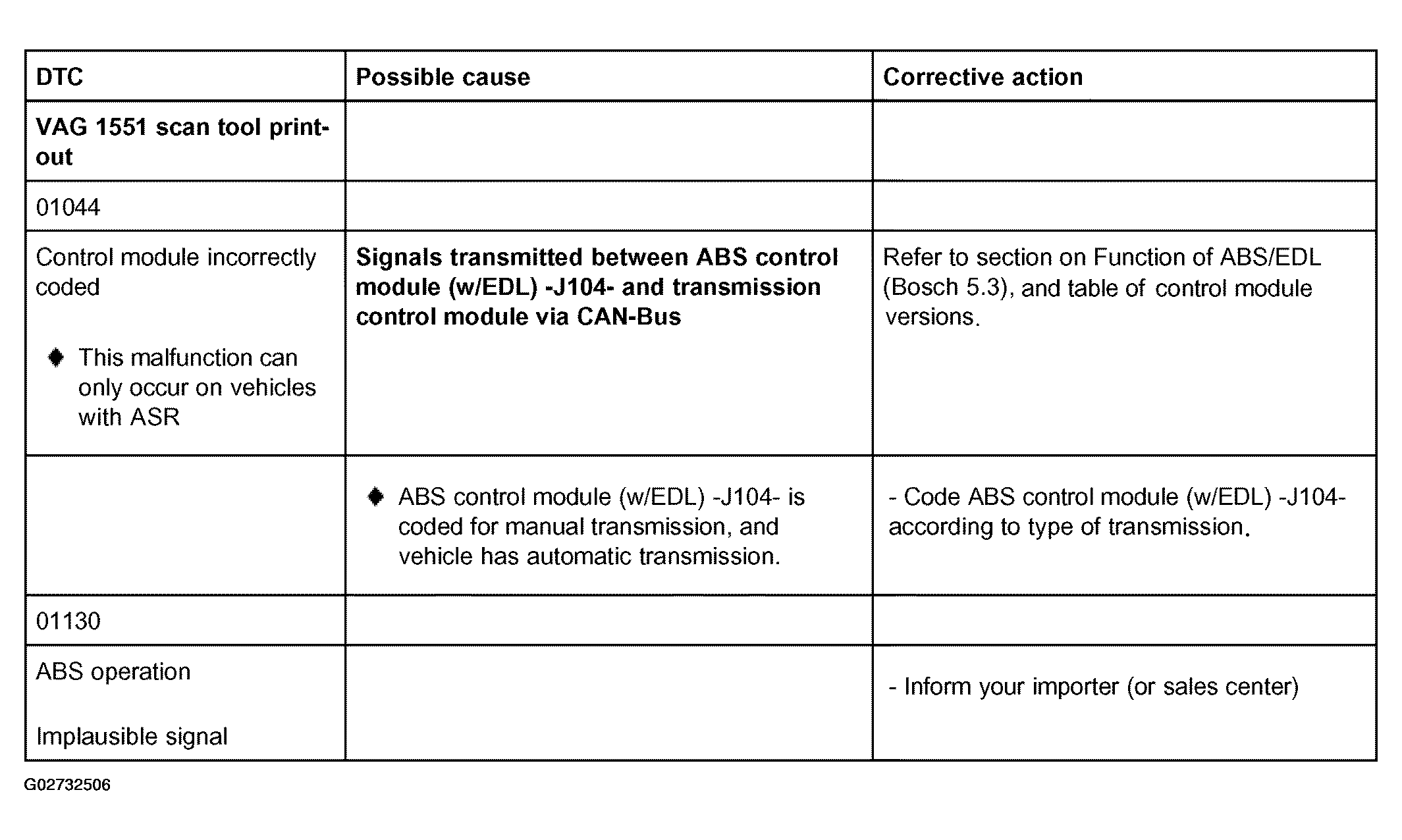

Fig 16: ABS, EDL And ASR - DTC 01044 And 01130 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
For control module coding, see CODE CONTROL MODULE (FUNCTION 07) .

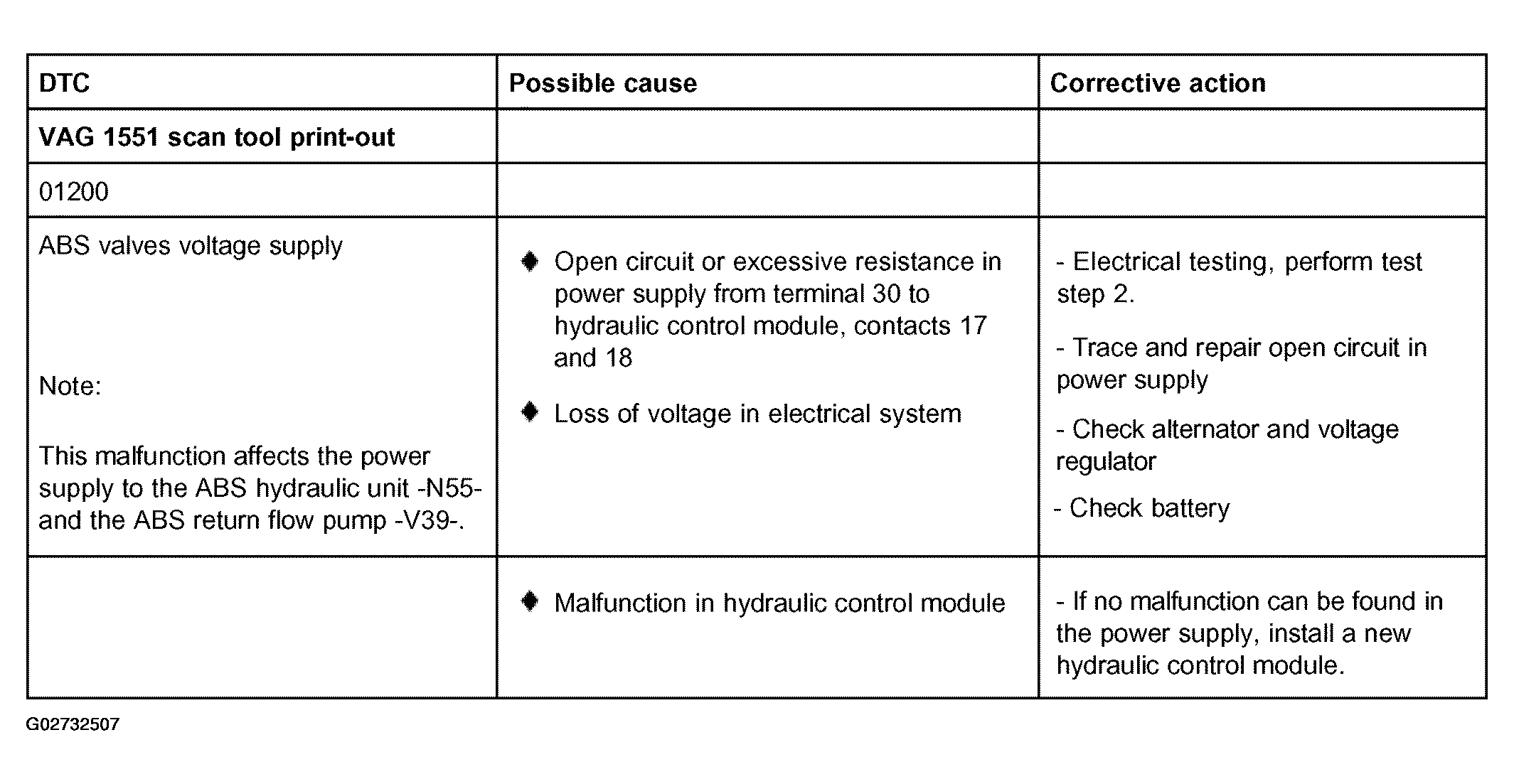

Fig 17: ABS, EDL And ASR - DTC 01200 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

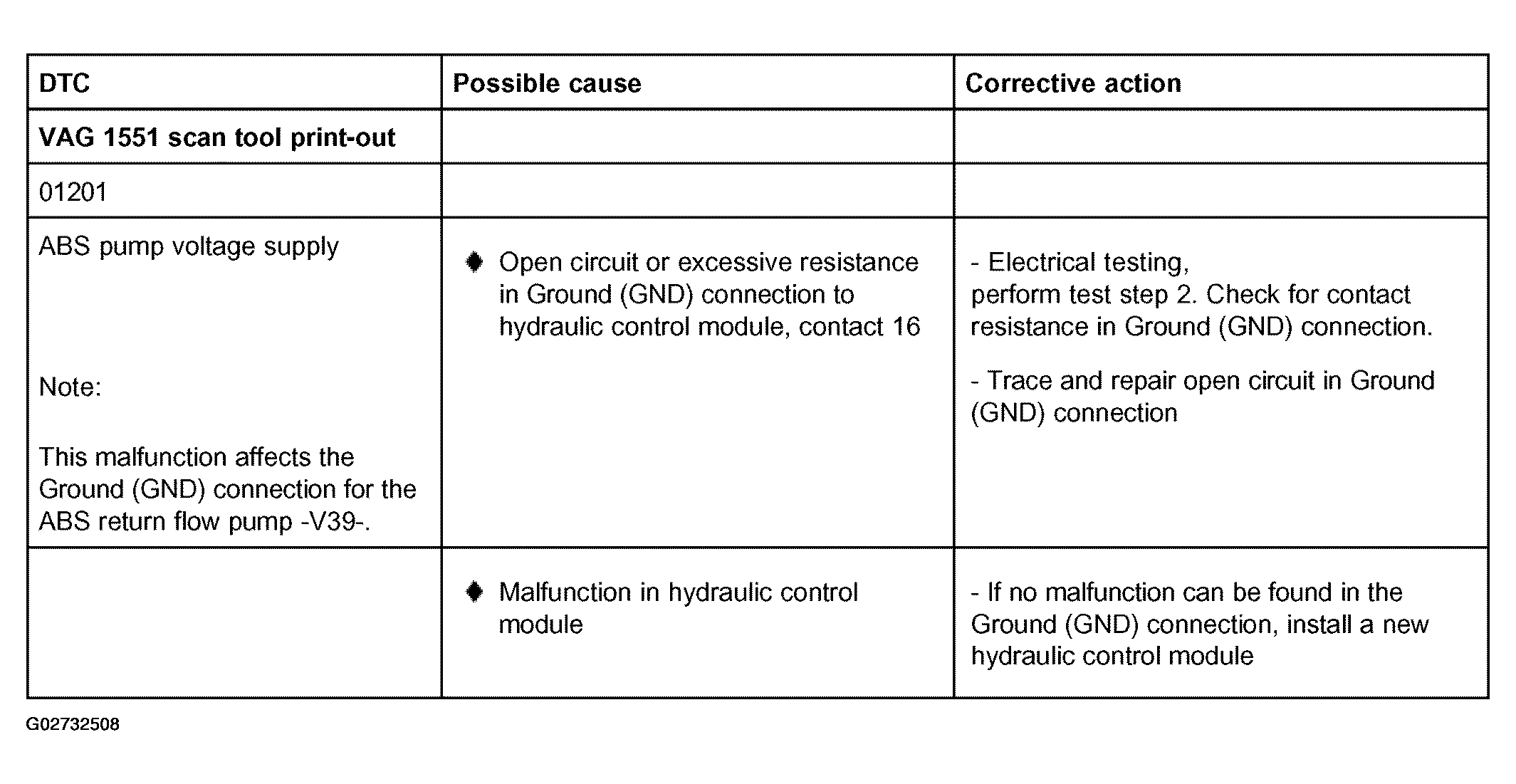

Fig 18: ABS, EDL And ASR - DTC 01201 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

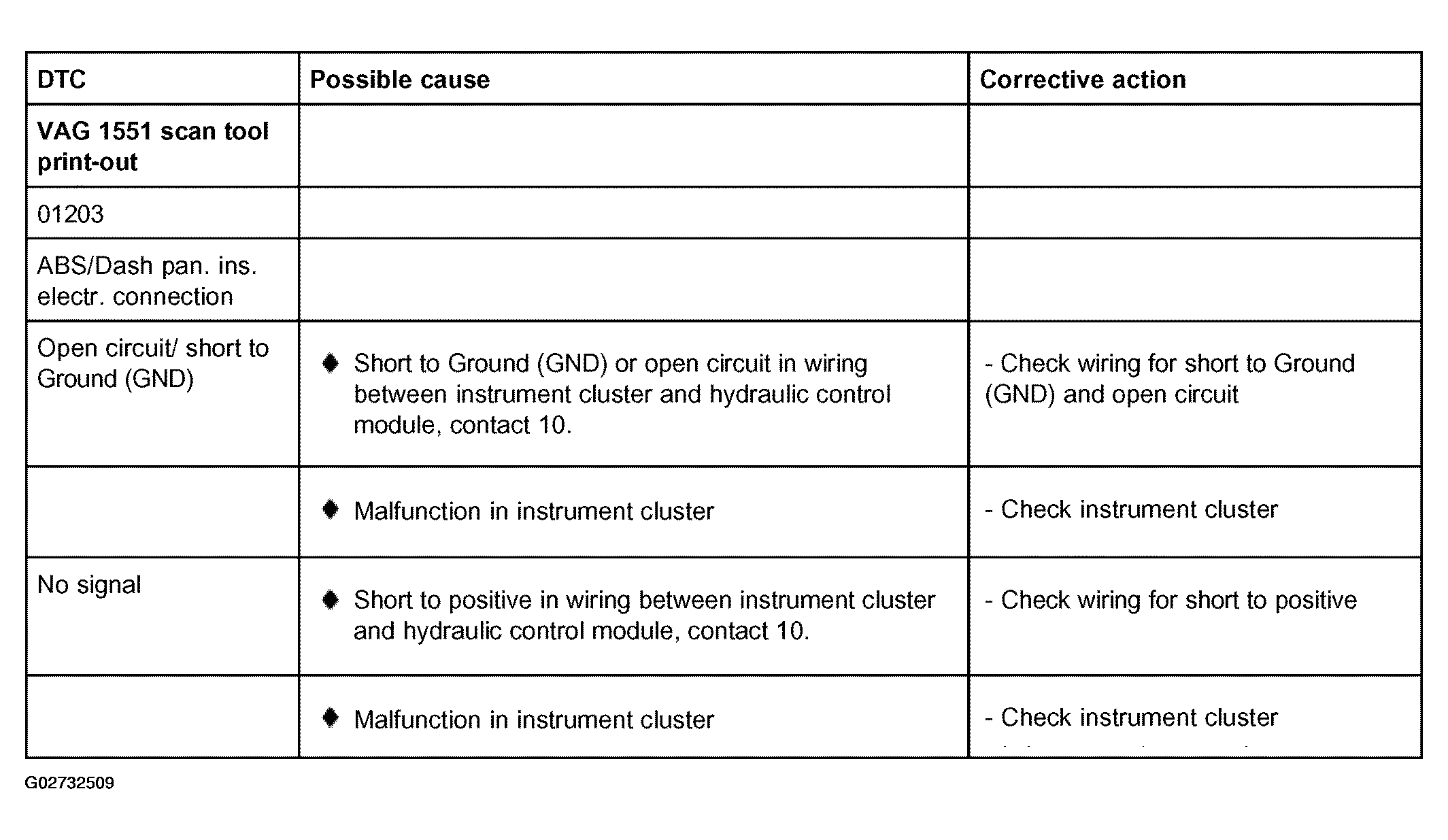

Fig 19: ABS, EDL And ASR - DTC 01203 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

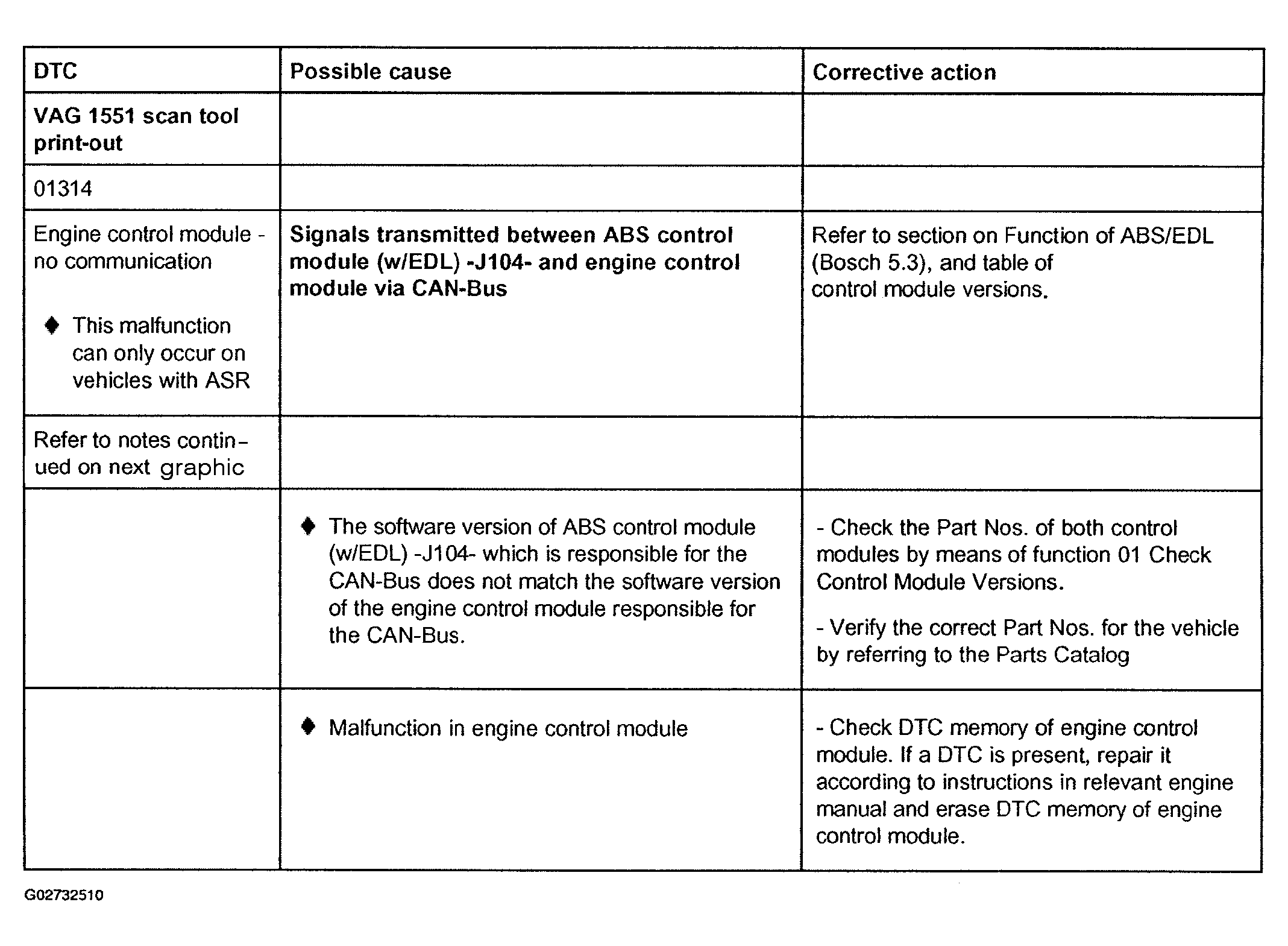

Fig 20: ABS, EDL And ASR - DTC 01314 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To check control module versions, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
To check bus wires, see TWO CONTROL MODULES COMMUNICATING VIA A CAN-BUS .

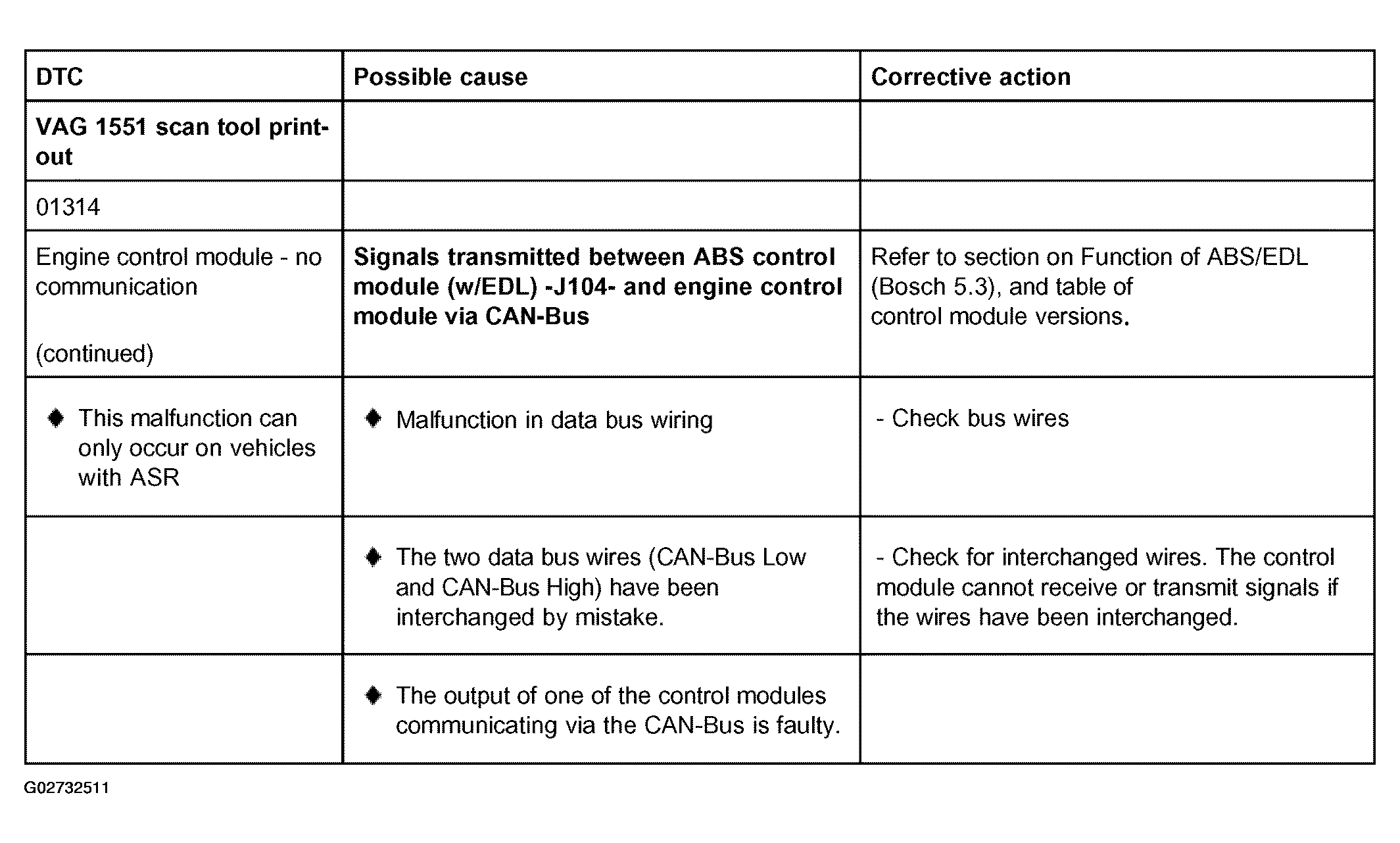

Fig 21: ABS, EDL And ASR - DTC 01314 Diagnostic Chart (Cont.)

Courtesy of AUDI OF AMERICA, INC.

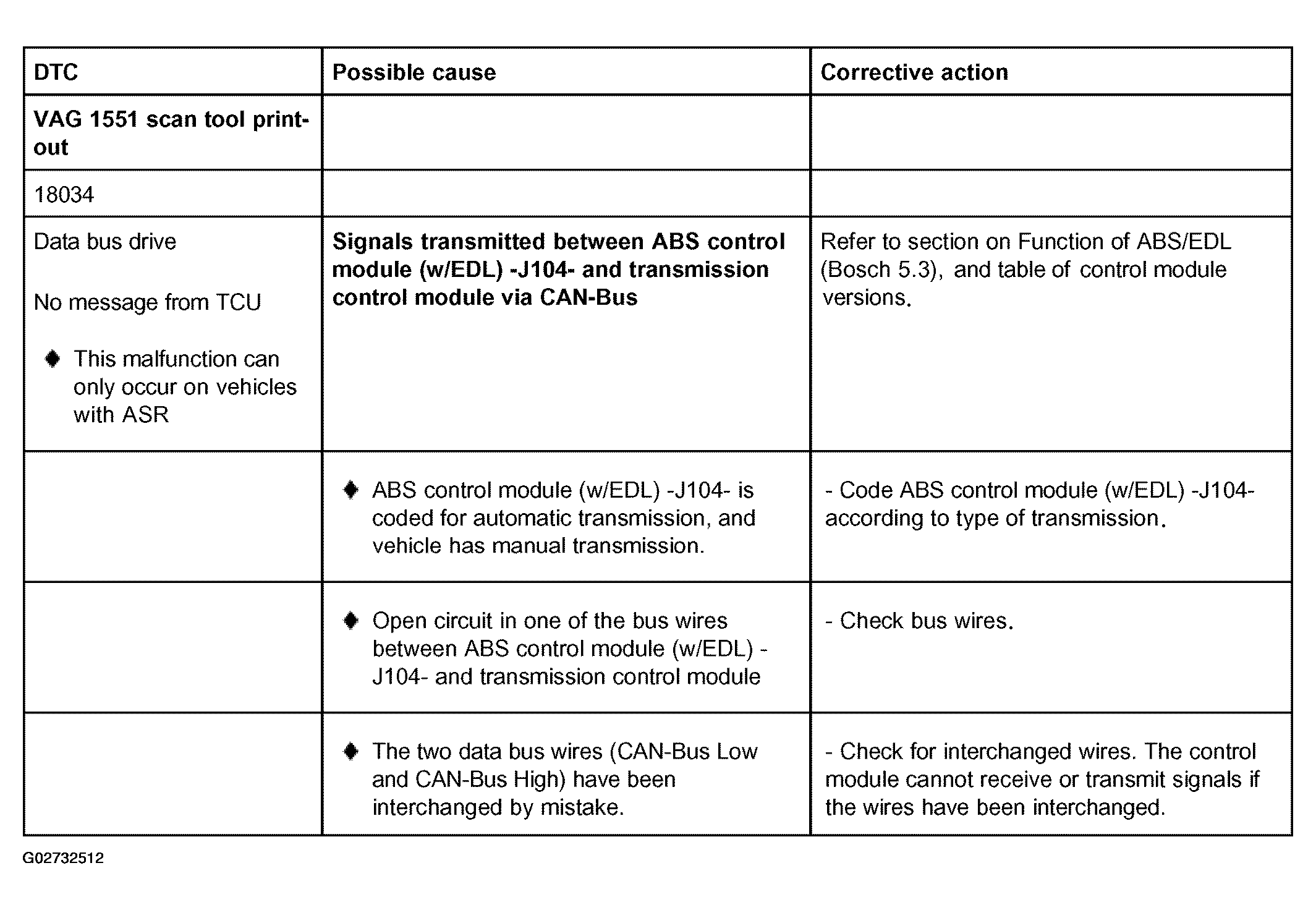

Fig 22: ABS, EDL And ASR - DTC 18034 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To code ABS control module, see CODE CONTROL MODULE (FUNCTION 07) .
To check bus wires, see TWO CONTROL MODULES COMMUNICATING VIA A CAN-BUS .

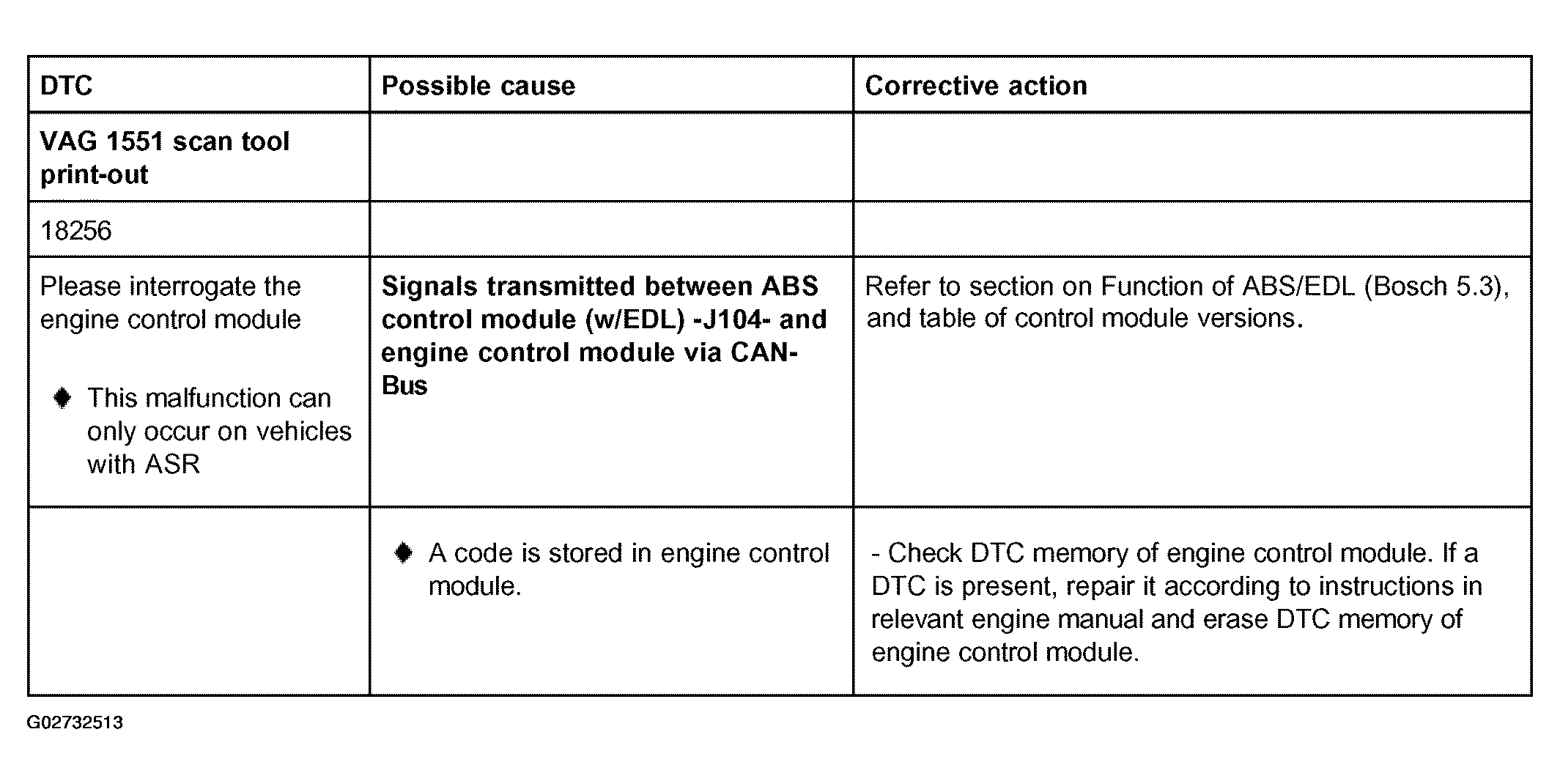

Fig 23: ABS, EDL And ASR - DTC 18256 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

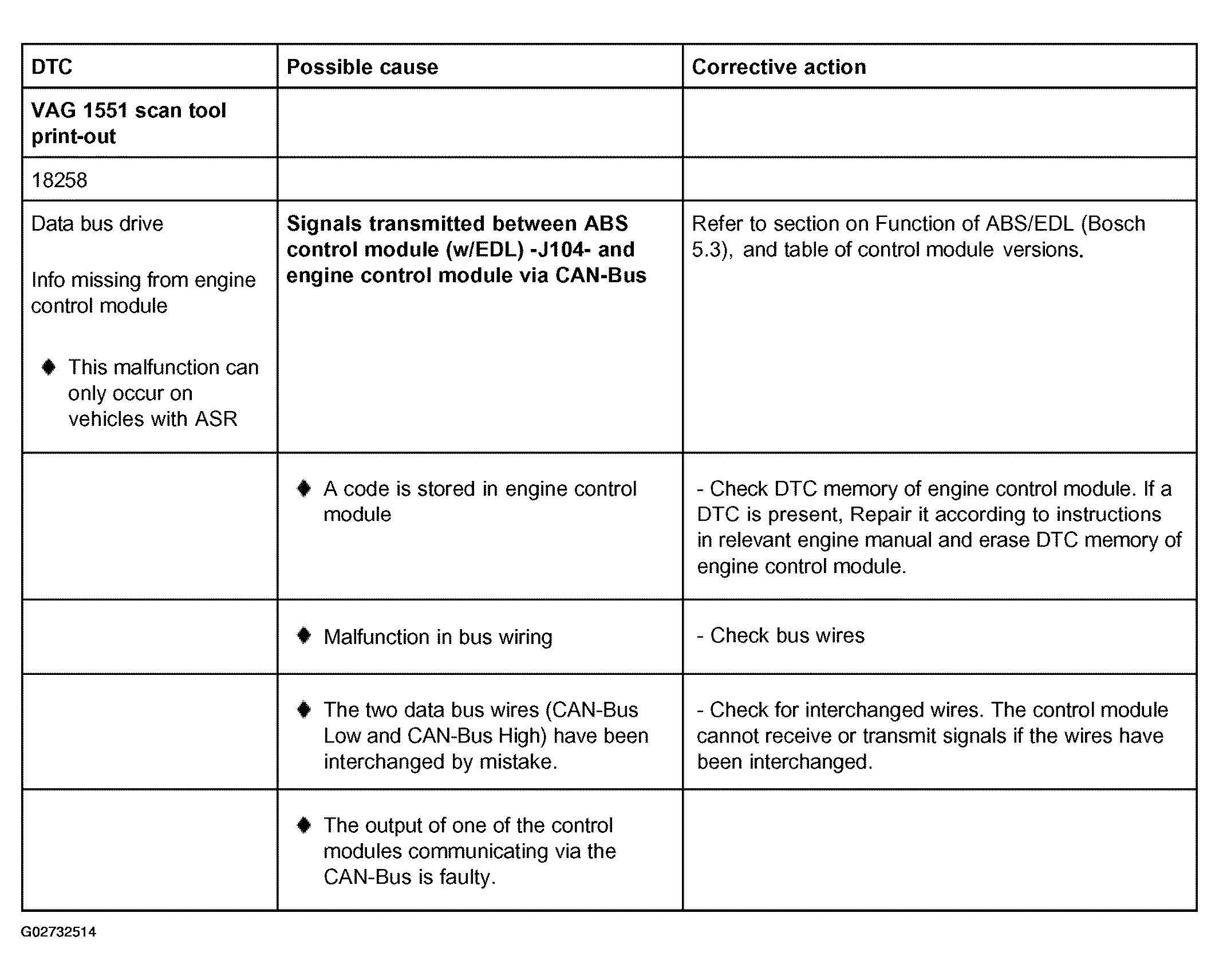

Fig 24: ABS, EDL And ASR - DTC 18258 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To check bus wires, see TWO CONTROL MODULES COMMUNICATING VIA A CAN-BUS .

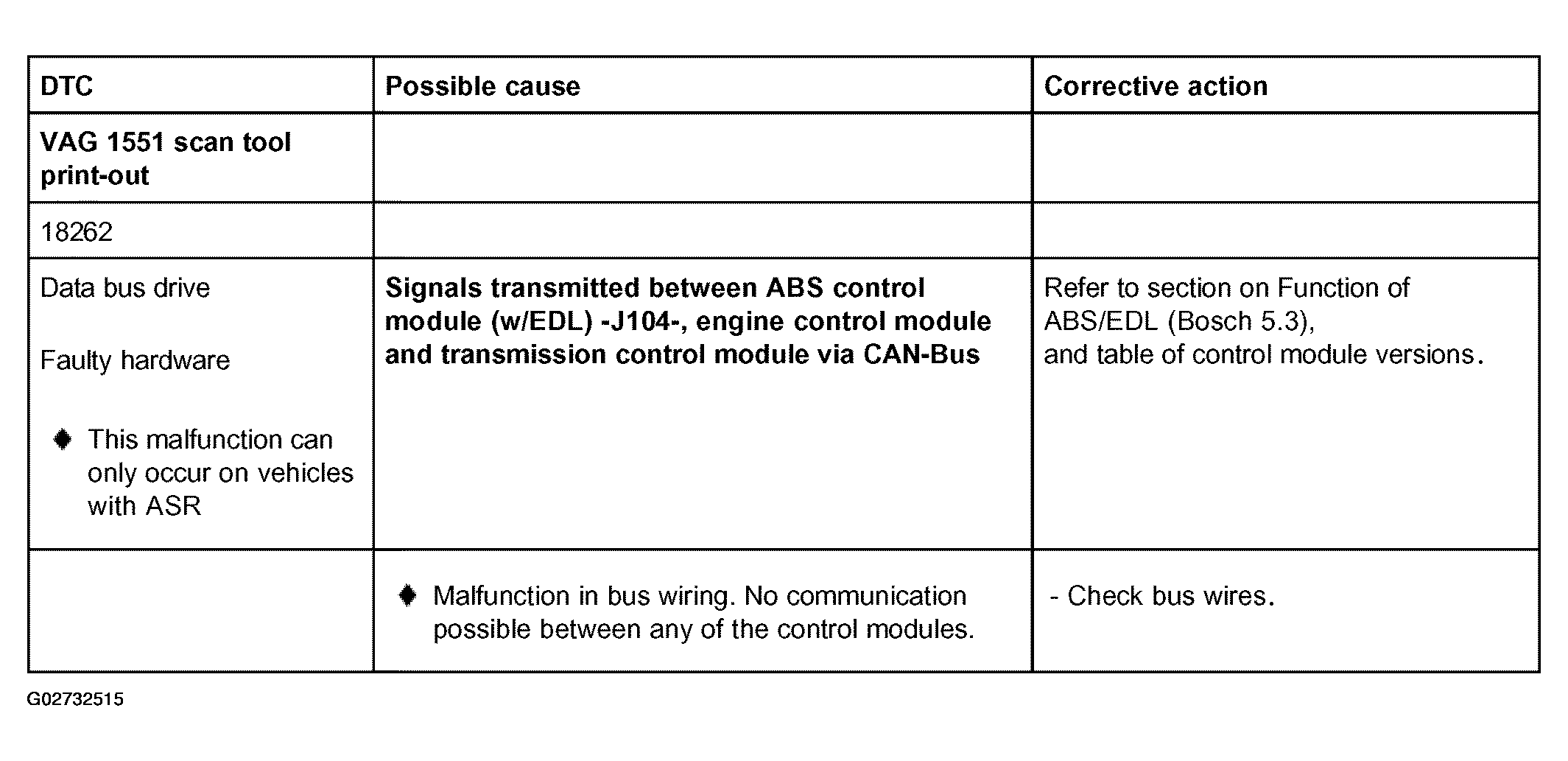

Fig 25: ABS, EDL And ASR - DTC 18262 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To check bus wires, see TWO CONTROL MODULES COMMUNICATING VIA A CAN-BUS .

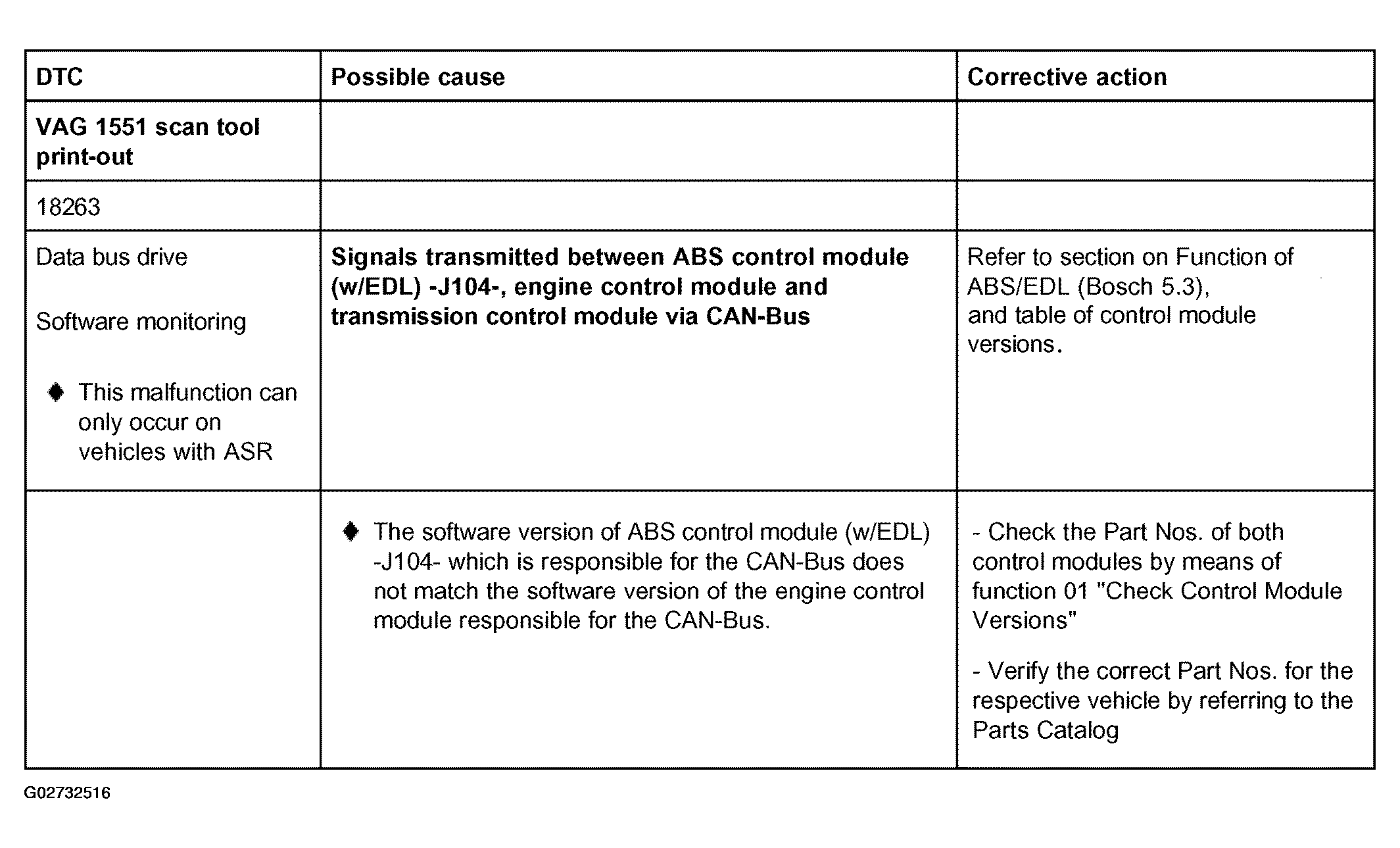

Fig 26: ABS, EDL And ASR - DTC 18263 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .
To check control module versions, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .

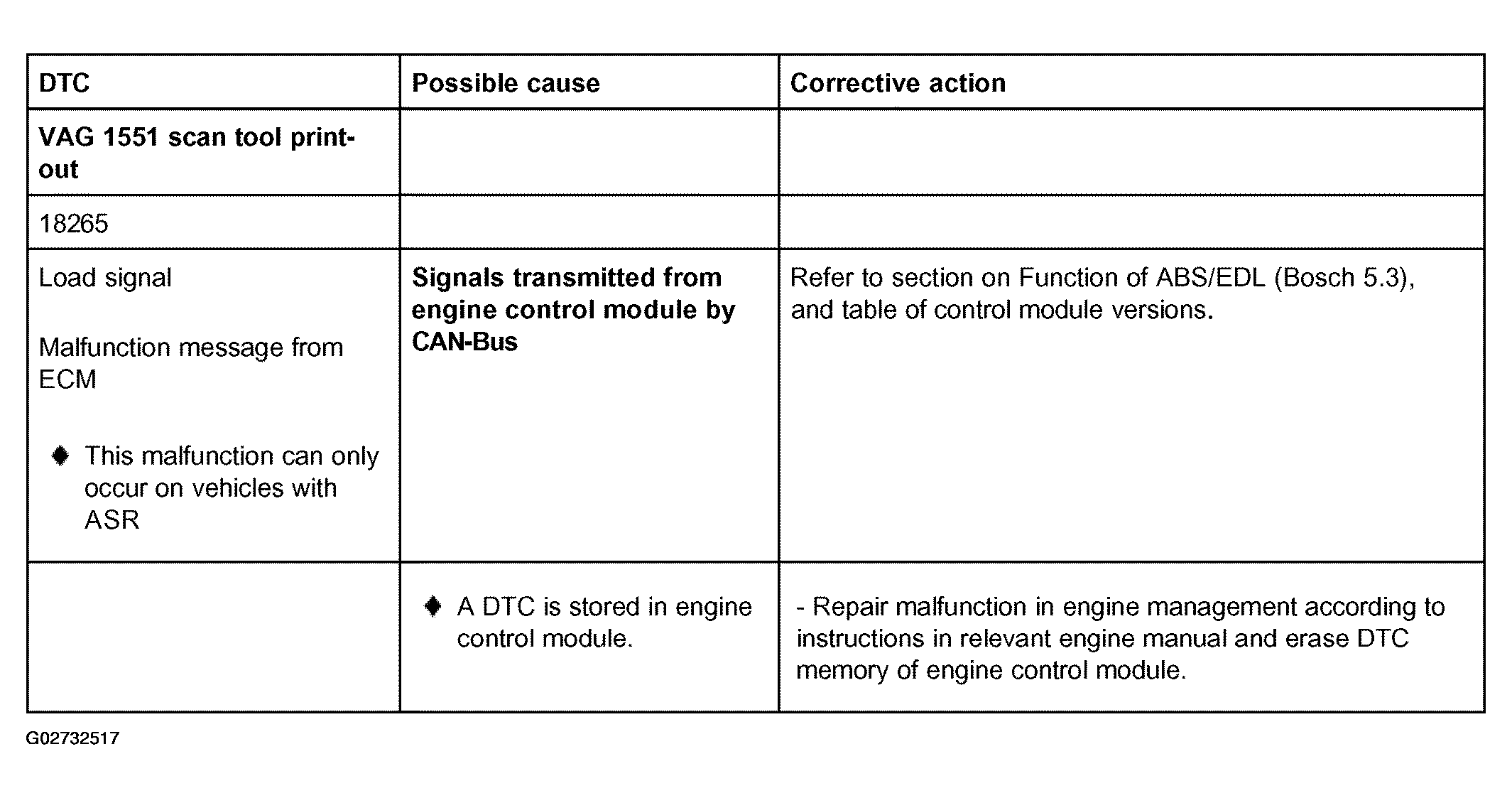

Fig 27: ABS, EDL And ASR - DTC 18265 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

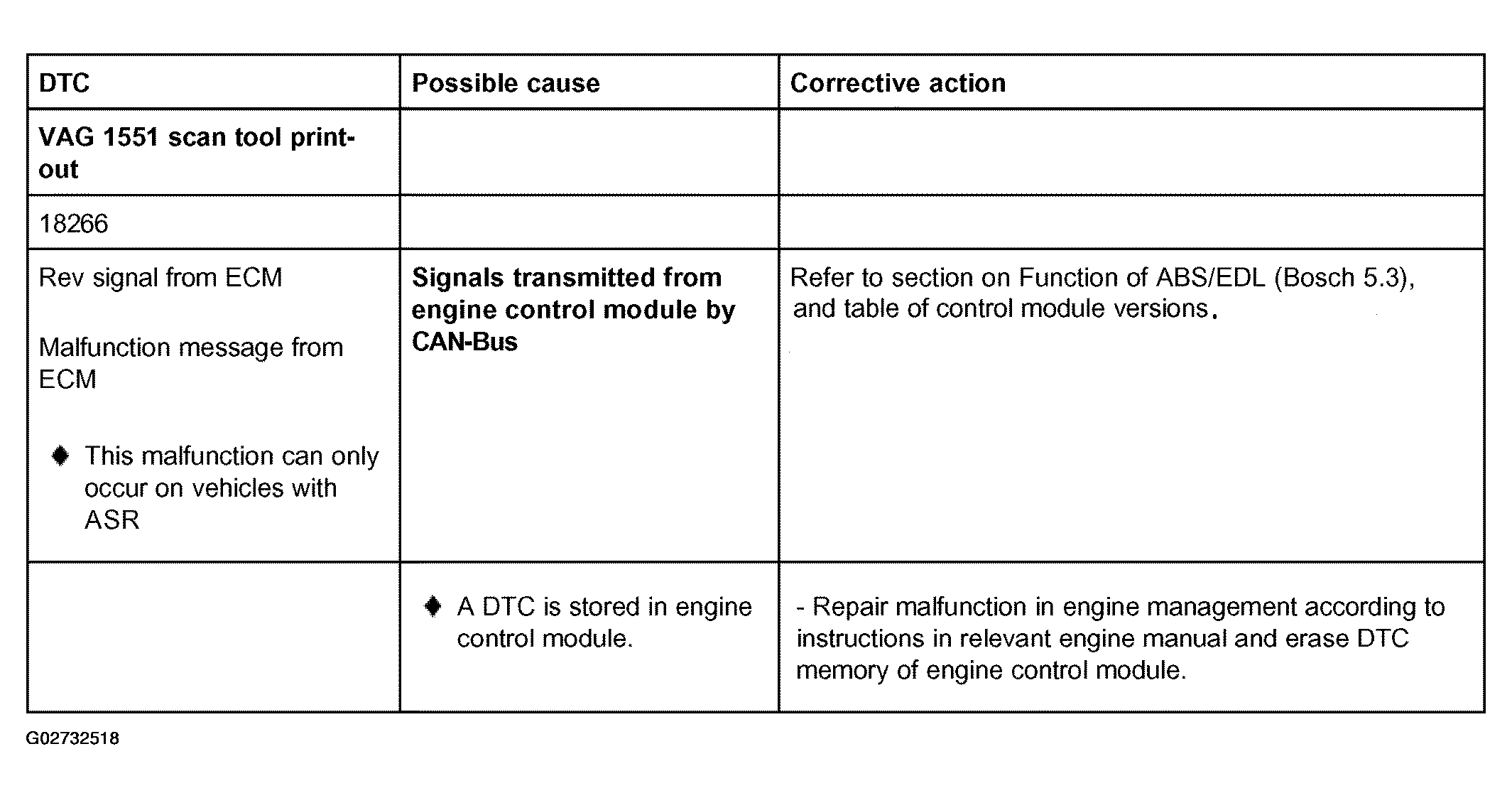

Fig 28: ABS, EDL And ASR - DTC 18266 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.

For Bosch 5.3 function, see BOSCH 5.3 ABS/EDL SYSTEM, FUNCTION .
For table of control module versions, see ABS, EDL, ASR CONTROL MODULE VERSIONS .

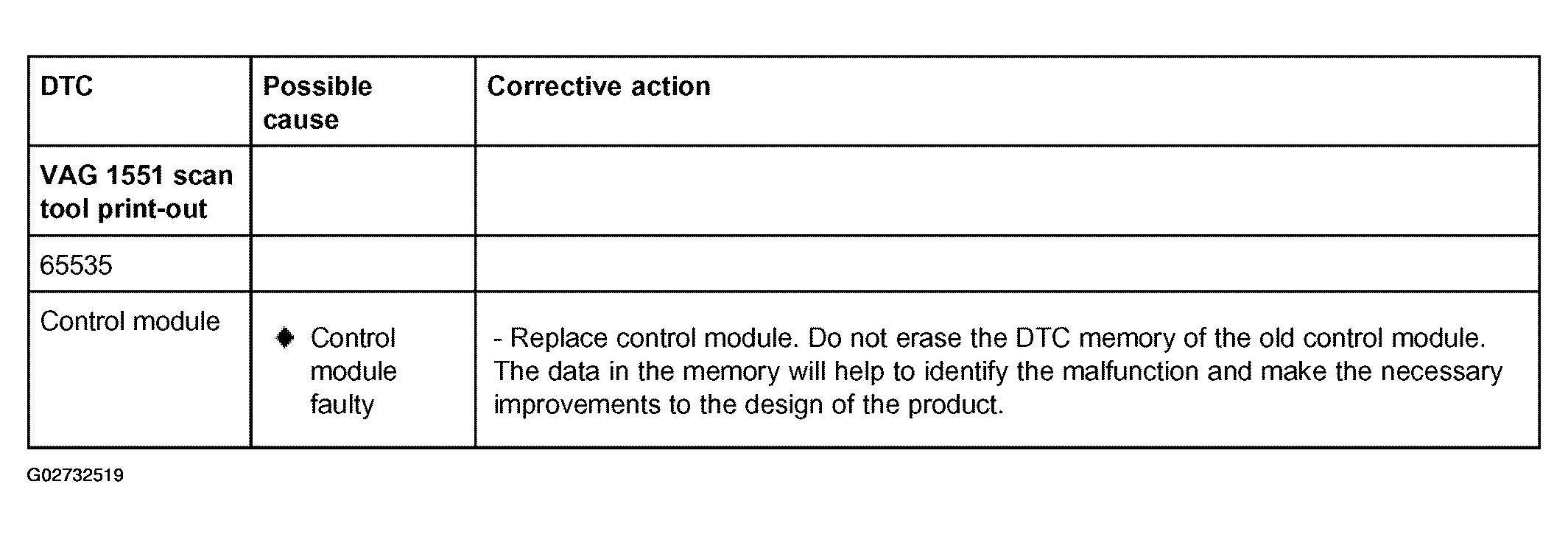

Fig 29: ABS, EDL And ASR - DTC 65535 Diagnostic Chart

Courtesy of AUDI OF AMERICA, INC.
