Warning light functions overview
- If the On Board Diagnostic (OBD) detects a malfunction in the system, it will be displayed by the warning lights when the ignition is switched on. Warning lights are located in the instrument cluster.
Instrument cluster without driver information display

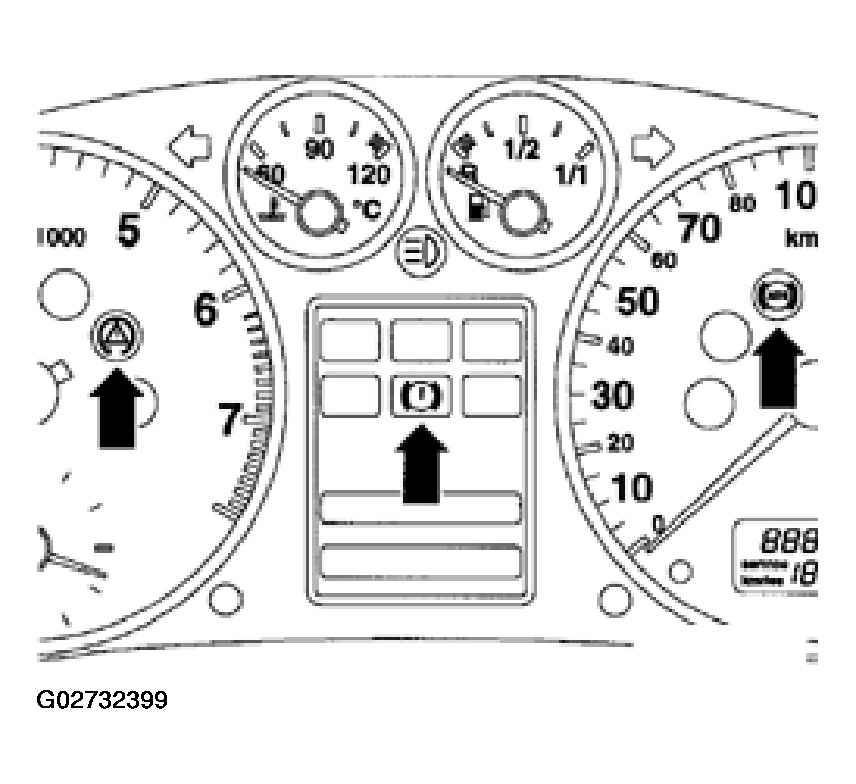

- The illustration shows ABS warning light -K47- (right -arrow-), warning light for brake system -K118- (center -arrow-, red symbol "brake system malfunction(" and the traction control indicator light -K86- (left -arrow-).
Fig 1: Identifying Brake System Malfunction Indicators (Instrument Cluster Without Driver Information Display)

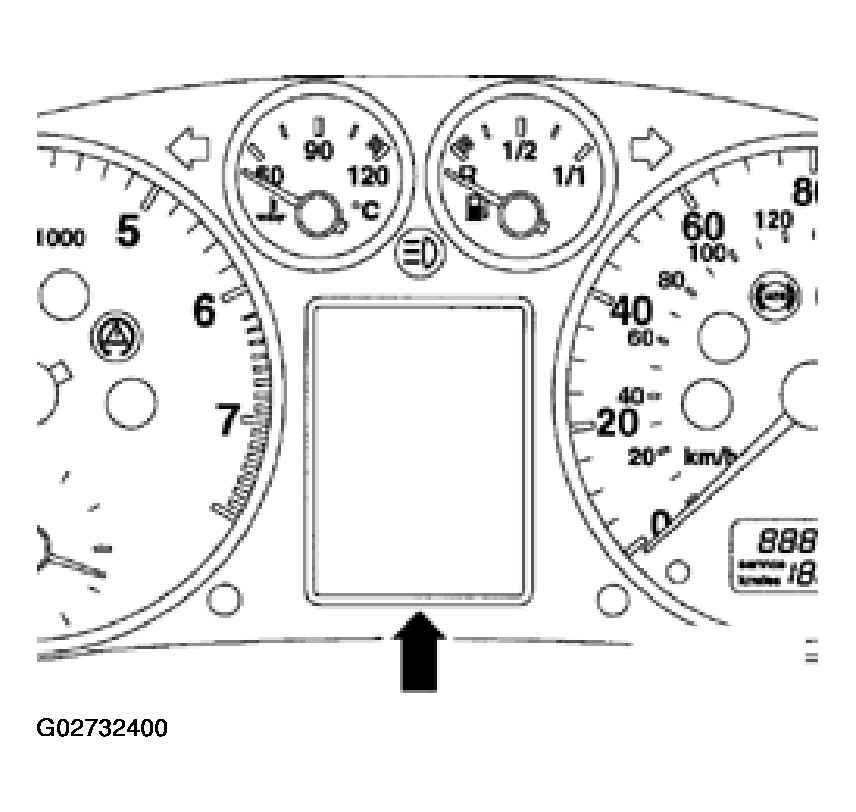

Instrument cluster with driver information display
- Warning light for brake system -K118- is not installed on instrument clusters with driver information display. The red symbol "brake system malfunction" appears on the display.
- If the brake system is not fully functional, but the ABS warning light -K47- and the brake system warning symbol do not come on, this means the malfunction must be sought in the conventional braking system (mechanical/hydraulic components).
See DISC .
Fig 2: Identifying Brake System Malfunction Indicators (Instrument Cluster With Driver Information Display)

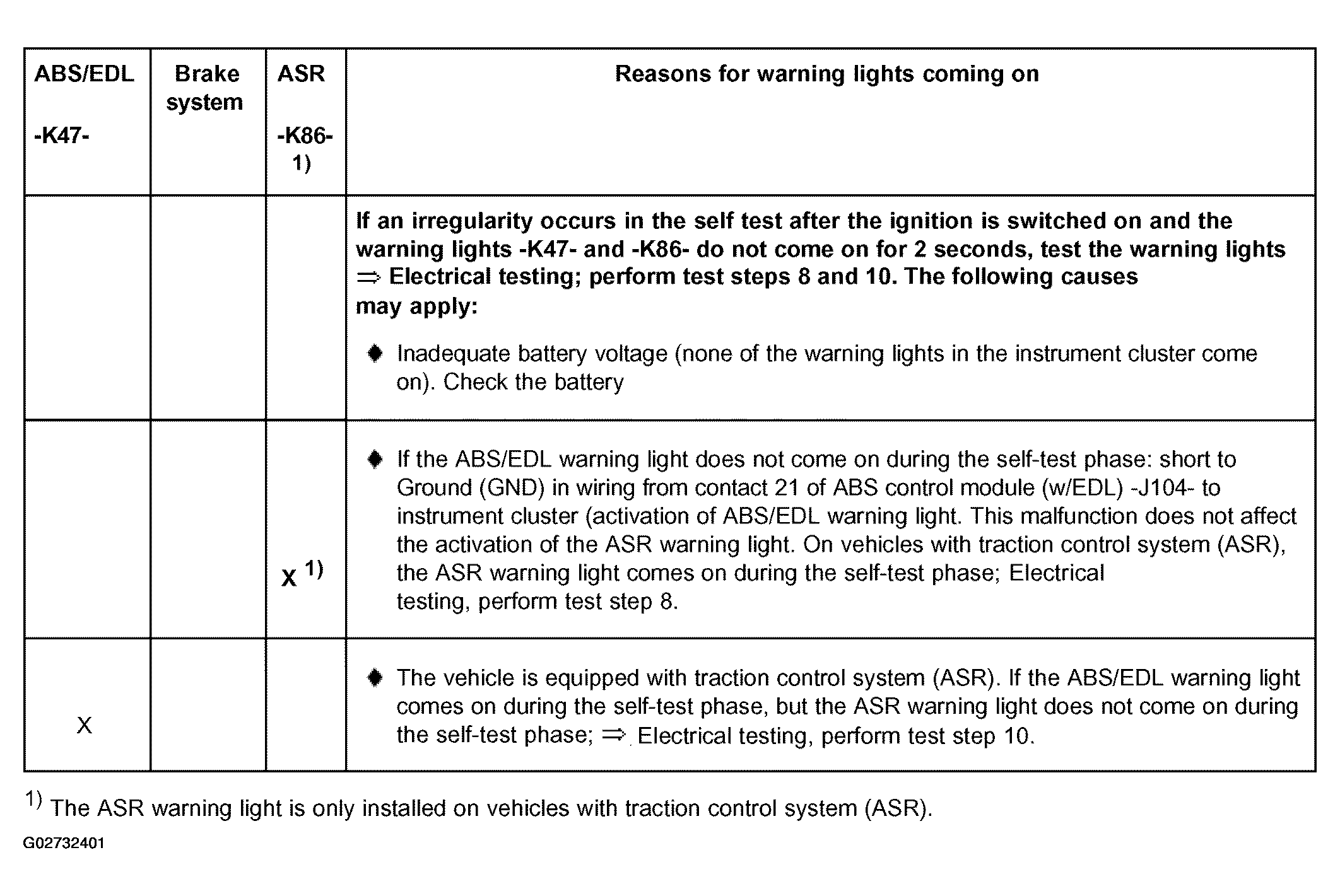

- For electrical testing, see ELECTRICAL TESTING .

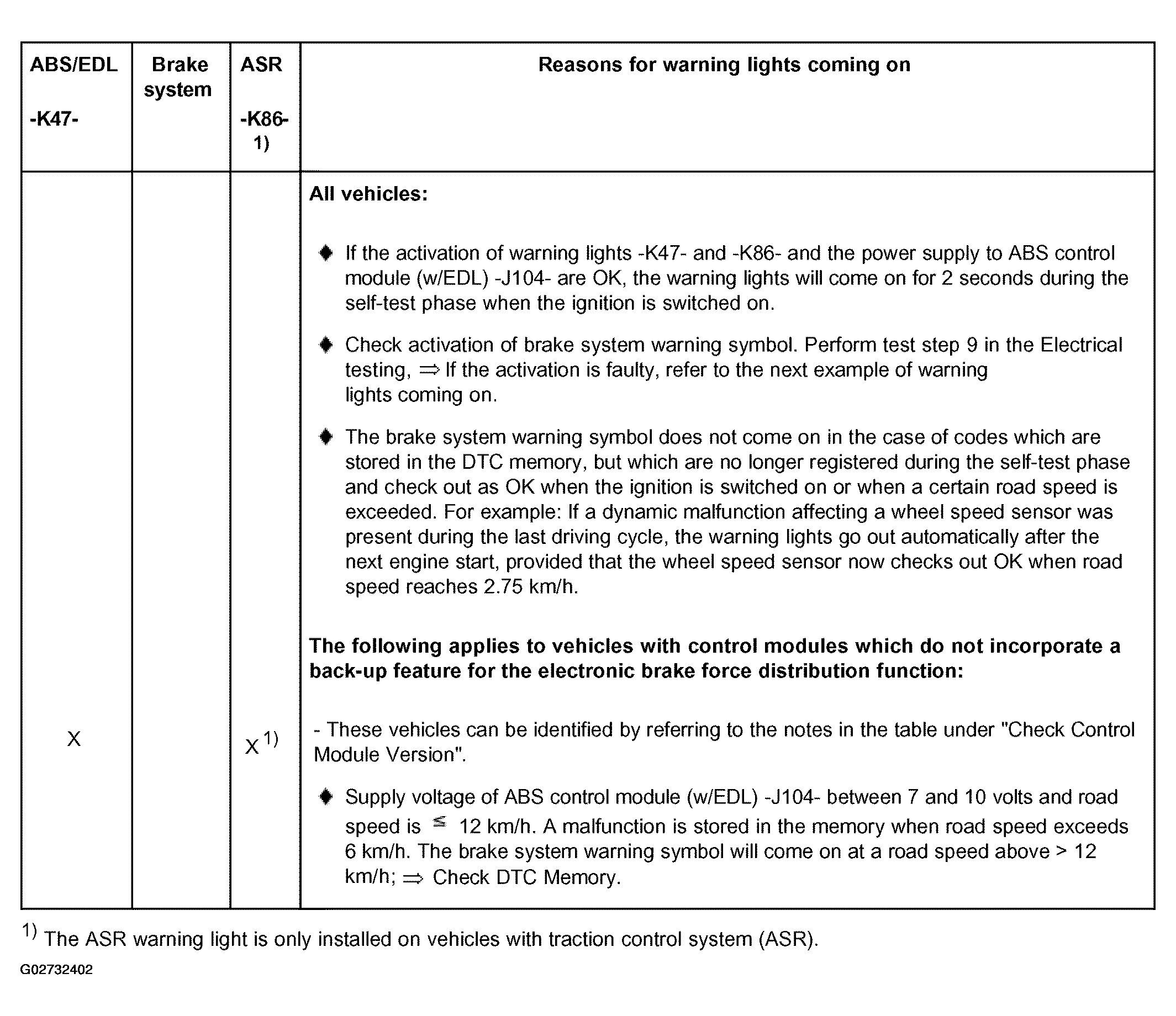

- For electrical testing, see ELECTRICAL TESTING .
- For check control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
- To check DTC memory, see ABS, EDL AND ABS, EDL, ASR DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

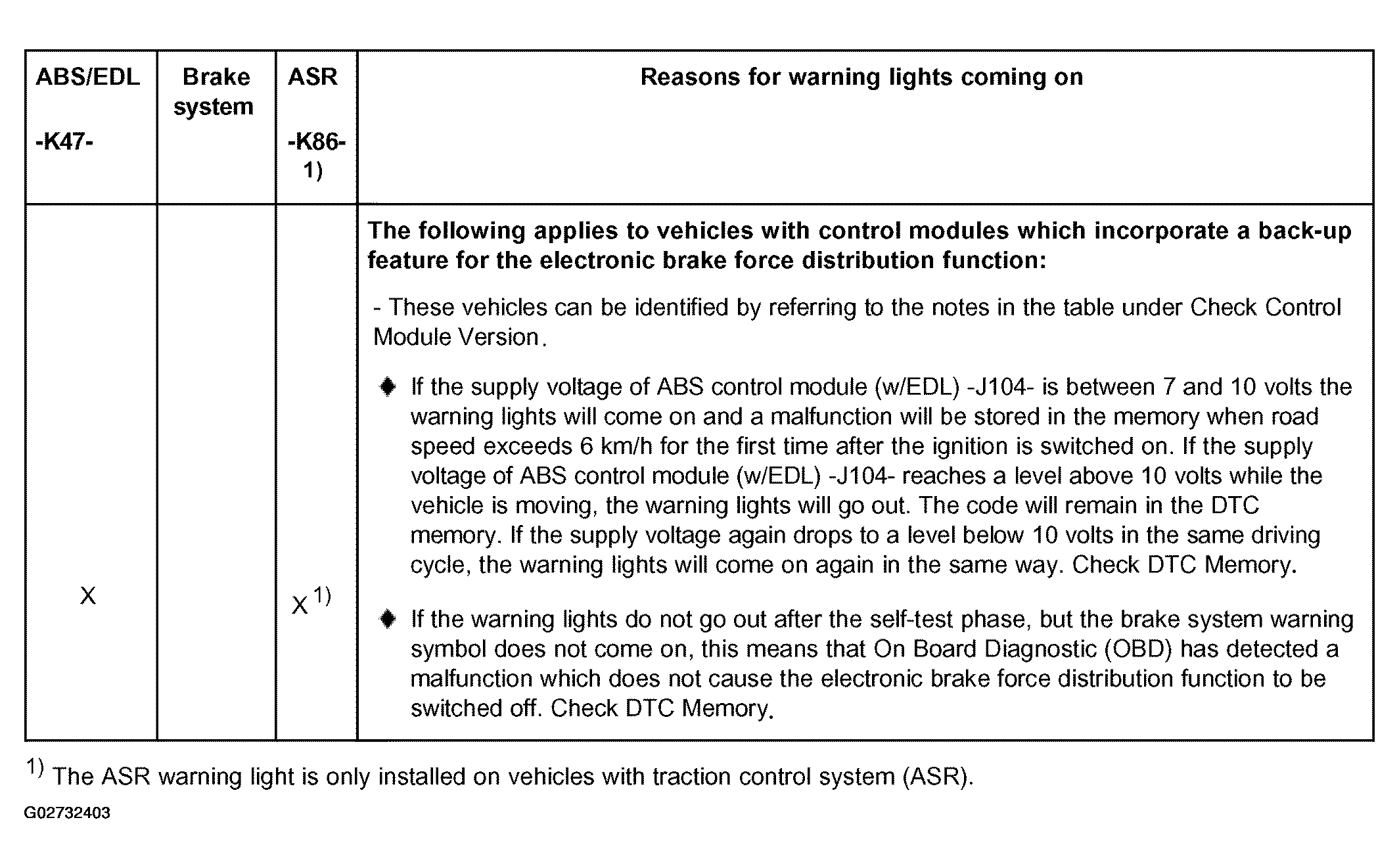

- For check control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
- To check DTC memory, see ABS, EDL AND ABS, EDL, ASR DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

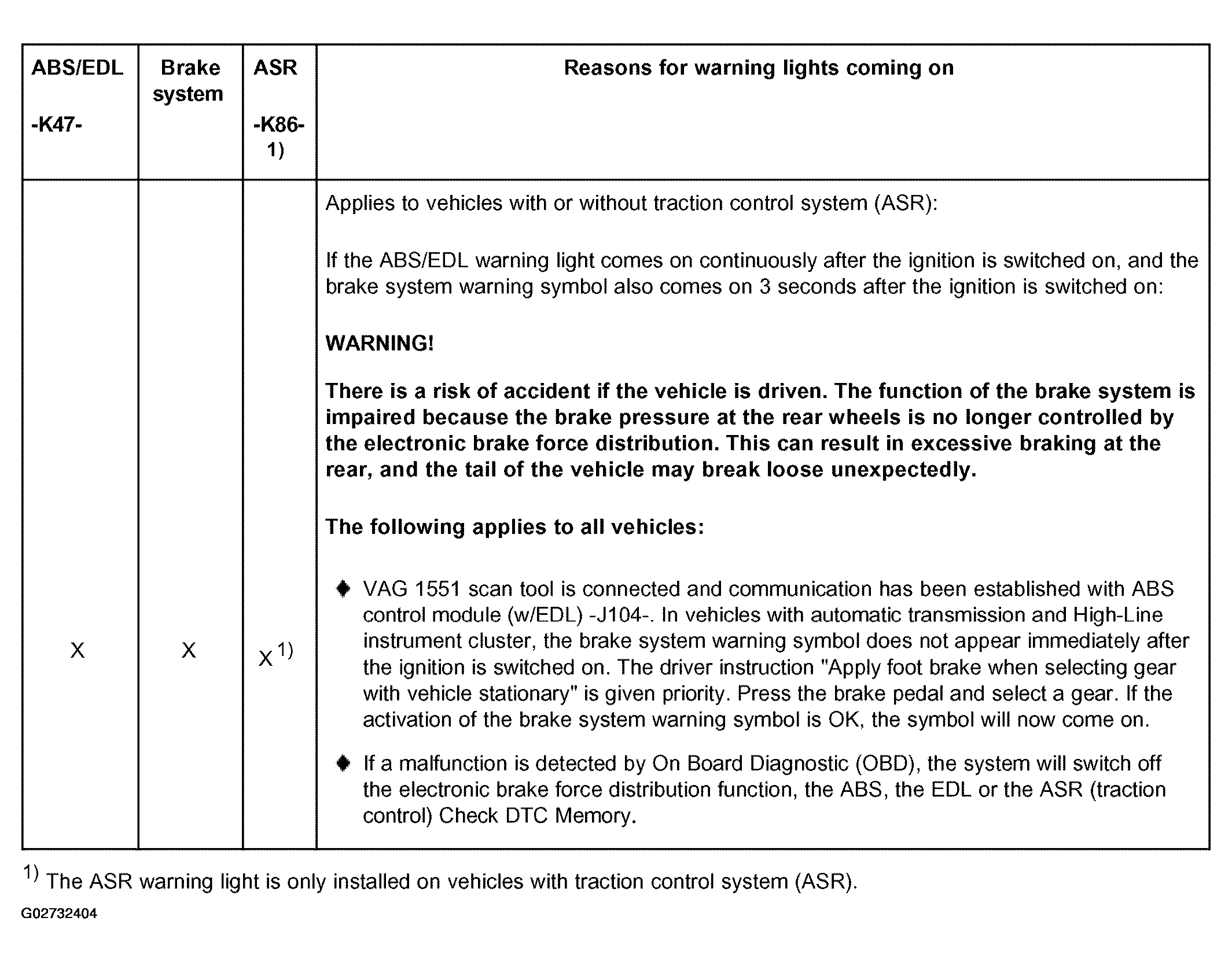

- To check DTC memory, see ABS, EDL AND ABS, EDL, ASR DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

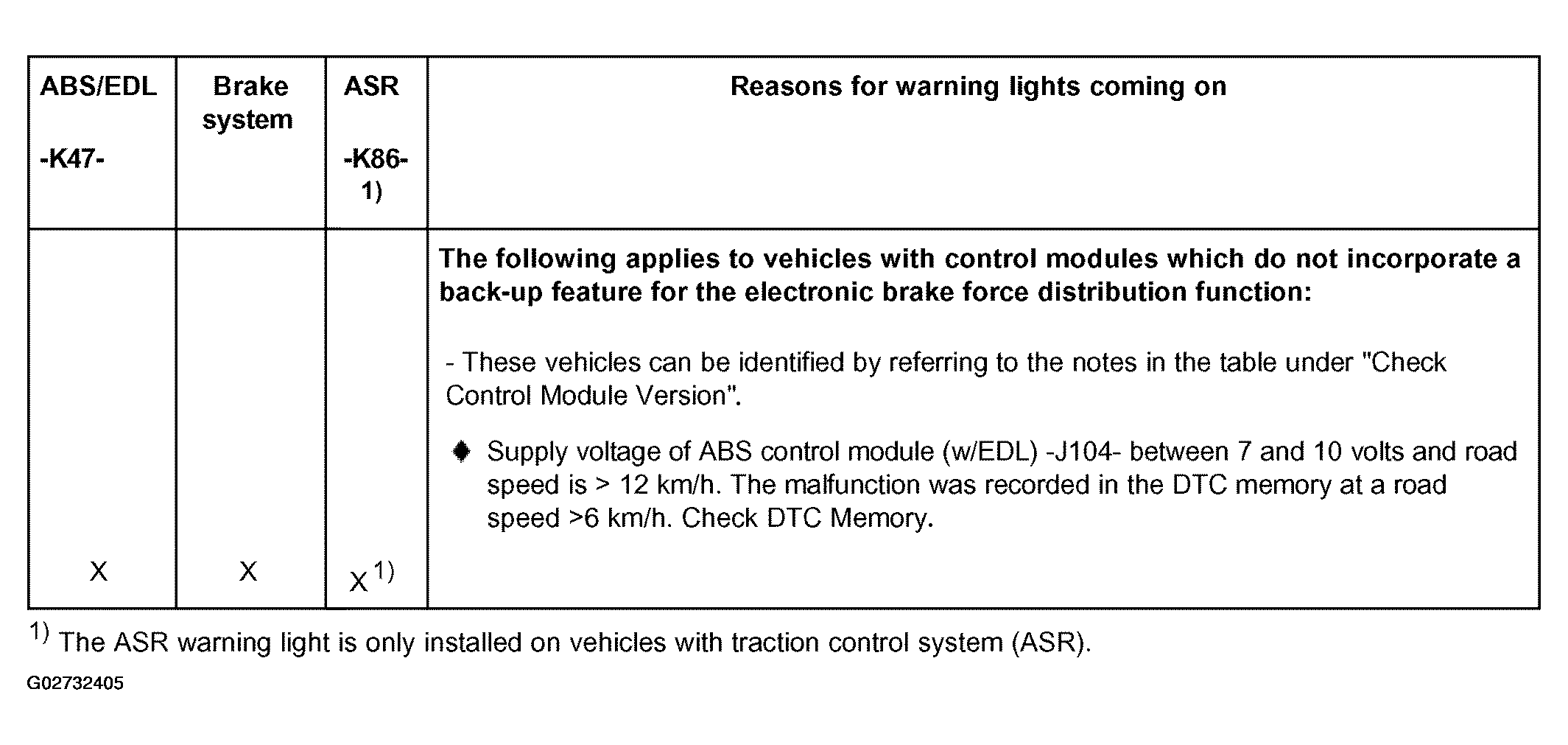

- For check control module version, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .
- To check DTC memory, see ABS, EDL AND ABS, EDL, ASR DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

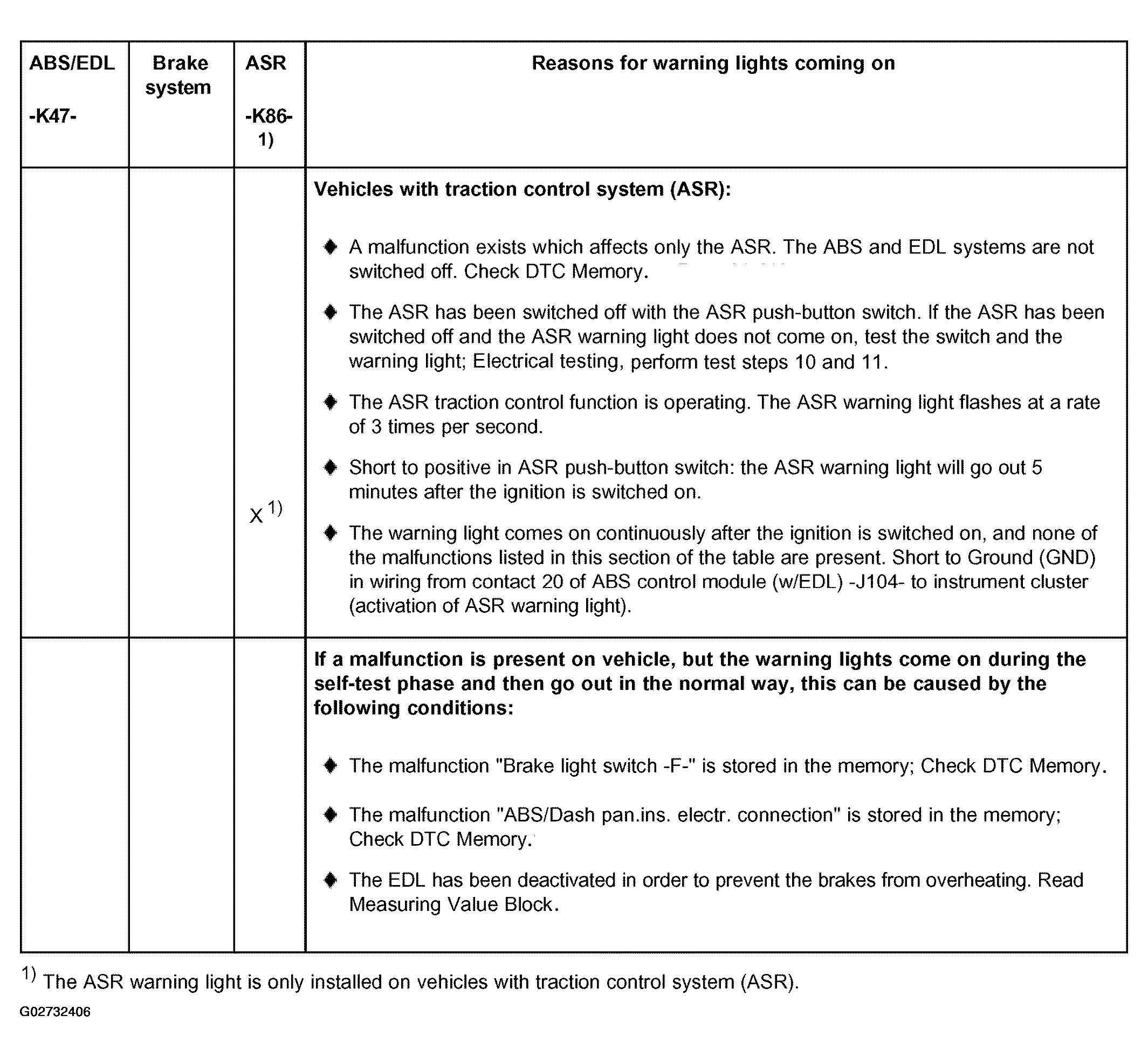

- To check DTC memory, see ABS, EDL AND ABS, EDL, ASR DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .
- For electrical testing, see ELECTRICAL TESTING .
- For measuring value blocks, see READ MEASURING VALUE BLOCK (FUNCTION 08) .

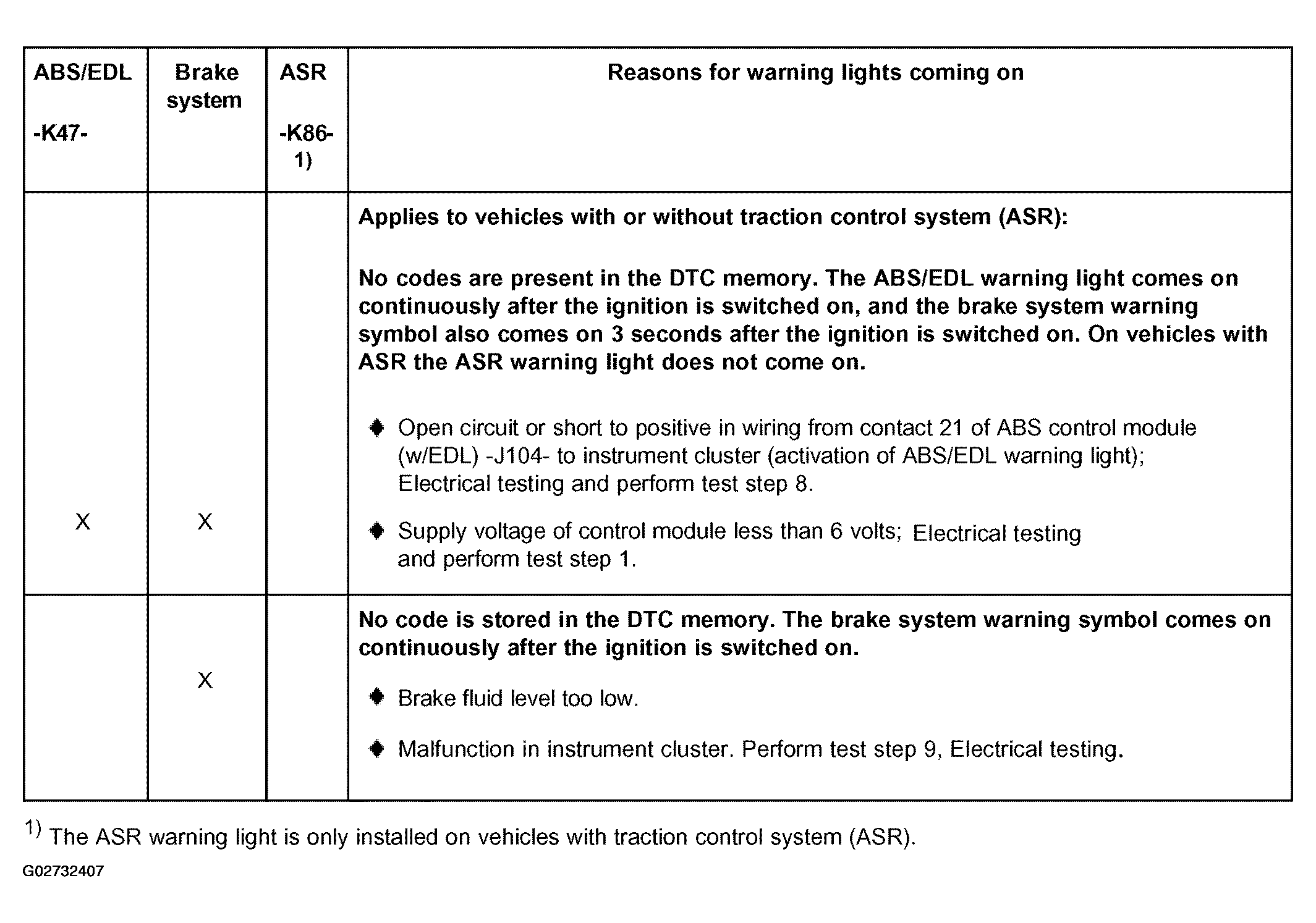

- For electrical testing, see ELECTRICAL TESTING .
