Read measuring value block: display group 3

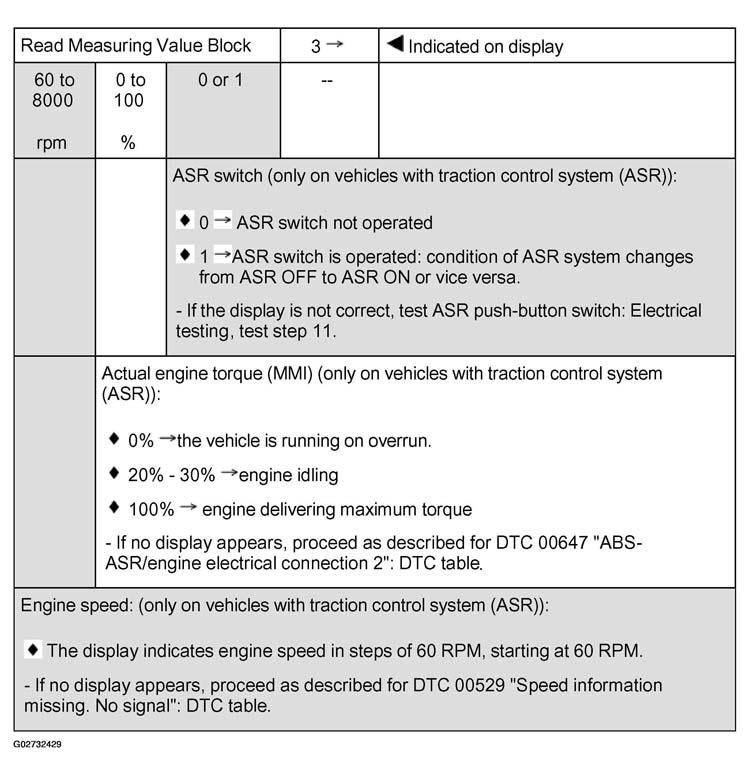

Fig 1: Read Measuring Value Block Chart (Display Group 3)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .
For DTC table, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

NOTE: The display group numbers can be selected in sequence by pressing buttons -1- and -3- ((VAG 1551 scan tool) or buttons uparrow and downarrow ((VAG 1552 scan tool).

Press button -C- in order to enter the display group number manually.

Indicated on display

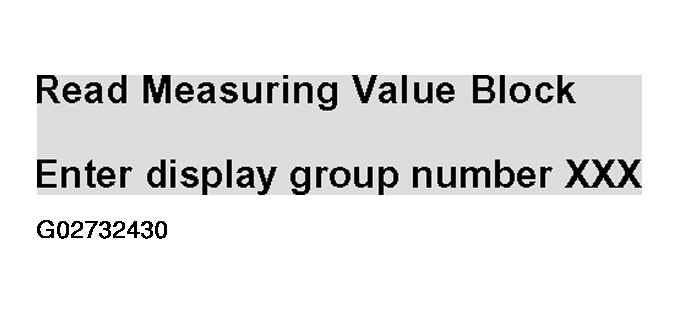

Fig 2: VAG 1551 Scan Tool Display - Enter Display Group Number XXX

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -4-.
Press -Q- button to confirm input.
