Upper A-pillar trim, removing and installing

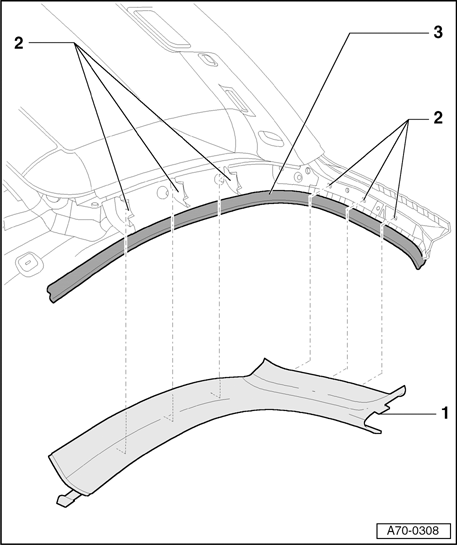

Fig 1: Upper A-Pillar Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Upper A-pillar trim

• Removing

• Unclip upper C-pillar trim in area of upper A-pillar trim - 1  - → Upper C-pillar trim, removing and installing .
• Unclip upper A-pillar trim - 1  - starting at the top.
• Lift out upper A-pillar trim upward - 1  -.

• Installing

• First push upper A-pillar trim - 1  - between instrument panel and A-pillar.
• Clip in trim - 1  - and position door seal - 3  - over A-pillar trim.

2 - Mountings

3 - Seal

• After installing, ensure seal is correctly fitted
