Upper C-pillar trim, removing and installing

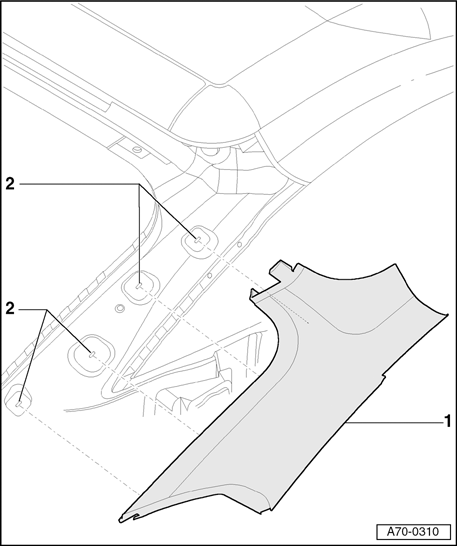

Fig 1: Upper C-Pillar Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - C-pillar trim

• Removing

• Remove side trim → Rear side trim, removing and installing .
• Unclip roof rail trim in area of upper C-pillar trim - 1  - → Roof rail trim .
• Unclip upper C-pillar trim - 1  -.
• Detach luggage compartment trim from upper C-pillar trim - 1  -.

• Installing

• Fasten upper C-pillar trim - 1  - in mountings - 2  - (4x).

2 - Mountings
