Backrest cover from padding, separating: Notes

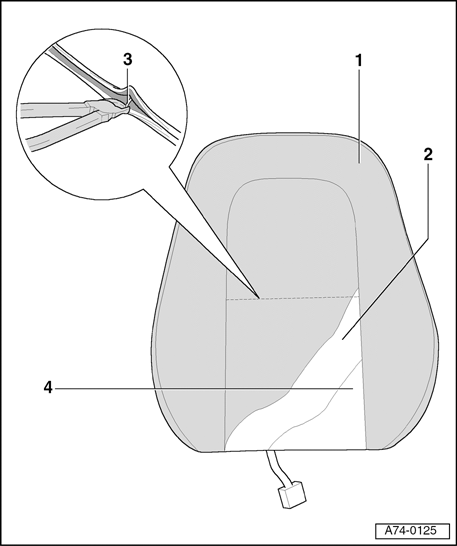

Fig 1: Separating Backrest Cover From Padding

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Backrest cover

• Removing

• Lift fabric - 1  - and cut through staples - 3  -.
• Remove backrest heating - 2  - → Backrest heating element (glued), removing and installing .
• Detach cover from padding.

• Installing

• Use upholstery stapler V.A.G 1634/ to install new staples.
• To facilitate assembly, push back longitudinal rods as far as first transverse rod.
• When installing, staple transverse rods first, then longitudinal rods.

2 - Backrest heating

3 - Staples

4 - Padding
