Backrest heating element (glued), removing and installing

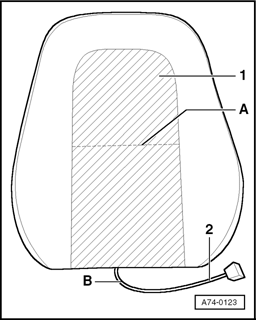

Fig 1: Backrest Heating Element (Glued) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove seat → Seat, removing and installing .
• Remove backrest cover → Backrest cover and padding, removing and installing .
• Cut electrical wire - 2  - off old heating element - 1  -.
• Glue new heating element onto old heating element (avoid creases).

• Insert heating element into folds at locations marked - A  -.
• Insert wire - 2  - into slot - B  - provided.
