Outer rear seat hinge, removing
NOTE:

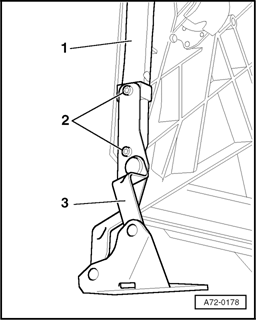

- Seat cover and padding not shown for better illustration.
- Remove left or right section of backrest → Rear seat backrest, removing and installing .
- Remove seat cover and padding from backrest - 1 - in area of hinge - 3 - (without removing seat belt trim) → Fabric cover and padding for split rear backrest, removing and installing .
- Pull up seat cover and padding.
- Remove screws - 2 - (2x).
- Tightening torque 7.5 Nm
