Seat frame, removing

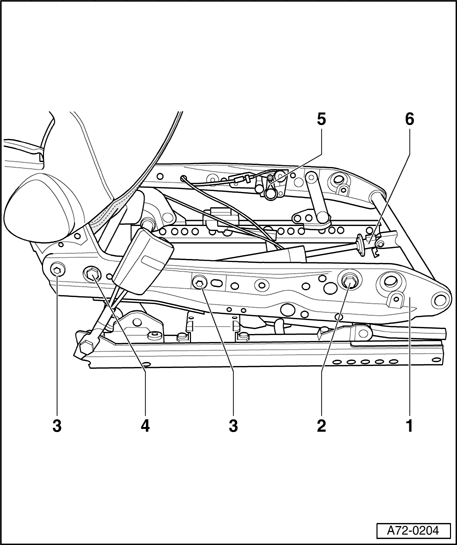

Fig 1: Seat Frame Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat frame

• Remove seat → Seat, removing and installing .
• Remove spring trim → Spring trim, removing .
• Remove side trim → Side trim, removing .
• Remove seat cushion → Removing and installing seat cushion .

• Detach gas-filled strut - 6  - from seat frame (front) → Gas-filled strut, removing .
• Detach seat-height adjustment unit - 5  - from seat frame → Seat height adjustment unit, removing .
• Remove screws - 2  - (2x).
• Remove screws - 3  - (4x).

• Remove screws - 4  - (2x).
• Remove seat frame.

2 - Screws (2x)

• Tightening torque 20 Nm

3 - Screws (4x)

• Tightening torque 35 Nm

4 - Screws (2x)

• Tightening torque 25 Nm

5 - Seat-height adjustment unit

6 - Gas-filled strut mounting
