Upper A-pillar trim, removing and installing

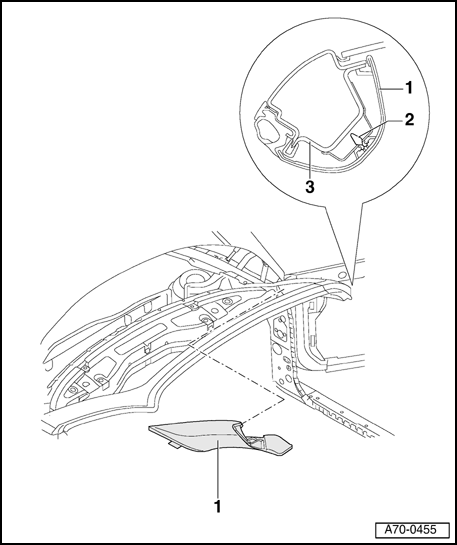

Fig 1: Upper A-Pillar Trim Remove/Install Components

GW00016773

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Upper A-pillar trim

Remove sun visors → Sun visor, removing and installing .
Remove roof frame trim → Roof frame trim, removing and installing .
Remove upper trim - 1 - from A-pillar starting with clips - 2 -.
Remove trim - 1 - upward.

2 - Clips (4x)

3 - A-pillar
