Sun visor, removing and installing

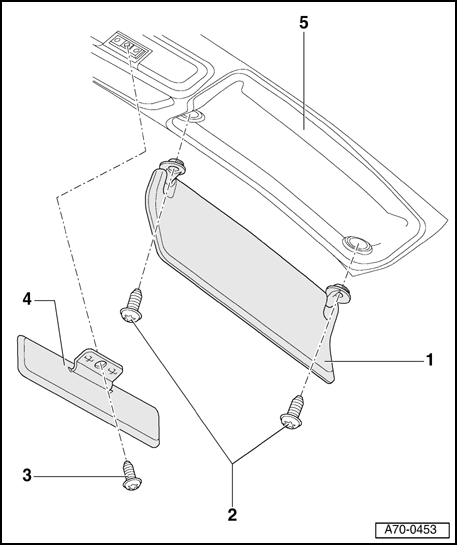

Fig 1: Sun Visor Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Sun visor

• Remove front interior light Removing interior lights
• Fold sun visors into open position.
• Remove bolts - 2  - (2x).
• Disconnect harness connector for sun visor.

2 - Bolts (2x)

• Tightening torque 1.5 Nm

3 - Bolt (1x)

• Tightening torque 1.5 Nm

4 - Center sun visor

• Fold sun visors into open position.
• Remove bolt - 3  - (1x).

5 - Roof frame trim
