Roof frame trim, removing and installing: Notes

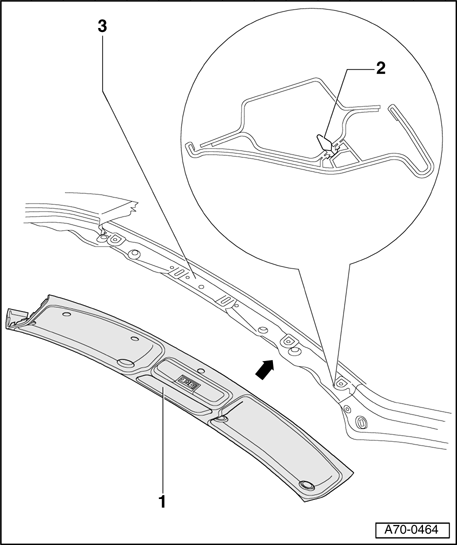

Fig 1: Roof Frame Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Roof frame trim

• Arrow points in direction of travel
• Removing

• Remove front interior light Removing interior lights
• Remove outer sun visors → Sun visor, removing and installing .
• Remove center trim - 1  - from roof frame - 3  - , starting with clips - 2  -.

• Installing

• Ensure engagement in A-pillar.

2 - Clips (6x)

3 - Roof frame
