Rear panel cover: Notes

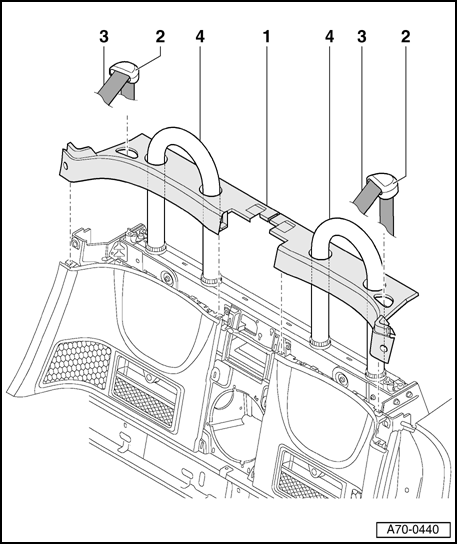

Fig 1: Rear Panel Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear panel cover

• Remove rear panel center trim → Center rear panel trim, removing and installing .
• Tape off roll bar up to bend using adhesive tape.
• Disconnect harness connectors.
• Removing collar for roll bar Disengaging collar for roll bar

• Disengage trim - 1  - from roll bar crossmember and rear panel trim, starting in the center using a screwdriver.
• Insert a wedge between rear panel cover and crossmember for roll bar.
• Remove rear panel side trim → Side trim of rear panel .
• Remove roll bar → Roll bar, removing and installing .

2 - Seat belt cover

3 - Belt

4 - Roll bar
